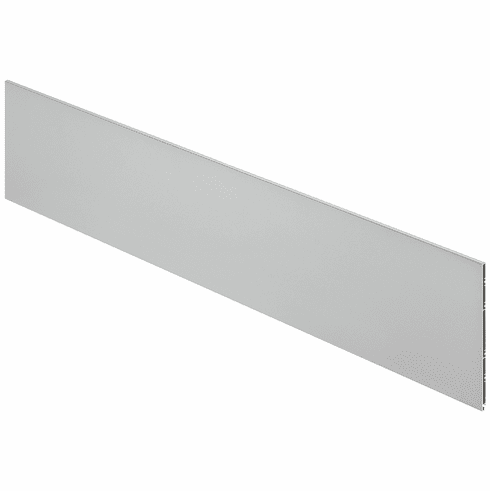

Hafele 551.89.919 Nova Pro Scala Front Panel, inset, 186mm x 1160mm, silver, aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 551.89.919

  Product Title: Internal panel, F8, Grass Nova Pro Scala, for internal pull out, drawer side height 186 mm, Silver

  Category: Internal panel, F8, Grass Nova Pro Scala, for internal pull out, drawer side height 186 mm,

  Item Details …

  - Length : 1,160.00 mm

  - Length (inch) : 45 11/16"

  - For cabinet width : 1,200.00 mm

  - Suitable for : Drawer side runner system Grass

  - Area of application : For side panel thickness 19 mm

  - Material : Aluminum

  - Installation : Hooks must be screwed inpanel must be cut to sizelength = internal cabinet width – 8 mm

  - Height : 197.00 mm

  - Height (inch) : 19 3/8"

  - Installation reference : installation dimensionThe specifications for the internal installation height and installation dimensions of the rear panel are identical to those of the pull out for door front fixing with drawer side height of 186 mm.min. internal installation depth = nominal length + 3 mm


  Additional Information …

  We recommend using 1 front base connector â’½ from a cabinet width of 600 mm and above.We recommend using 2 front base connector â’½ from a cabinet width of 800 mm and above.



  Hooks must be screwed inpanel must be cut to sizelength = internal cabinet width – 8 mm
