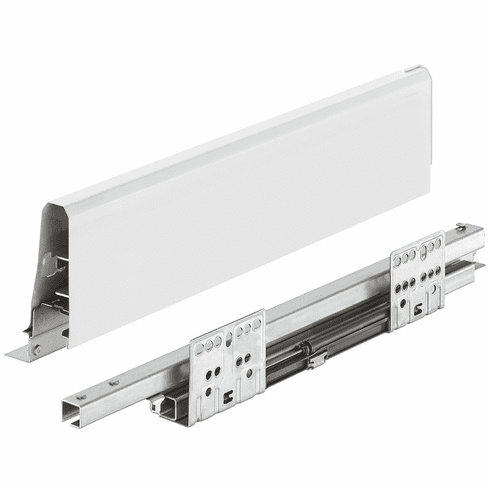

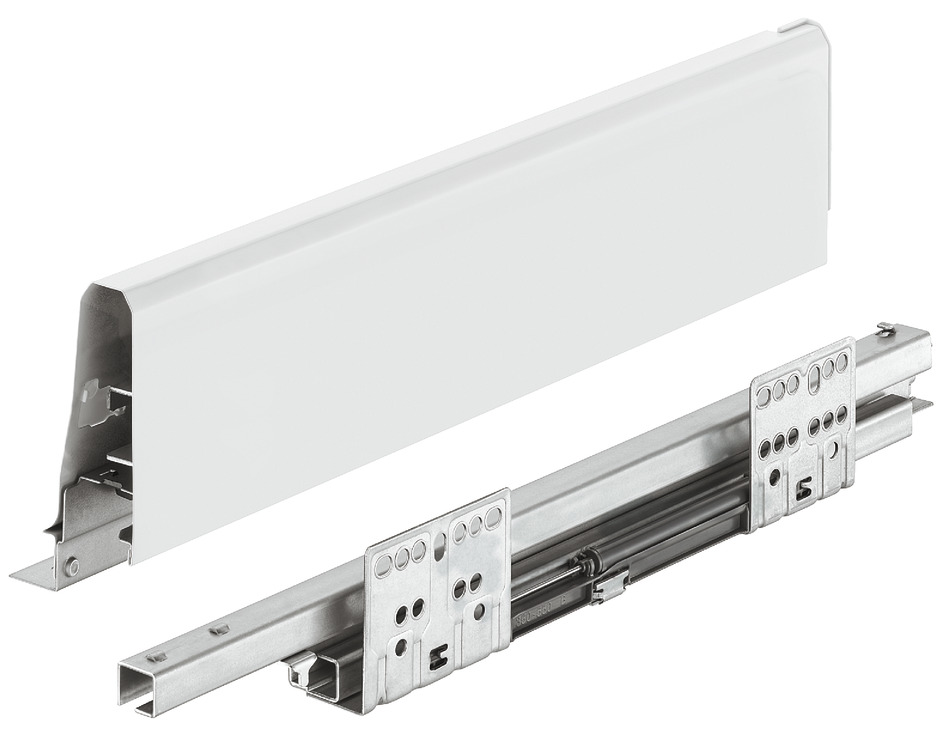

Hafele 552.07.745 Matrix Box S35, expanding dowel, white, drawer member 84x500mm with square railing, equals 199 height

Product Information

• Description

  Manufacturer: Hafele
  Item: 552.07.745

  Product Title: Drawer Set, Square Railing, Häfele Matrix Box S35, 120 mm Drawer Height, (19 11/16") 500 mm length; white

  Category: Drawer Set, Square Railing, Häfele Matrix Box S35, 120 mm Drawer Height,

  Item Details …

  - Version : Square railing, full extension, with integrated soft close

  - Color/finish : White, Drawer sides: powder coated; Slides: galvanized

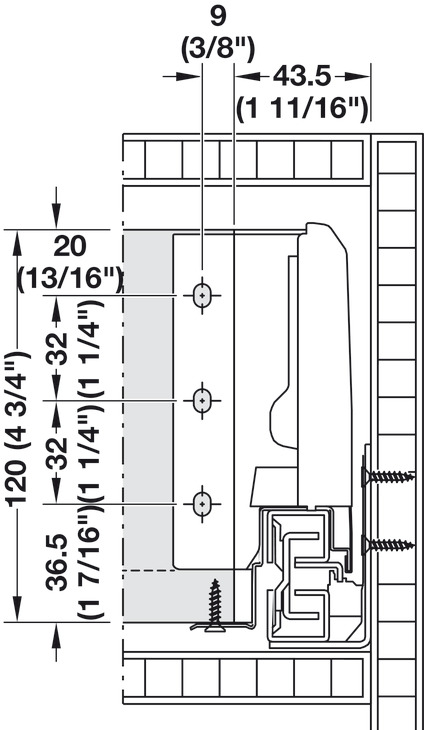

  - Drawer side height : 4 3/4" + 1 square railing = 7 7/8"

  - Height (inch) : Frame: 21"

  - Material : Steel

  - Load bearing capacity : 77 lbs

  - Installation : Front fix brackets snap into drawer sides, expanding dowel mounting on drawer front

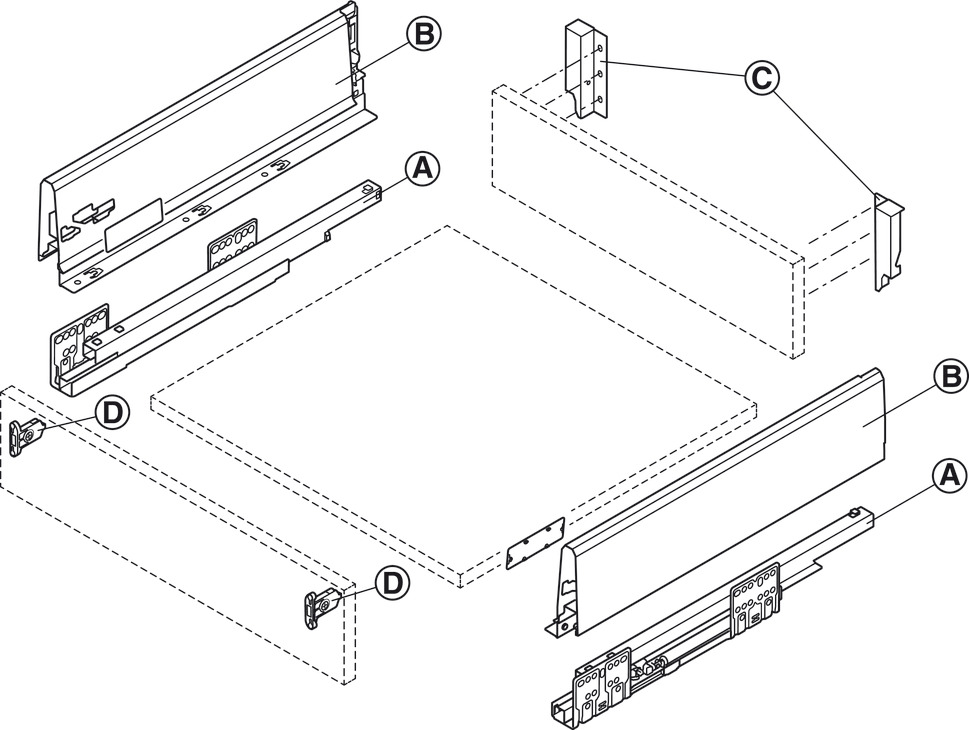

  - Supplied with:

  - 1 left and 1 right double-walled drawer side with rear panel fitting

  - 1 left and 1 right drawer slides

  - 1 left and 1 right front fixing bracket with expanding dowels

  - 1 left and 1 right rear panel fitting

  - 1 left and 1 right cover cap

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions

  Installation instructions

  Matrix Box S35 Mounting Instructions
