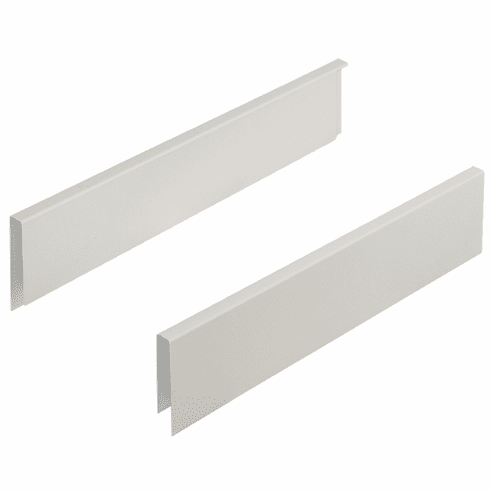

Hafele 553.60.806 Height Extension Panel, Matrix Box P Length 550 mm (21 5/8"), champagne

Product Information

• Description

  Manufacturer: Hafele
  Item: 553.60.806

  Product Title: Height Extension Panel, Häfele Matrix Box P, For pull out for door front fixing, Length 550 mm (21 5/8"), champagne

  Category: Height Extension Panel, Häfele Matrix Box P, For pull out for door front fixing

  Item Details …

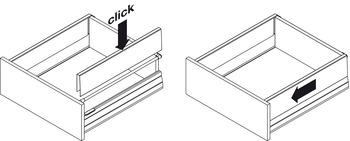

  - Quickly and simply extends the height of the drawer by clipping over the round railing and onto the drawer side profile

  - Panel finish matches perfectly to the profile

  - Color/finish : Champagne colored

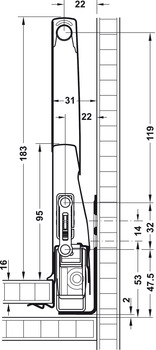

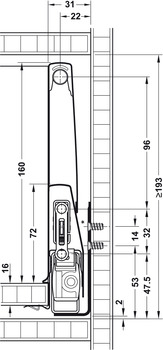

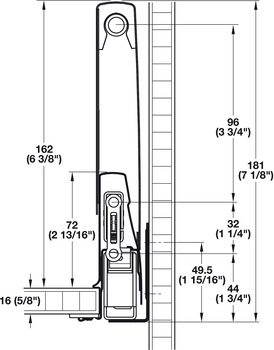

  - Area of application : For increasing the height of the enclosed internal space of the pull-out to 115 or 162 mm

  - Model series : Moovit Panel

  - Material : Steel

  - Installation : For clip fixing to railing and drawer sides (attaching the Moovit Panels increases the height by 90 mm)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Moovit with Matrix

  Installation instructions for Moovit drawer

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.13



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.7-8.7.pdf

  Hafele 553.60.806, 553-60-806, 55360806, 553.60


  Specifications/Hafele Catalog - Page# FC8.7: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Railing Set, Round, Häfele Matrix Box P
