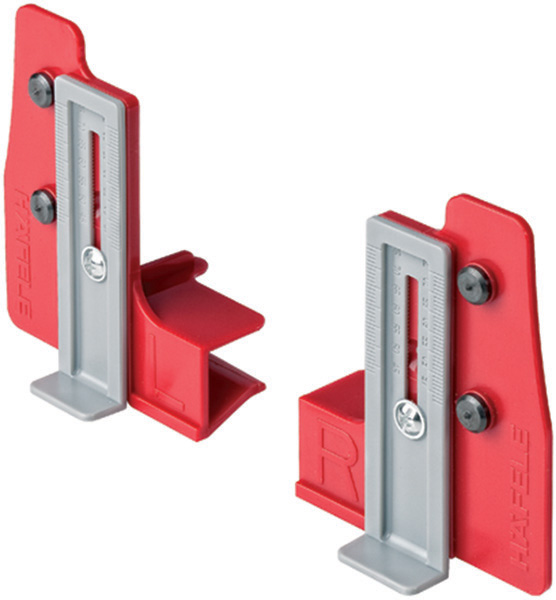

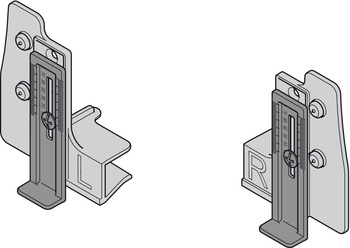

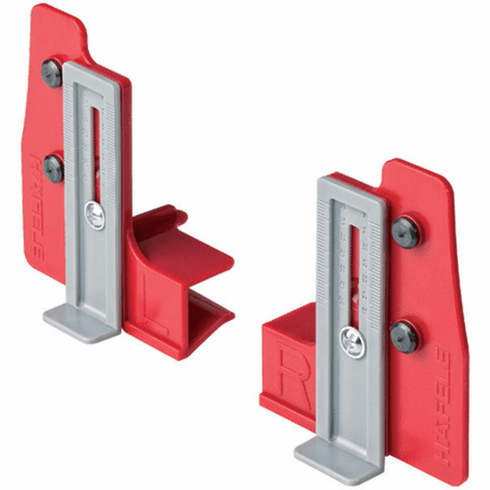

Hafele 553.69.035 Marking Gauge, Matrix Box P For front fixing brackets

Product Information

• Description

  Manufacturer: Hafele
  Item: 553.69.035

  Product Title: Marking Gauge, Häfele Matrix Box P, For 16/18 mm drawer bases, For front fixing brackets

  Category: Marking Gauge, Häfele Matrix Box P, For 16/18 mm drawer bases, For front fixing brackets

  Item Details …

  - For 16 mm drawer bases

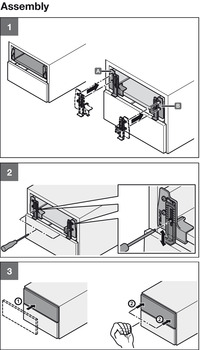

  - For mounting drawer fronts after the drawer box has been installed in the cabinet, with vertical adjustment

  - For marking fixing points of MX front fixing brackets

  - Horizontal gap between drawer fronts can be individually altered by vertically shifting the angled support bracket

  - Product type : Marking Gauge

  - Area of application : for easy marking of drill holes on front panel, compatible with 16 mm and 18 mm drawer base panels

  - Material : Plastic; Marking pins: steel, zinc-plated

  - Color/finish : Gray/red

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for Matrix Box P

  Matrix P | The ultimate drawer system

  Matrix P Installation, Adjustment and Removal

  TCH_Furniture_Cabinetry_Hardware_2022| Page 8.10



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.9-8.9.pdf

  Hafele 553.69.035, 553-69-035, 55369035, 553.69


  Specifications/Hafele Catalog - Page# FC8.9: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
