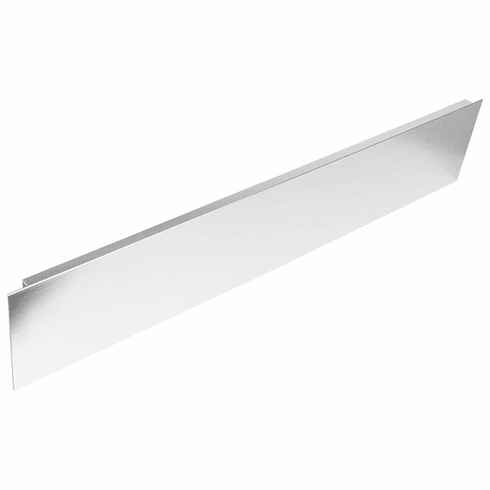

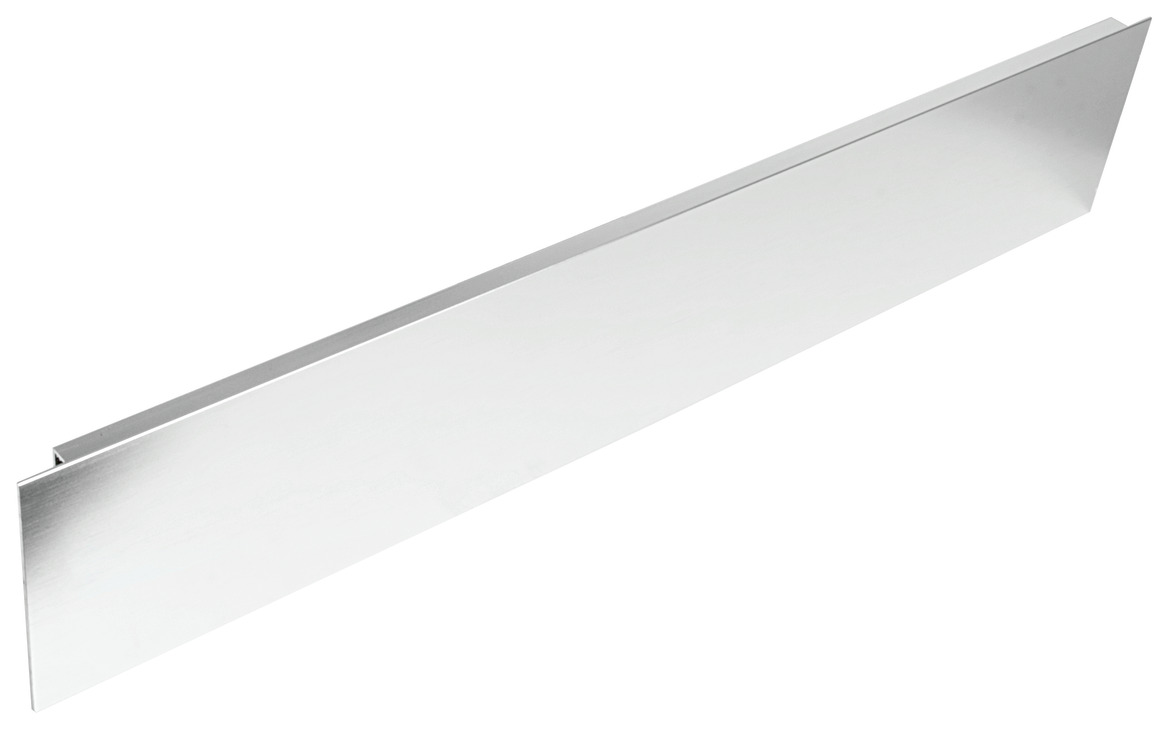

Hafele 555.83.514 Salice Lineabox, aluminum side profile, AMUMXDG0533GP gray, 101mm height x 533mm length

Product Information

• Description

  Manufacturer: Hafele
  Item: 555.83.514

  Product Title: Double-Wall Drawer System Frame, Drawer side height 101 mm (4"), Lineabox, Salice, Length (21") 533 mm, gray

  Category: Double-Wall Drawer System Frame, Drawer side height 101 mm (4"), Lineabox, Salice,

  Item Details …

  - 16 mm (5/8") bottom, back and sub-front material

  - Metal drawer system with clean, simple lines and minimal wall thickness to maximize internal space

  - Sides are notched front and back for a completely finished appearance without the need for "short-edge" edgebanding

  - Lifetime warranty

  - Drawer side height : 101.00 mm

  - Drawer side height : 4"

  - Material : Aluminum

  - Order reference

  - Parts are sold as pieces, not pairs.

  - Supplied with:

  - 12 pcs./box (makes 6 drawers) - members are non-handed


  Additional Information …

  Requires 4 front/back fixing clips.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.41A



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Front Fixing, for Salice Lineabox (choose one):


  • Screw (2 x ø3.5 mm x 20 mm) (supplied) Dowel (5 mm)

    555.82.310 555.82.313

    Click to order Click to order



  Optional Accessories:



  • Salice Progressa+ Push Drawer Slide, Full Extension for 12 mm (1/2") to 16 mm (5/8") drawer material
  • Salice Progressa+ Smove Drawer Slide, Full Extension for 12 mm (1/2") to 16 mm (5/8") drawer material
  • Salice A7555 Futura 16 Slide, Full Extension, 75 lbs
