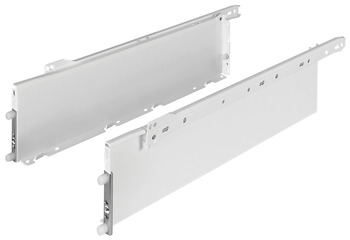

Hafele 558.21.847 Single-Wall Metal Drawer System, Grass Zargen 6136 (Side Height: 4 5/8") (18 1/2") 470 mm, length, model 22701-03

Product Information

• Description

  Manufacturer: Hafele
  Item: 558.21.847

  Product Title: Single-Wall Metal Drawer System, Grass Zargen 6136 (Side Height: 4 5/8"), (18 1/2") 470 mm, length, model 22701-03

  Category: Single-Wall Metal Drawer System, Grass Zargen 6136 (Side Height: 4 5/8"),

  Item Details …

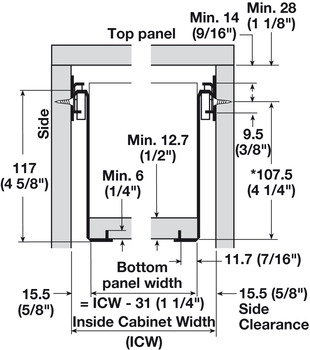

  - Allow minimum of 3 mm (1/8”) for bottom clearance. If screws are used, increase clearance accordingly.

  - Drawer slide attachment: Wood screws #6 x 5/8 FHP; Euro screw for 5 mm system holes

  - Bottom panel length = slide length - panel thickness - 3 mm

  - Bottom panel width = ICW - 31 (1 1/4")

  - Made in the USA

  - Quick assembly through dowelled and integrated front fixing brackets

  - Height (inch) : 7 9/16"

  - Color/finish : White

  - Comfort functions opening/closing : Self close

  - Comfort function type : Soft-close

  - For min. panel thickness : Back: 5/8"; Bottom: 1/2"

  - For max. panel thickness : Back: 3/4"; Bottom: 3/4"

  - Material : Steel

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : 100 lbs

  - Order reference

  - 558.21.852 is bulk packaging, which consists of 200 sets and is a full skid.

  - Supplied with:

  - 5 Sets

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.45



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.19-8.21.pdf

  Hafele 558.21.847, 558-21-847, 55821847, 558.21


  Specifications/Hafele Catalog - Page# FC8.73: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Full Extension Member, for Grass Zargen Single-Wall Metal Drawer System
  • Soft Closet Damper Set, for Grass Zargen
