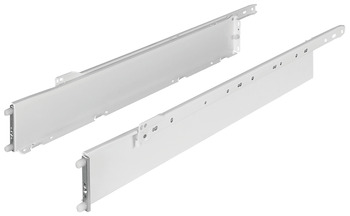

Hafele 558.27.727 Single-Wall Metal Drawer System, Grass Zargen 6036 (Side Height: 3 3/8") (10 5/8") 270 mm length, model 11895-04

Product Information

• Description

  Manufacturer: Hafele
  Item: 558.27.727

  Product Title: Single-Wall Metal Drawer System, Grass Zargen 6036 (Side Height: 3 3/8"), (10 5/8") 270 mm length, model 11895-04

  Category: Single-Wall Metal Drawer System, Grass Zargen 6036 (Side Height: 3 3/8"),

  Item Details …

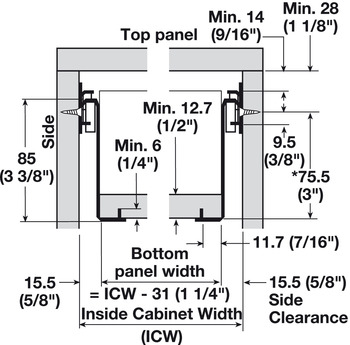

  - Allow minimum of 3 mm (1/8”) for bottom clearance. If screws are used, increase clearance accordingly.

  - Drawer slide attachment: Wood screws #6 x 5/8 FHP; Euro screw for 5 mm system holes.

  - Bottom panel length = slide length - panel thickness - 3 mm.

  - Bottom panel width = ICW - 31 (1 1/4")

  - Made in the USA

  - Quick assembly through dowelled and integrated front fixing brackets

  - Height (inch) : 20 1/4"

  - Color/finish : White

  - Comfort functions opening/closing : Self close

  - Comfort function type : Soft-close

  - For min. panel thickness : Back: 5/8"; Bottom: 1/2"

  - For max. panel thickness : Back: 3/4"; Bottom: 3/4"

  - Material : Steel

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : 100 lbs

  - Supplied with:

  - 10 Sets

  - **Bulk packing is 300 sets

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.45



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.19-8.21.pdf

  Hafele 558.27.727, 558-27-727, 55827727, 558.27


  Specifications/Hafele Catalog - Page# FC8.73: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Full Extension Member, for Grass Zargen Single-Wall Metal Drawer System
  • Soft Closet Damper Set, for Grass Zargen
