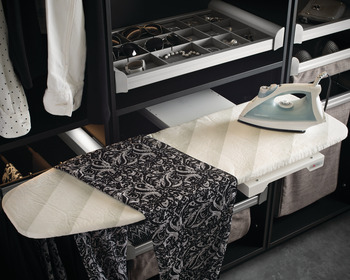

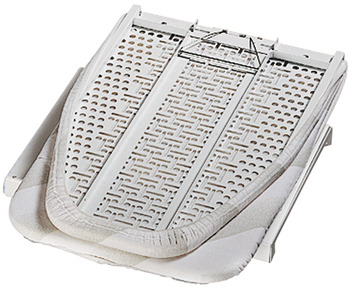

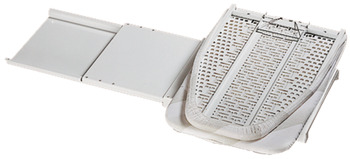

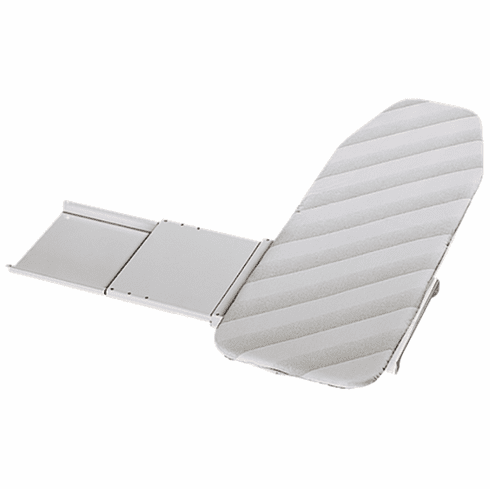

Hafele 568.60.781 Ironfix Ironing Board, Shelf-Mounted Rotates 180 degree, white RAL 9016

Product Information

• Description

  Manufacturer: Hafele
  Item: 568.60.781

  Product Title: Häfele Ironfix® Ironing Board, Shelf-Mounted, Rotates 180°, white RAL 9016

  Category: Häfele Ironfix® Ironing Board, Shelf-Mounted, Rotates 180°

  Item Details …

  - Due to the absence of ball bearing slides, clothing remains free from grease or pinch point damage.

  - Locks in left, right, or inclined position

  - Cover : White with grey stripes

  - Installation width : 550.00 mm

  - Installation height : 130.00 mm

  - Installation depth : 360.00 mm

  - Width (inch) : 20 1/2"

  - Depth (inch) : 13 3/4"

  - Height (inch) : 5 1/8"

  - Area of application : For installation in the drawer space of most standard base cabinets

  - Version : Shelf-mounted

  - Material : Fitting: steelCover: cotton

  - Features : FoldingRotates 180°, with 7 pre-set positionsIncludes heat-resistant cover

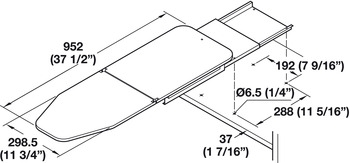

  - Extension length : 952.00 mm

  - Extension length : 37 1/2"

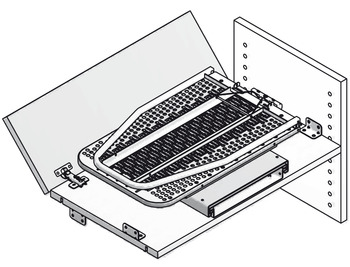

  - Mounting : Mounts to a shelf with through bolts

  - Installation : Fits into a 610 mm (24”) wide x 356 mm (14”) deep space

  - Supplied with:

  - Installation hardware

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Ironfix Shelf Mounting Instructions

  Ironfix Shelf Mounting Instructions Template

  Ironfix Shelf Mounting Instructions Template

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.144



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.92-4.95.pdf

  Hafele 568.60.781, 568-60-781, 56860781, 568.60


  Specifications/Hafele Catalog - Page# FC4.67: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Replacement Häfele Ironfix® Heat-Resistant Cover, For Ironing Board (568.60.710)
