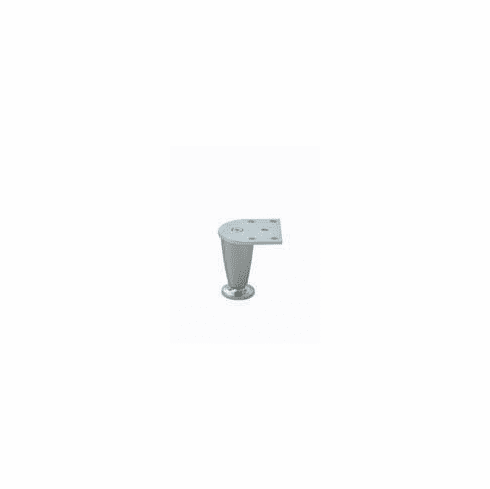

Hafele 634.28.201 Furniture Foot, Zinc, 75 mm (3") Polished chrome

Product Information

• Description

  Manufacturer: Hafele
  Item: 634.28.201

  Product Title: Furniture Foot, Zinc, 75 mm (3"), Polished chrome

  Category: Furniture Foot, Zinc, 75 mm (3"),

  Item Details �

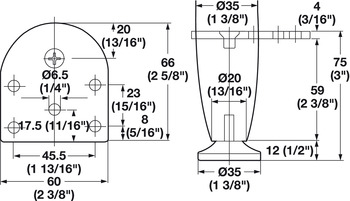

  - Height : 75.00 mm

  - Height (inch) : 3"

  - Adjustment facility : Levelers offer approximately 12 mm (1/2") of adjustment

  - Load bearing capacity : Per foot: Static load rating approx 110 lbs

  - Load bearing capacity : 50.00 kg

  - Material : Zinc die-cast, plated

  - Installation : Screw mounted

  - Installation reference : With steel mounting plate

  - Order reference

  - Feet on this page are priced per each

  - Minimum order quantity is 2 pcs

  - If 4 feet are required, please order 4 pcs

  - Supplied with:

  - 2 pcs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page�6.18



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.16-6.21.pdf

  Hafele 634.28.201, 634-28-201, 63428201, 634.28


  Specifications/Hafele Catalog - Page# FC6.18: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Zip-R Screw, Pan Head, #2 Square Drive
  • Spax� Screw, Pan Head Screw with Uni-drive, Zinc-Plated
