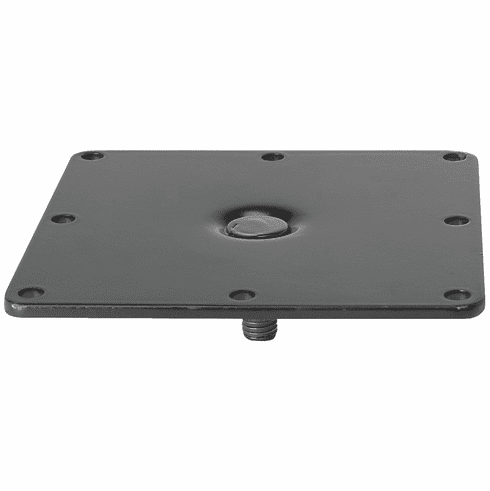

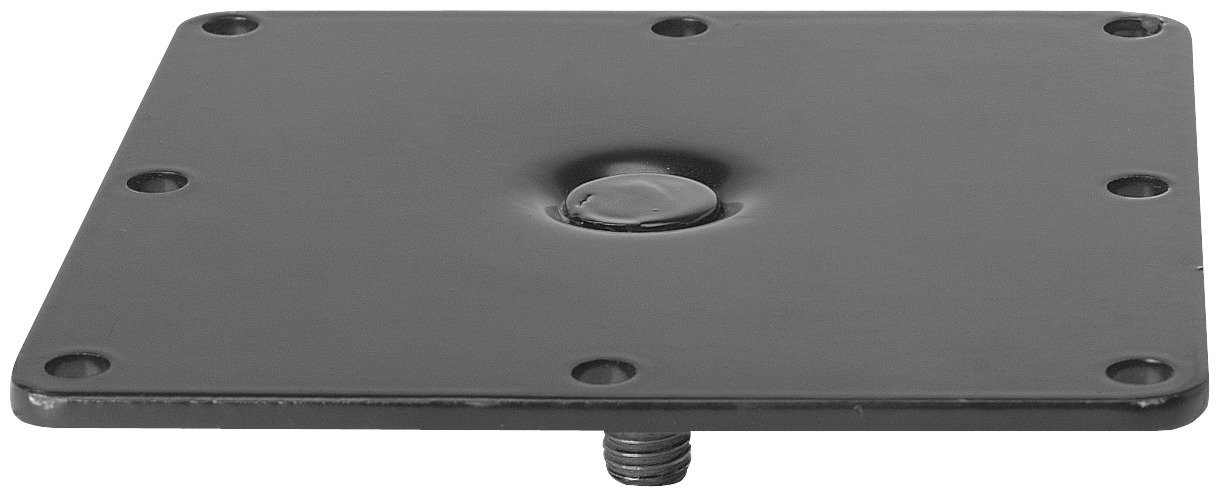

Hafele 635.06.015 Mounting Plate, 60 mm Component System M10 threaded stem

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.06.015

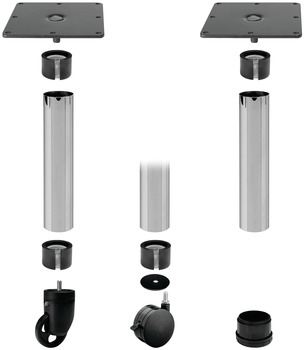

  Product Title: Mounting Plate Set, Ø60 mm Component System, For E-Legs

  Category: Mounting Plate Set, Ø60 mm Component System, For E-Legs

  Item Details …

  - Color/finish : Black, Epoxy-coated

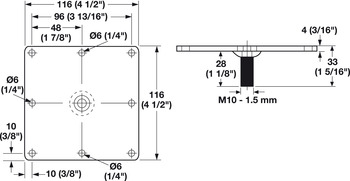

  - Height : 33.00 mm

  - Length : 116.00 mm

  - Material : Steel

  - Depth : 116.00 mm

  - Installation : Screw-mounted

  - Installation reference : With M10 stud

  - Supplied with:

  - 4 mounting plates

  - Mounting screws #9 x 1”

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.42
