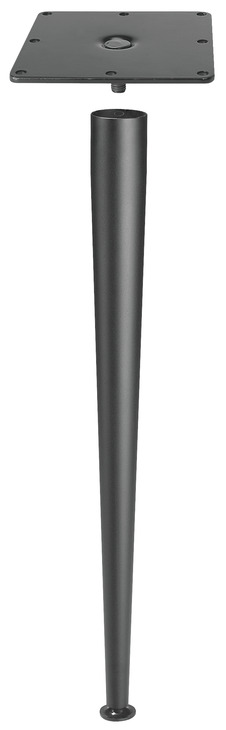

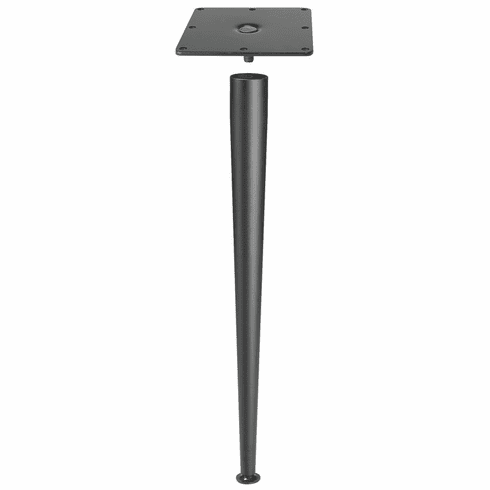

Hafele 635.37.277 E-Leg Tapered, steel, chrome-plated polished, 710mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.37.277

  Product Title: E-Leg, Tapered, 710 mm (28"), Polished chrome

  Category: E-Leg, Tapered, 710 mm (28")

  Item Details …

  - Diameter : 60.00 mm

  - Material : Legs: Steel, plated or epoxy-coatedLeveler: PlasticMounting plate: Steel

  - Adjustment facility : +10 mm (3/8”)

  - Load bearing capacity : Static load rating: 220 lbs

  - Load bearing capacity information : 100 kg per leg

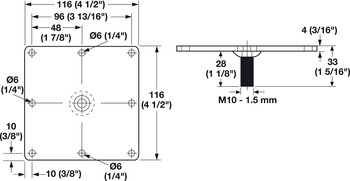

  - Installation : Leg screws into steel square mounting plate with M10 bolt

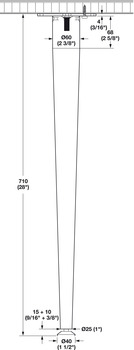

  - Installation reference : Leg screws into steel square mounting plate with M10 bolt Leg tapers from Ø60 to Ø25 mm (2 3/8” to 1”)

  - Supplied with:

  - 4 legs

  - 4 mounting plates

  - Levelers

  - Screws #9 x 1”

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.45
