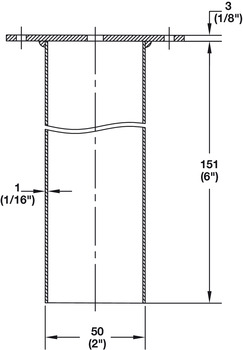

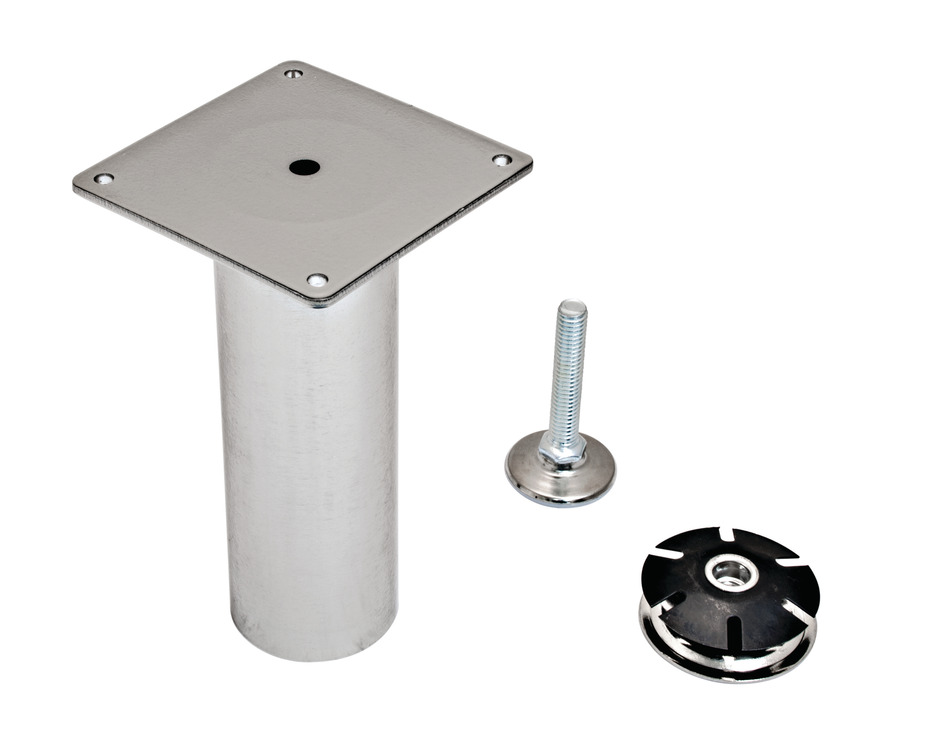

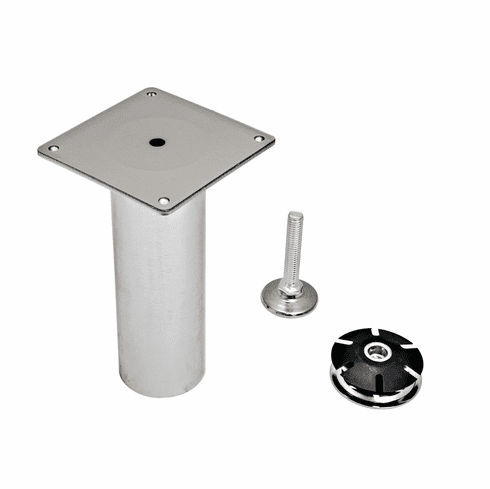

Hafele 635.48.060 Leg, 6" tall x 50mm diameter, brushed steel lacquer coated, with leveler kit

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.48.060

  Product Title: Garage Foot, 6" Height

  Category: Garage Foot,

  Item Details …

  - Specifically designed for demanding garage applications

  - Feet are coated with a special resin clear coat which is resistant to UV rays, and are salt spray tested to 200 hours vs 72 hours for typical lacquer coatings

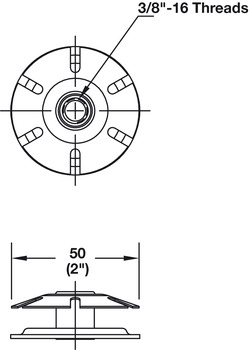

  - Feet can be cut to length if required, threaded star inserts are then pressed in and leveler is installed

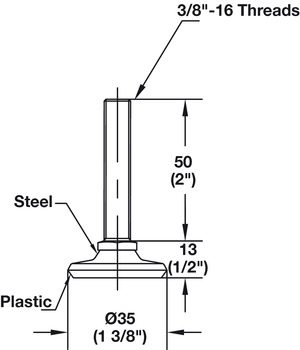

  - Leveler has a swiveling base plate and adjusts with a 9/16” wrench

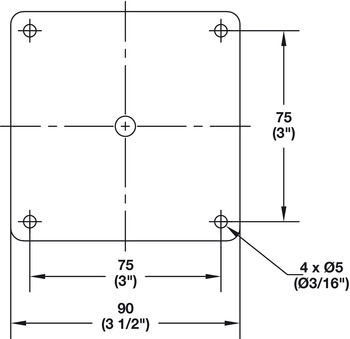

  - Mounting plate is welded on

  - Color/finish : Leg: Nickel-plated, brushed and resin epoxy-coated, mattThreaded Insert: MattLeveler: Matt & white

  - Material : Steel & nylon

  - Supplied with:

  - 4 feet, threaded inserts and levelers

  - 16 pcs mounting screws, #8 x 3/4”

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.35



• Required Products & Optional Accessories

  Optional Accessories:



  • Plinth profile, with sealing lip
