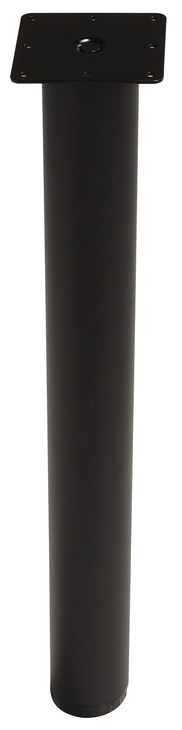

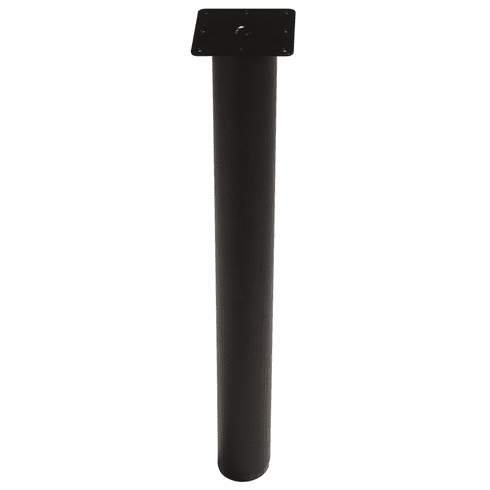

Hafele 635.53.372 E-Leg, 76 mm (3") 710 mm (28"), Black textured

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.53.372

  Product Title: E-Leg, Ø76 mm (3"), 710 mm (28"), Black textured

  Category: E-Leg, Ø76 mm (3"), 710 mm (28")

  Item Details …

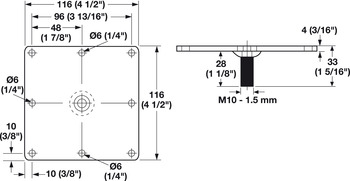

  - Area of application : Leg screws into steel square mounting plate with M10 bolt

  - Height (inch) : Inner: 15"

  - Diameter : 76.00 mm

  - Material : Leg: Steel, plated or epoxy-coatedLeveler: PlasticMounting plate: Steel

  - Adjustment facility : +25 mm (1”)

  - Load bearing capacity : Static load rating: 220 lbs

  - Load bearing capacity information : 100 kg per leg

  - Installation : Plastic levelers are pressed-in, they can be removed and pounded back in if legs need to be cut

  - Supplied with:

  - 4 legs

  - 4 mounting plates

  - Levelers

  - Screws #9 x 1”


  Additional Information …

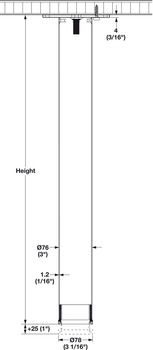

  Height includes mounting plate and levelers

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.44



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.29-6.35.pdf

  Hafele 635.53.372, 635-53-372, 63553372, 635.53
