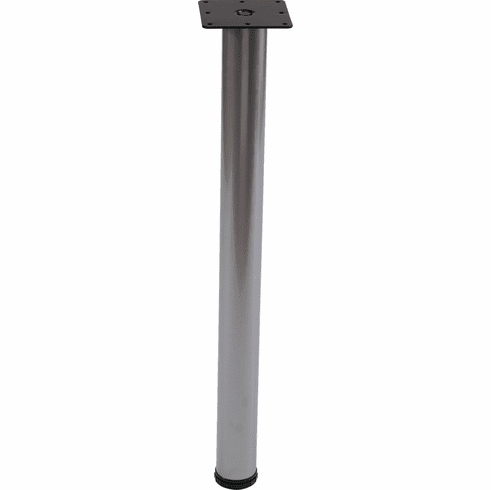

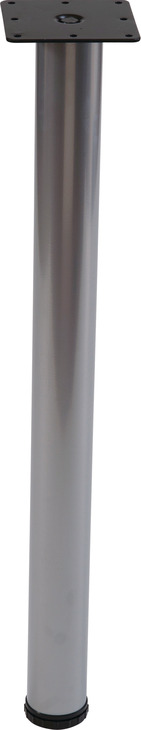

Hafele 635.61.996 E-Leg, 60 mm 876 mm (34 1/2"), Silver aluminum RAL 9006

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.61.996

  Product Title: E-Leg, Ø60 mm, 876 mm (34 1/2"), Silver aluminum RAL 9006

  Category: E-Leg, Ø60 mm,

  Item Details …

  - Leg screws into mounting plate

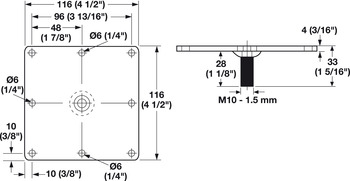

  - Square mounting plate with M10 bolt

  - Diameter : 60.00 mm

  - Material : Legs: Steel, plated or epoxy-coatedLeveler: PlasticMounting plate: Steel

  - Adjustment facility : +25 mm (1”)

  - Load bearing capacity : Static load rating per leg: 220 lbs

  - Load bearing capacity information : 100 kg per leg

  - Installation : Plastic levelers are pressed-in, they can be removed and pounded back in if legs need to be cut

  - Supplied with:

  - 4 legs

  - 4 mounting plates

  - 4 levelers

  - Screws #9 x 1”


  Additional Information …

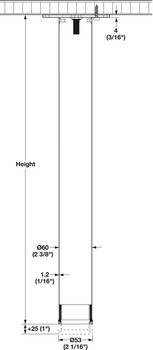

  Height includes mounting plate and leveler

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.38



• Required Products & Optional Accessories

  Optional Accessories:



  • Leveler, Ø60 mm Component System
