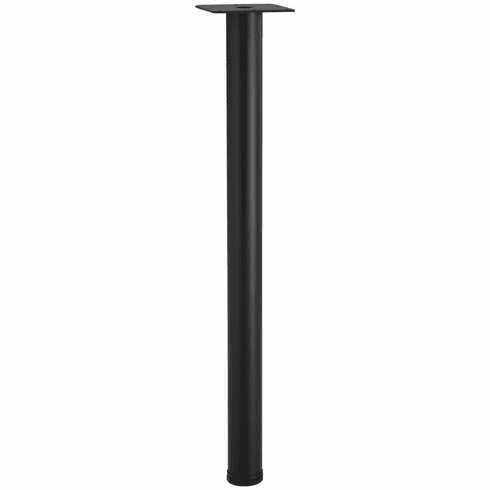

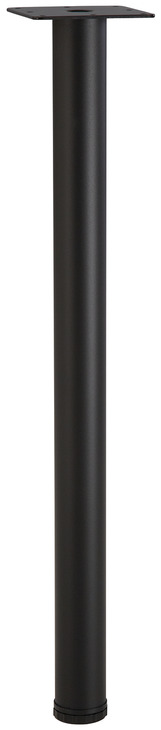

Hafele 635.68.373 E-Leg, steel, black textured, 50mm x 710mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.68.373

  Product Title: E-Leg, Ø50 mm, 710 mm (28"), Black textured

  Category: E-Leg, Ø50 mm, 710 mm (28")

  Item Details …

  - Leg screws into mounting plate

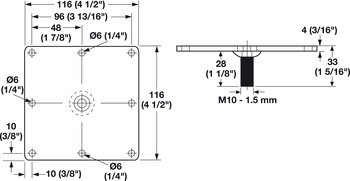

  - Square mounting plate with M10 bolt

  - Width : 116.00 mm

  - Depth : 116.00 mm

  - Diameter : 50.00 mm

  - Material : Legs: Steel, plated or epoxy-coatedLeveler: PlasticMounting plate: Steel

  - Adjustment facility : + (1") 25 mm

  - Load bearing capacity : Static load rating: 220 lbs

  - Load bearing capacity information : 100 kg per leg

  - Installation : Plastic levelers are pressed-in, they can be removed and pounded back in if legs need to be cut

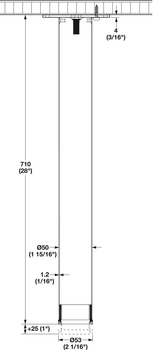

  - Installation reference : Height includes mounting plate and leveler.

  - Supplied with:

  - 4 legs

  - 4 mounting plates

  - 4 levelers

  - Screws #9 x 1”


  Additional Information …

  Height includes mounting plate and leveler.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.37



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.29-6.35.pdf

  Hafele 635.68.373, 635-68-373, 63568373, 635.68


  Specifications/Hafele Catalog - Page# FC6.47: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs
