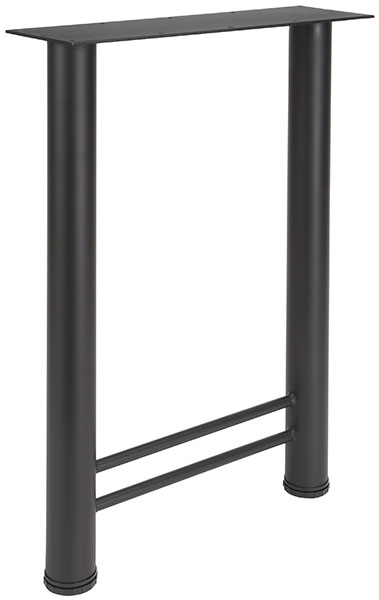

Hafele 635.73.300 H-Leg, 450 mm Width Height: 698 mm (27 1/2"), Black textured

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.73.300

  Product Title: H-Leg, 450 mm Width, Height: 698 mm (27 1/2"), Black textured

  Category: H-Leg, 450 mm Width, Height: 698 mm (27 1/2")

  Item Details …

  - Components are welded together for maximum strength

  - Individually boxed

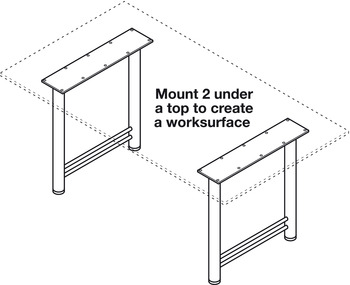

  - Area of application : Side bases for desks, training tables, conference tables, etc.

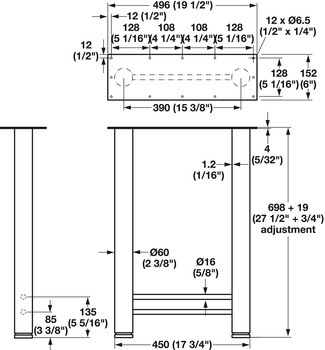

  - Width : 450.00 mm

  - Width (inch) : 17 3/4"

  - Diameter : 60.00 mm

  - Diameter (inch) : 2 3/8"

  - Material : Steel

  - Version : With adjustable feet

  - Adjustment facility : (3/4) 19 mm

  - Load bearing capacity : Static: 550 lbs

  - Load bearing capacity information : 250 kg

  - Installation : For screw fixing

  - Installation reference : Recommended for top depths: 508 - 711 mm (20” - 28”)


  Additional Information …

  Top attachment screws not included
