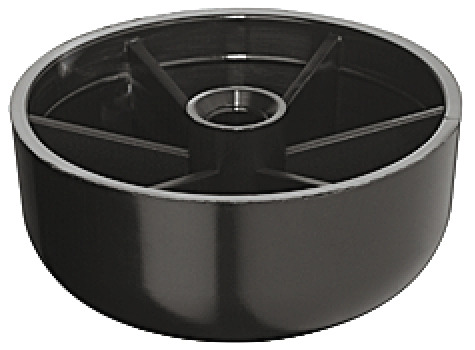

Hafele 635.80.315 Furniture Glide, with Hole for Screw Mounting Black, installation height 20 mm, 45 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 635.80.315

  Product Title: Furniture Glide, with Hole for Screw Mounting, Black, installation height 20 mm, Ø45 mm

  Category: Furniture Glide, with Hole for Screw Mounting, Black, installation height 20 mm, Ø45 mm

  Item Details …

  - #9 Flat head screw recommended

  - Economically priced glides meet all the requirements of a high quality furniture glide

  - Minimal contact pressure due to flat base and easy movement with radiused edges

  - Area of application : Suitable for upholstered furniture

  - Color/finish : Black

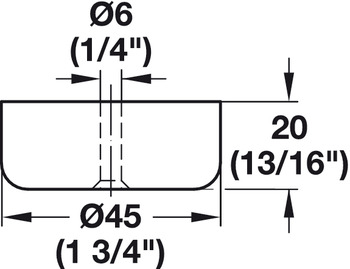

  - Diameter : 45.00 mm

  - Diameter (inch) : 1 3/4"

  - Installation height : 20 mm

  - Height (inch) : 13/16"

  - Material : Plastic

  - Load bearing capacity : 50.00 kg

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.70



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.52-6.56.pdf

  Hafele 635.80.315, 635-80-315, 63580315, 635.80


  Specifications/Hafele Catalog - Page# FC6.29: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs
