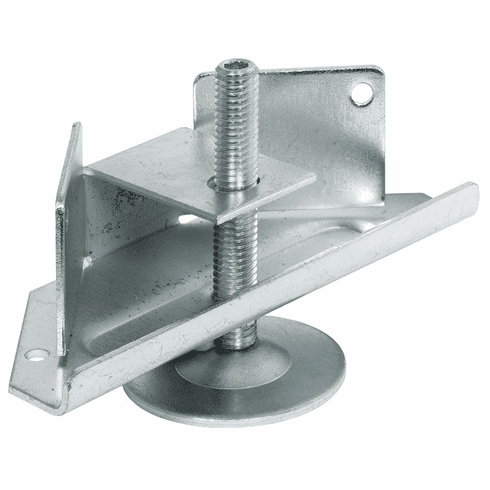

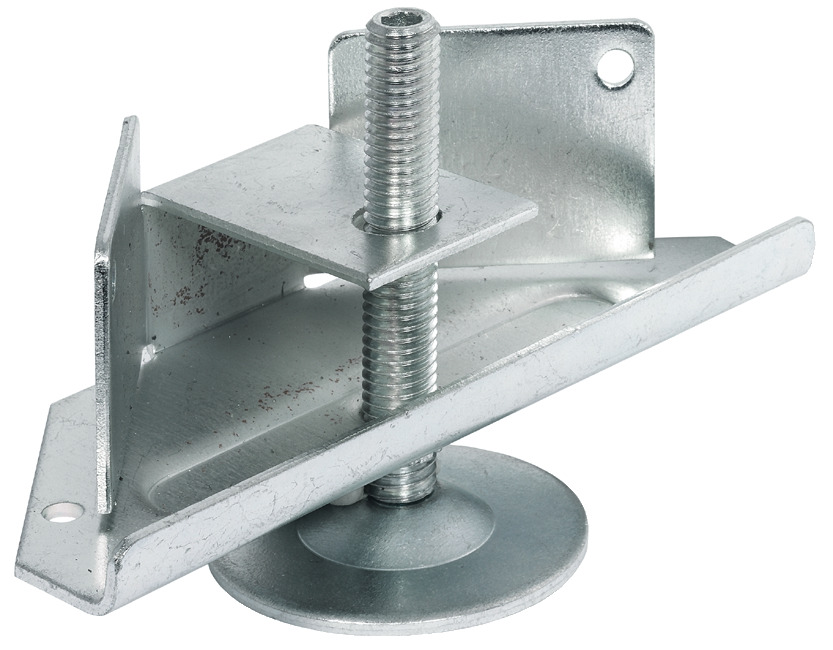

Hafele 637.23.900 Base Leveler, with Corner Supporting Bracket Load-bearing capacity 150 kg (330 lbs)

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.23.900

  Product Title: Base Leveler, with Supporting Bracket, Load-bearing capacity 150 kg (330 lbs), steel, galvanized, M10 x 70 mm threaded spindle

  Category: Base Leveler, with Supporting Bracket, Load-bearing capacity 150 kg (330 lbs), steel, galvanized, M10 x 70 mm threaded spindle

  Item Details …

  - Load bearing capacity : 150.00 kg

  - Load bearing capacity : 330 lbs

  - Installation height : Min. 3"

  - Version : With swiveling base plate

  - Material : Steel

  - Color/finish : Zinc-plated

  - Adjustment facility : + 30 mm (1 1/8")

  - Drive : Hexagon socket SW5 at top

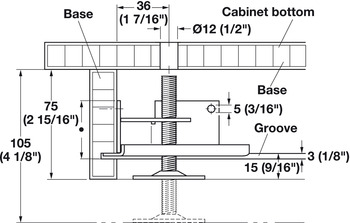

  - Installation : Groove or screw mounted

  - Supplied with:

  - Threaded bolt M10 x 65 mm (2 9/16”)

  - Hexagon socket M5

  - Swiveling base plate Ø50 mm (2”)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.75



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.57-6.65.pdf

  Hafele 637.23.900, 637-23-900, 63723900, 637.23


  Specifications/Hafele Catalog - Page# FC6.36: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs
