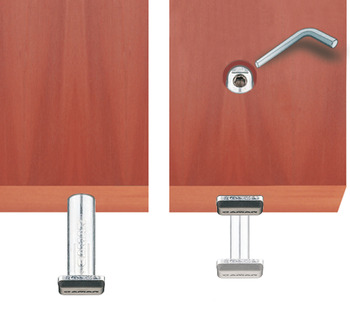

Hafele 637.24.025 Insert Leveler drilling depth: 131 mm, unfinished, height: 120 mm, zinc alloy

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.24.025

  Product Title: Insert Leveler, Load bearing capacity approx. 300 kg, drilling depth: 131 mm, unfinished, height: 120 mm, zinc alloy

  Category: Insert Leveler, Load bearing capacity approx. 300 kg,

  Item Details …

  - Load bearing capacity : 300.00 kg

  - Load bearing capacity : Approx. 661 lbs

  - Height adjustment : + 1" + 11/16" with height 1 1/4"

  - Material : Zinc Alloy

  - Color/finish : Unfinished

  - Adjustment facility : Height adjustment +25 mm (1") + 18 mm (11/16") with height 32 mm (1 1/4")

  - Drive : Hexagon socket SW4 at side

  - Supplied with:

  - Plinth adjusting fitting with plastic cover cap black


  Additional Information …

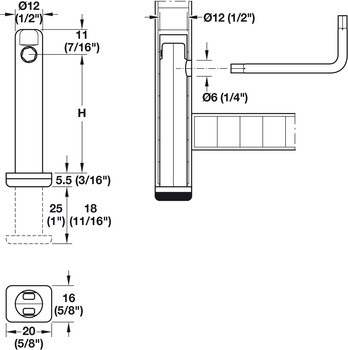

  Drilling Depth = Height + 11 mm (7/16”)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.76
