Adjustable Table 3-legs, corner, steel, black: Hafele part# 637.45.296

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.45.296

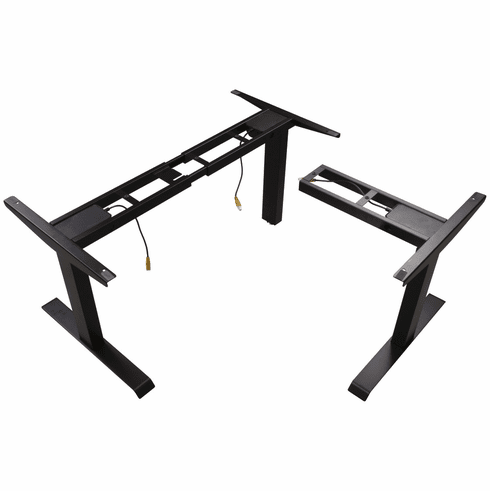

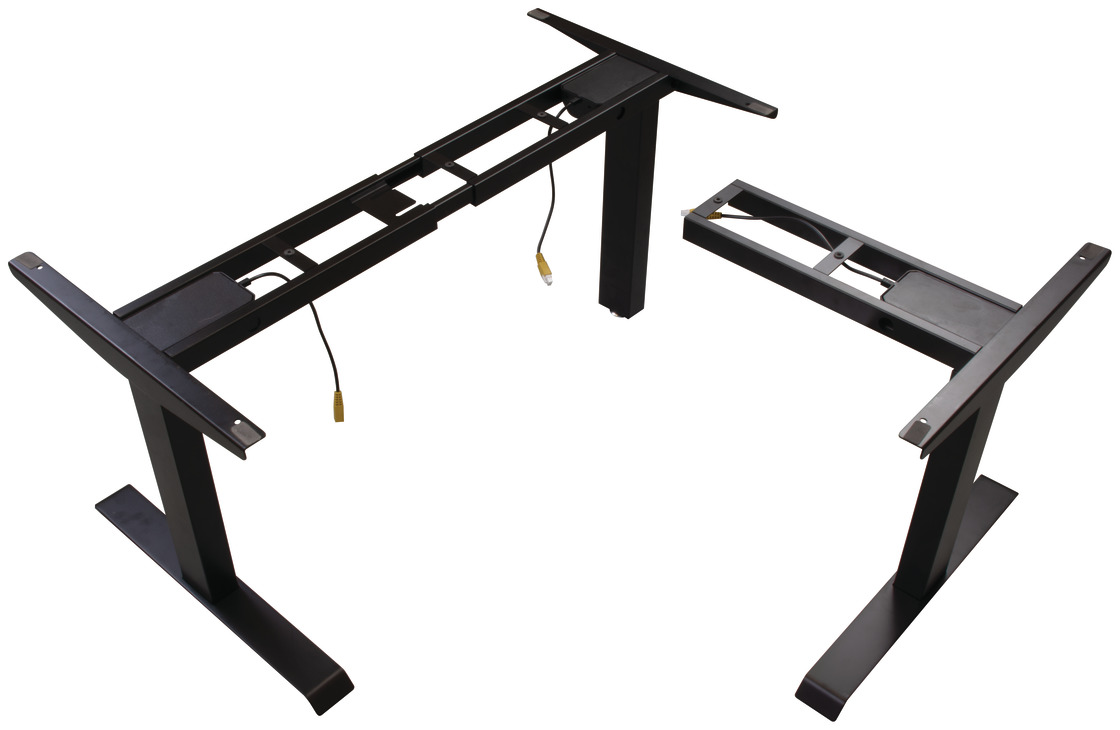

  Product Title: Adjustable Table 3-Leg System, STAR, black

  Category: Adjustable Table 3-Leg System, STAR,

  Item Details …

  - STAR tables are safe, with an integrated Collision Protection System:

  - 1). AMP Draw – If the control box detects that any of the legs receive a spike in amp-draw due to for example, something hitting the table, the table will reverse direction to avoid damage.

  - 2). Gyro Sensor – This internal sensor will detect the following:

  - • Sudden change in speed (up or down)

  - • Sudden change in the angle of the desk (up or down)

  - • An impact to the worksurface (up or down)

  - Stroke: 25 1/2�

  - Meets BIFMA X5.5 standards

  - UL 962 Recognized

  - Made in the USA.

  - Weight rating: 335 lbs including top weight

  - Version : With 3-stage adjustable columnsWith 4-setting programmable switchWith adjustable width support beam, adjustment range 42 ½� – 71� and a floating 3rd leg fixed beam at 19 ¾�

  - Material : Steel

  - Travel : 40 mm /sec

  - Area of application : Designed for corner table workstations.Recommended for:Top widths: 36" - 84"Top depths: 24" - 30"

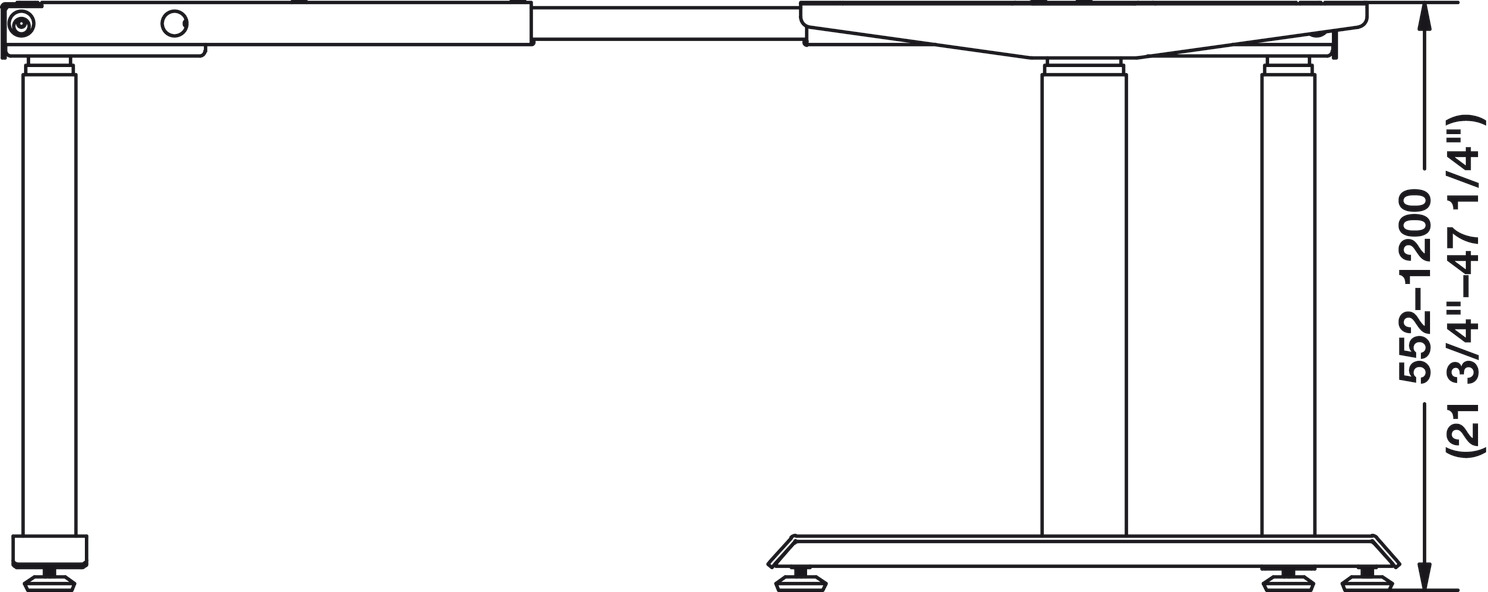

  - Height adjustment : 21 3/4� – 47 1/4�, not including top thickness

  - Load bearing capacity : 335 lbs. including top weight

  - Supplied with:

  - 3 Adjustable columns

  - Support beams

  - 3 Top Supports plates

  - 2 Feet

  - Programmable switch

  - Control box, wiring and assembly hardware


  Additional Information …

  Weight rating is based on an evenly distributed load over tabletop. Please provide at least 1� space between tabletop and any adjoining surfaces, cabinets, etc.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  STAR 3-Leg System Mounting Instructions

  Troubleshooting Guide for 3+ Column Star Bases
