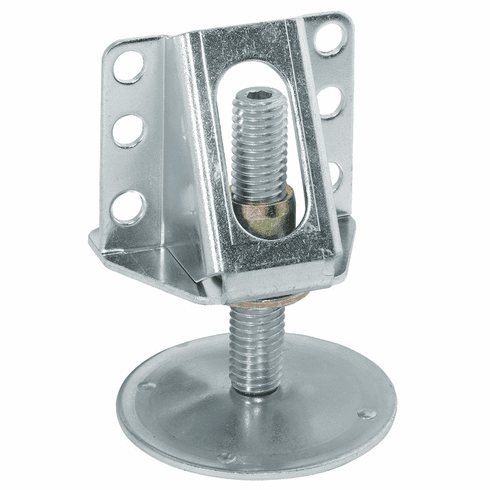

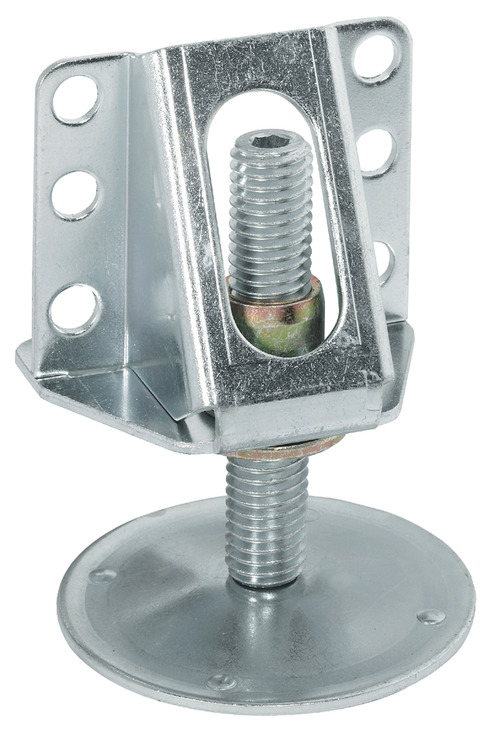

Hafele 637.67.900 Base Leveler, Heavy Duty With Supporting Bracket

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.67.900

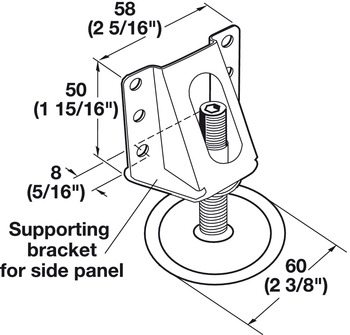

  Product Title: Base Leveler, Heavy Duty With Supporting Bracket, load-bearing capacity 200 kg, steel, zinc-plated, M12 x 65 mm threaded bolt

  Category: Base Leveler, Heavy Duty With Supporting Bracket, load-bearing capacity 200 kg, steel, zinc-plated, M12 x 65 mm threaded bolt

  Item Details …

  - Load bearing capacity : 200.00 kg

  - Load bearing capacity : 440 lbs

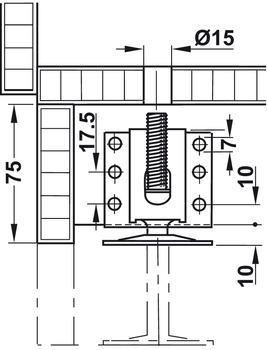

  - Installation height : Min. 2 3/4"

  - Version : Foot plate: swivellingWith supporting bracketThreaded spindle M12 x 65 mm

  - Material : Steel

  - Color/finish : Zinc-plated

  - Installation : Screw mounted

  - Supplied with:

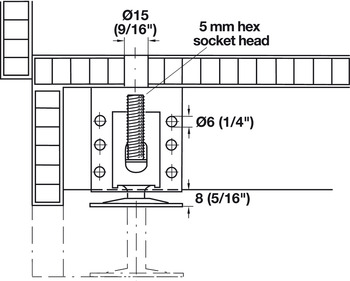

  - M12 x 65 (2 9/16”) bolt with M5 mm hexagonal socket head

  - Base plate Ř60 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.73



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.57-6.65.pdf

  Hafele 637.67.900, 637-67-900, 63767900, 637.67
