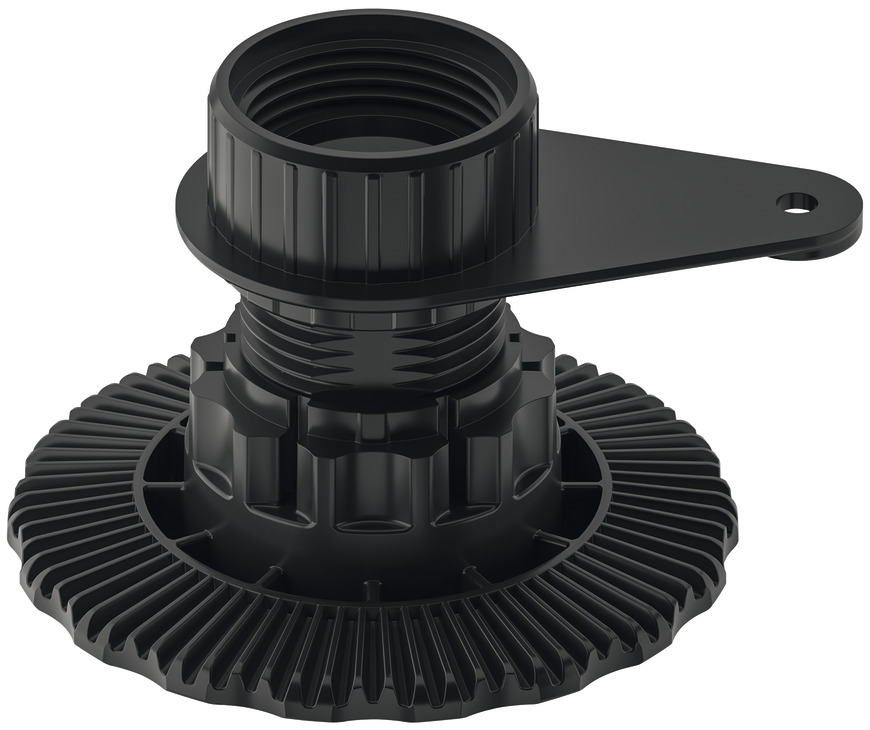

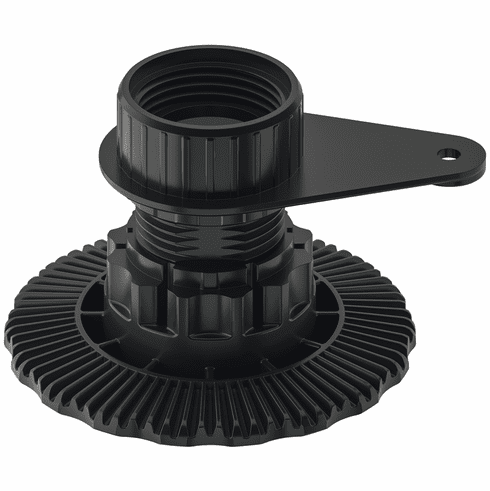

Hafele 637.76.460 Axilo Low Profile Press-Fit Foot, plastic, black
, 63776460, 637-76-460 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 637.76.460
Product Title: Low Profile Press-Fit Foot, Häfele AXILO® Cabinet Leveling System, mounts to 35mm hole, mounting plate is not required
Category: Low Profile Press-Fit Foot, Häfele AXILO® Cabinet Leveling System, mounts to 35mm hole, mounting plate is not required
Item Details …

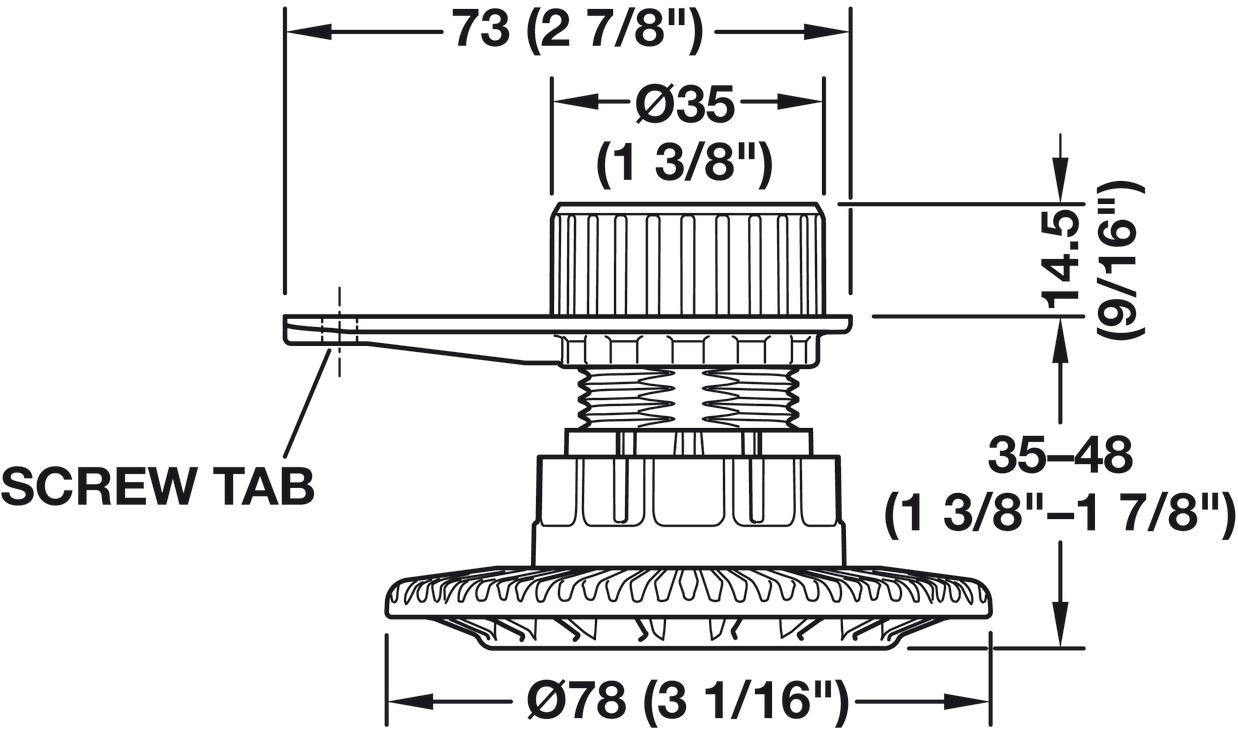

- Press-fits into a ? 35 mm (1 3/8") hole and is then secured with screw tab
- Installation height : 35.00 mm
- Adjustment facility : Range: 35mm - 48mm
- Area of application : For low profile applications
- Material : Plastic
- Color/finish : Black
- Adjustment facility : Height adjustment: 10 mm, Height adjustment with AXILO® adjusting tool
- Load bearing capacity : 250.00 kg
- Supplied with:
- Screw-in glide with mounting plate Ø 35 mmData Sheet
Product Resources
Required Products & Optional Accessories
Optional Accessories:- Premium Adjusting Tool, Häfele AXILO® Cabinet Leveling System
- Extension Tool, Häfele AXILO™ Cabinet Leveling System
- Spacer, Häfele AXILO® Cabinet Leveling System
