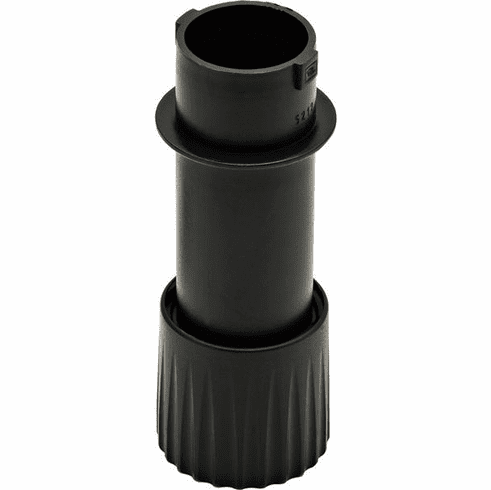

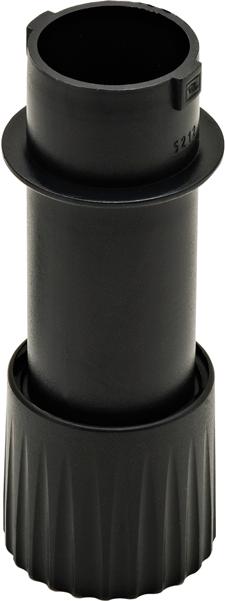

Hafele 637.80.362 Adjustment Foot/Tube, 46 mm 120 mm (4 3/4") base height

Product Information

• Description

  Manufacturer: Hafele
  Item: 637.80.362

  Product Title: Adjustment Foot/Tube, Ø46 mm, 120 mm (4 3/4") base height

  Category: Adjustment Foot/Tube, Ø46 mm,

  Item Details …

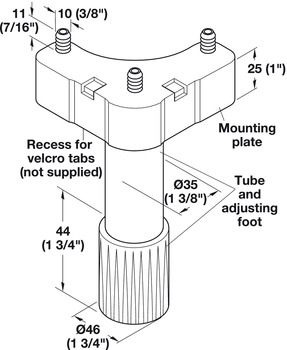

  - Bayonet locking of the tube in the mounting plate prevents the tube from pulling out during tilting, especially on tall cabinets

  - Base height listed is total, including mounting plate

  - Plinth panel attaches with the clips below, or with Velcro applied to the mounting plate recess

  - Material : Plastic

  - Load bearing capacity : Per leg: 330 lbs

  - Supplied with:

  - 4 feet

  - 4 tubes

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.29



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.22-6.27.pdf

  Hafele 637.80.362, 637-80-362, 63780362, 637.80


  Specifications/Hafele Catalog - Page# FC6.41: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:

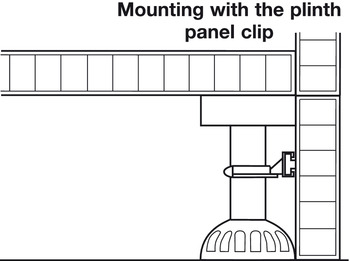

  • Plinth Panel Clip, for Ø46 mm Adjustment Foot/Tube
  • Plinth Panel Clip, for Ø46 mm Adjustment Foot/Tube, Groove Mounted

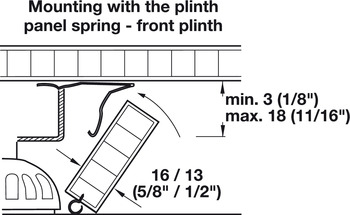

  • Plinth Panel Spring, for Front Plinth
