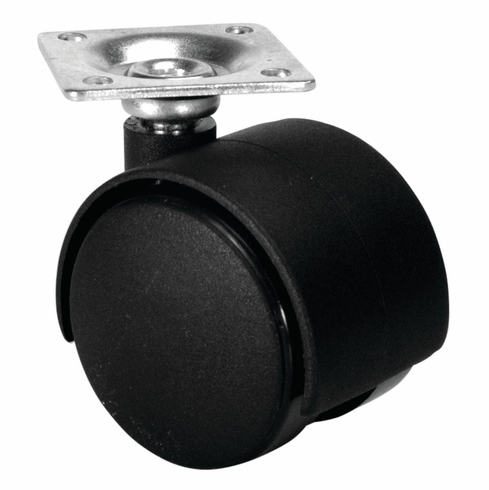

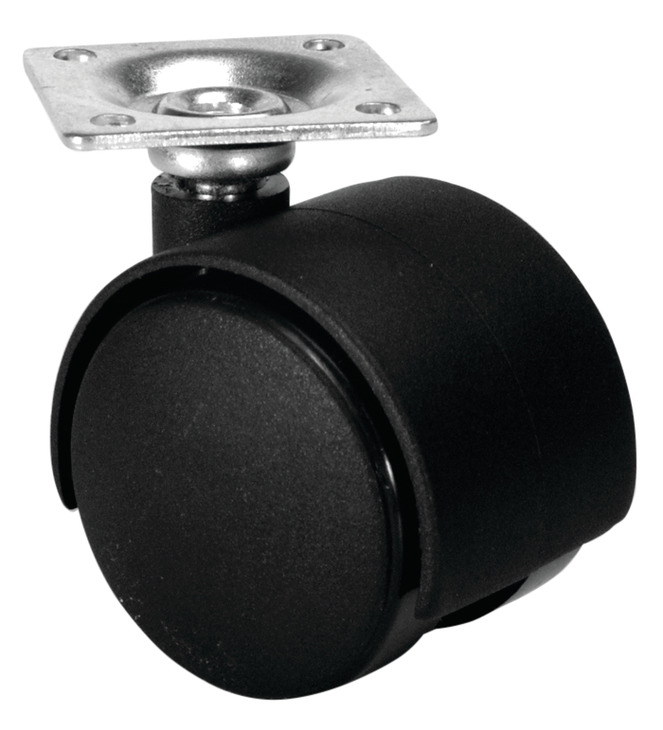

Hafele 660.04.331 Twin Wheel Caster, Plate Mount, Load-Bearing Capacity 77 lbs., 40 mm Without brake

Product Information

• Description

  Manufacturer: Hafele
  Item: 660.04.331

  Product Title: Twin Wheel Caster, Plate Mount, Load-Bearing Capacity 77 lbs., Ø40 mm, Without brake

  Category: Twin Wheel Caster, Plate Mount, Load-Bearing Capacity 77 lbs., Ø40 mm,

  Item Details …

  - Well-spaced wheels for exceptionally smooth running action

  - Hard, abrasion-proof surface

  - Thread type : Hard

  - Installation : Plate mounted

  - Wheel Ø : 44.00 mm

  - Load bearing capacity : 35.00 kg

  - Load bearing capacity : Per caster: 77 lbs

  - Color/finish : Black, Matt

  - Area of application : For light duty applications

  - Material : NylonSteel

  - Installation reference : Well-spaced wheels for exceptionally smooth running actionHard, abrasion-proof surface

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.3



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.3-6.3.pdf

  Hafele 660.04.331, 660-04-331, 66004331, 660.04


  Specifications/Hafele Catalog - Page# FC6.3: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Glide, for Press-Fitting into Square Tubes
