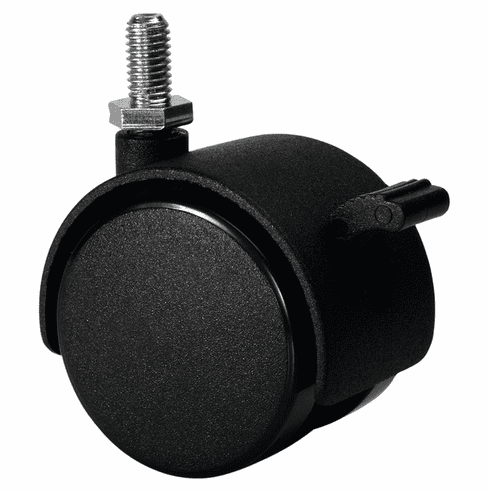

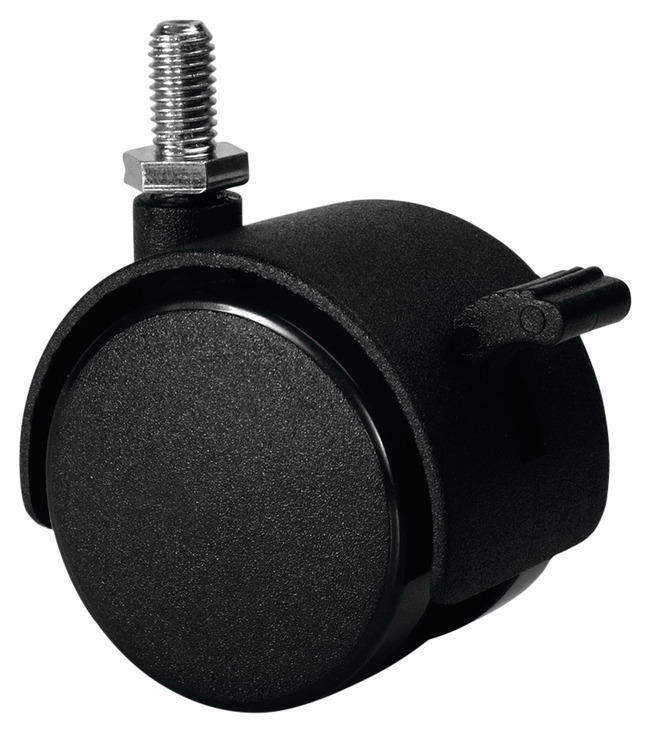

Hafele 660.04.353 Twin Wheel Caster, Threaded Stem, Load-Bearing Capacity 77 lbs. Without brake
, 66004353, 660-04-353 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 660.04.353
Product Title: Twin Wheel Caster, Threaded Stem, Load-Bearing Capacity 77 lbs., Without brake
Category: Twin Wheel Caster, Threaded Stem, Load-Bearing Capacity 77 lbs.,
Item Details …
- Well-spaced wheels for exceptionally smooth running action
- Hard, abrasion-proof surface
- Thread type : Hard
- Installation : Threaded Stem
- Threaded pin size : Ø 18 mm
- Load bearing capacity : 35.00 kg
- Load bearing capacity : Per caster: 77 lbs
- Color/finish : Black, Matt
- Thread Ø : 5/16" - 18
- Material : NylonSteel
- Installation reference : Well-spaced wheels for exceptionally smooth running actionHard, abrasion-proof surface
Additional Information …
Threaded inserts and brackets required.Data Sheet
Product Resources

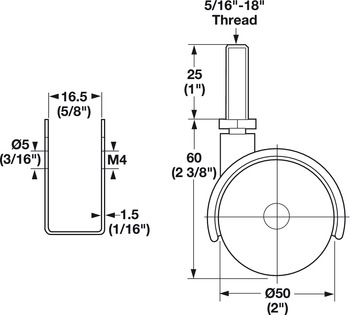

Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_6.3-6.3.pdfHafele 660.04.353, 660-04-353, 66004353, 660.04
Specifications/Hafele Catalog - Page# FC6.4:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
