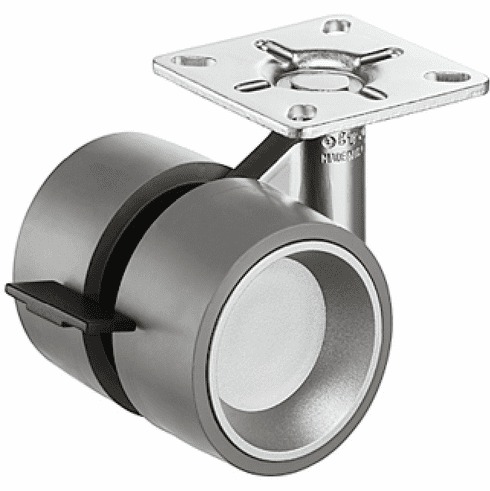

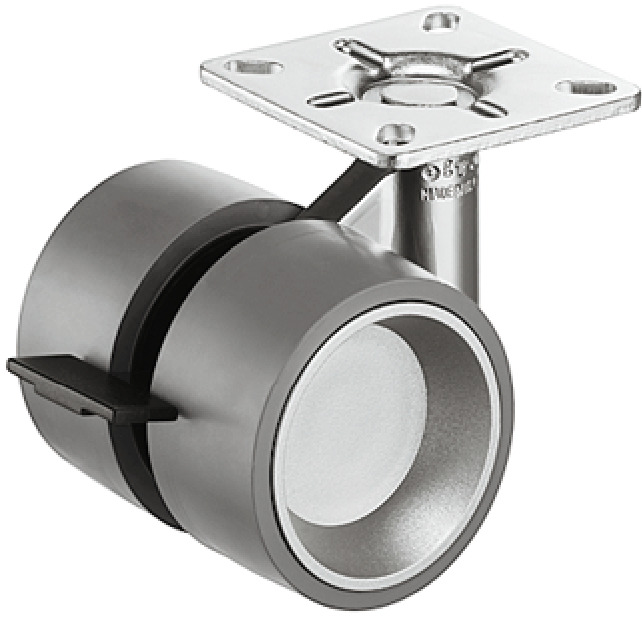

Hafele 660.33.911 Twin Wheel Caster, Free-Running, with Brake, Capacity 175 lbs. Silver, with gray wheel

Product Information

• Description

  Manufacturer: Hafele
  Item: 660.33.911

  Product Title: Twin Wheel Caster, Load bearing capacity 80 kg, free running, With brake and screw-on plate, Silver, with gray wheel

  Category: Twin Wheel Caster, Load bearing capacity 80 kg, free running, With brake and screw-on plate, Silver, with gray wheel

  Item Details …

  - hard running surface: For soft floors, e.g. carpets

  - Soft running surface: For hard floors, e.g. parquet flooring

  - Castor version : steerable, with brake

  - Thread type : Soft

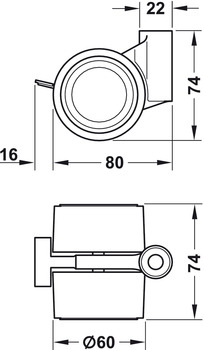

  - Length x width mm : 96 x 74 mm

  - Wheel Ø : 60.00 mm

  - Installation height : 80.00 mm

  - Load bearing capacity : 80.00 kg

  - Load bearing capacity : 176 lbs per caster

  - Diameter (inch) : Wheel: 2 3/8"

  - Color/finish : SilverWheel: Gray, Housing: Aluminum coloredBrake: BlackWheel: Gray

  - Material : Housing: Zinc alloyWheel and brake: Plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.8



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.8-6.8.pdf

  Hafele 660.33.911, 660-33-911, 66033911, 660.33


  Specifications/Hafele Catalog - Page# FC6.6: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Glide, for Press-Fitting into Square Tubes
