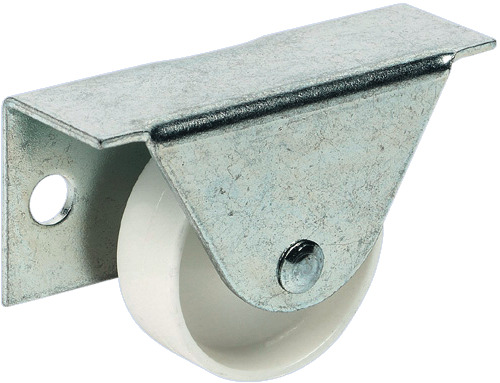

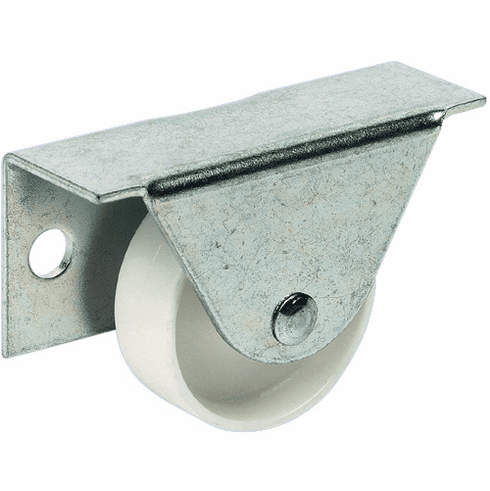

Hafele 660.98.904 Bed Box Caster, Rigid, 35 mm Zinc housing, white wheel

Product Information

• Description

  Manufacturer: Hafele
  Item: 660.98.904

  Product Title: Bed Box Caster, Rigid, Ø35 mm, For screw fixing at the side, Zinc housing, white wheel

  Category: Bed Box Caster, Rigid, Ø35 mm, For screw fixing at the side

  Item Details …

  - With screw-on mounting plate

  - Wide tread for easy movement on carpet

  - The side mounting facility and low height make it suitable for installation in limited clearance areas

  - Castor version : With screw-on mounting plate

  - Thread type : Hard

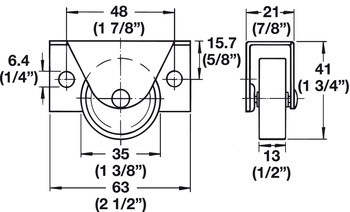

  - Length x width mm : 63 x 21 mm

  - Wheel Ø : 35.00 mm

  - Roller width : 13.00 mm

  - Installation height : 41.00 mm

  - Load bearing capacity : 40.00 kg

  - Load bearing capacity : Per caster: 88 lbs

  - Material : Housing: SteelWheel: Plastic

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.15



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.14-6.14.pdf

  Hafele 660.98.904, 660-98-904, 66098904, 660.98


  Specifications/Hafele Catalog - Page# FC6.15: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Table, Legs, Casters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Chipboard screw, Hospa, Pan Head, PZ, Fully Threaded, Galvanized
