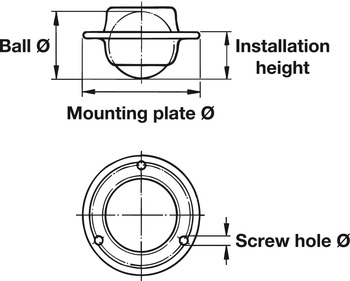

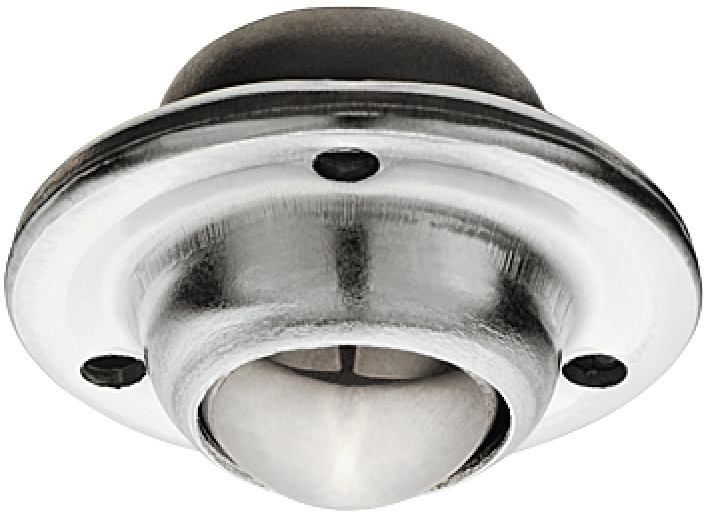

Hafele 661.02.250 Ball Caster, Free-Running, Steel Installation height: 20 mm, ball : 25 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 661.02.250

  Product Title: Ball Caster, Free-Running, Steel, For screw fixing, Installation height: 20 mm, ball Ø: 25 mm

  Category: Ball Caster, Free-Running, Steel, For screw fixing

  Item Details …

  - When mounted upside down they can be used as a conveyor system for transporting heavy loads

  - With screw-on mounting plate and reinforced base

  - The ball casters can be moved in any direction

  - Version : Free running

  - Material : Steel

  - Color/finish : Housing: zinc platedBall: Chrome plated, Housing: Yellow chromateBall: Chrome plated

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 6.14



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_6.14-6.14.pdf

  Hafele 661.02.250, 661-02-250, 66102250, 661.02
