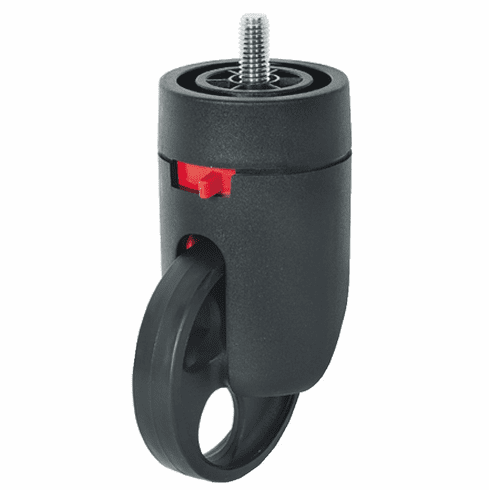

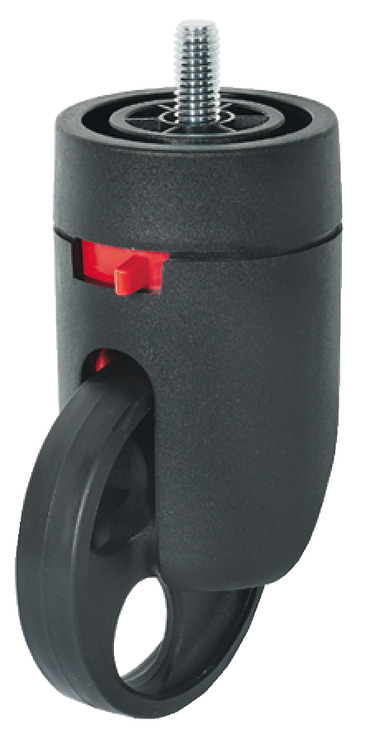

Hafele 661.29.301 Swiveling Caster, M10 Stem, with Brake, Load-Bearing Capacity 264 lbs. With M10 thread, Black with pierced wheel

Product Information

• Description

  Manufacturer: Hafele
  Item: 661.29.301

  Product Title: Swiveling Caster, M10 Stem, with Brake, Load-Bearing Capacity 264 lbs., With M10 thread, Black with pierced wheel

  Category: Swiveling Caster, M10 Stem, with Brake, Load-Bearing Capacity 264 lbs., With M10 thread

  Item Details …

  - For individual height and version

  - Unique locking mechanism secures wheel in both rotation and swivel

  - Rubberized surface on wheel insures a quiet and smooth operation

  - With brake and M10 thread

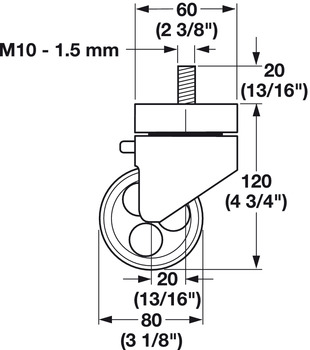

  - Diameter : 60.00 mm

  - For tube Ř : 60.00 mm

  - Version : with brake for wheel and steering movement

  - Load bearing capacity : 264 lbs per caster

  - Material : Body: Steel, Plastic; Wheel: Rubberized

  - Load bearing capacity : 120.00 kg

  - Installation reference : Screws directly into threaded plate (washer not required)

  - Order reference

  - Please order 1 cone per tube for mounting the roller.

  - Supplied with:

  - 4 casters


  Additional Information …

  The roller can be fitted to any Rondella leg with a diameter of 60 mm.
