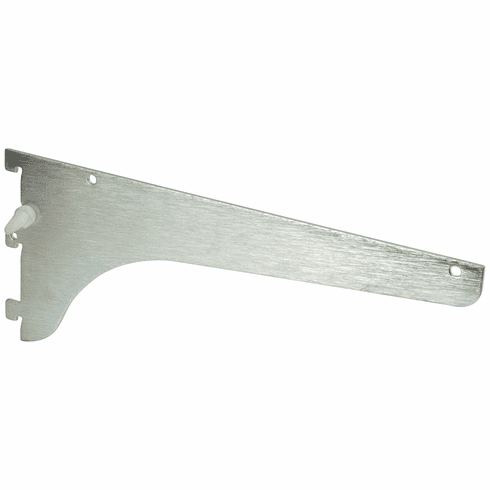

Hafele 774.11.610 SHOPTEC Single Bracket, lock lever, steel, zinc-plated, 16"

Product Information

• Description

  Manufacturer: Hafele
  Item: 774.11.610

  Product Title: Single Brackets, Shoptec, length 16"

  Category: Single Brackets, Shoptec,

  Item Details …

  - Cam lock secures bracket to standard

  - Adjustable in 50 mm (2") increments

  - ANSI/BHMA 156.9-2003 Grade 2 Complaint

  - Three lug design adds support

  - Model : 87 ANO 24

  - Gauge formula : 12.00

  - Load bearing capacity : 425 lbs

  - Version : Heavy dutySingle slot design

  - Unique selling points (USP) : Adjustable in 50 mm (2") incrementsANSI/BHMA 156.9-2003 Grade 2 ComplaintThree lug design adds support

  - Special notes on usage : Cam lock secures bracket to standard

  - Material : Steel

  - Finish : Zinc-plated

  - Note on load bearing capacity : Per pair

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.61A



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Single Standards, Shoptec, Heavy Duty, Single Slot Design (choose one):


  • Weight capacity up to 425 lbs./pair, length 24" Weight capacity up to 425 lbs./pair, length 36" Weight capacity up to 425 lbs./pair, length 48" Weight capacity up to 425 lbs./pair, length 60" Weight capacity up to 425 lbs./pair, length 72" Weight capacity up to 425 lbs./pair, length 84" Weight capacity up to 425 lbs./pair, length 96"

    774.10.601 774.10.603 774.10.605 774.10.606 774.10.608 774.10.610 774.10.612

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order
