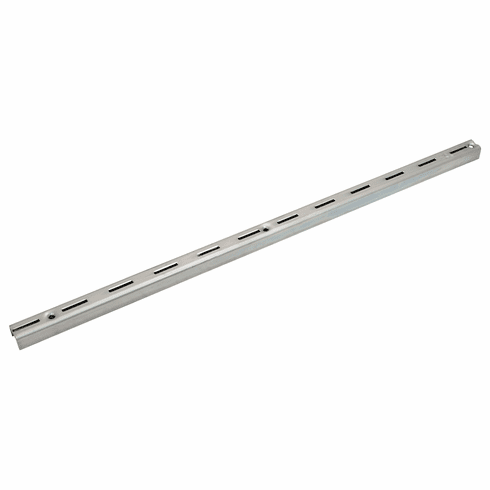

Hafele 774.20.265 87 Series Standards, KV, 7/8" x 11/16", 12 ga. Steel

Product Information

• Description

  Manufacturer: Hafele
  Item: 774.20.265

  Product Title: 87 Series Standards, KV, 7/8" x 11/16", 12 ga. Steel, weight capacity up to 1060 lbs./pair, Length 48"; model 87 ANO 48

  Category: 87 Series Standards, KV, 7/8" x 11/16", 12 ga. Steel, weight capacity up to 1060 lbs./pair

  Item Details …

  - Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele.

  - Screws are not included

  - Single slot design

  - Made in USA

  - Gauge formula : 12.00

  - Load bearing capacity : Pair: Up to 1060 lbs

  - Model series : 87

  - Suitable for : Super duty

  - Version : Single slot designAdjustable in 2" increments

  - Unique selling points (USP) : Single slot designMade in USA

  - Special notes on usage : Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele.Screws are not included

  - Adherence to standards : RoHS compliant

  - Width : 22.23 mm

  - Width (inch) : 7/8"

  - Depth : 17.46 mm

  - Depth (inch) : 11/16"

  - Material : Steel

  - Finish : Anochrome

  - Note : Screws are not included.

  - Load bearing capacity max. : 480.81 kg

  - Note on load bearing capacity : Based on per pair


  Additional Information …

  Screws are not included.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.66



• Specifications

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  186 and 187 Series Bracket, KV, for 86 & 187 Series Standards (choose one):


  • KV - weight capacity up to 1060 lbs./pair, Length 8", model 186LL ANO 8 KV - weight capacity up to 1060 lbs./pair, Length 10", model 186LL ANO 10 KV - weight capacity up to 1060 lbs./pair, Length 12", model 186LL ANO 12 KV - weight capacity up to 1060 lbs./pair, Length 14", model 186LL ANO 14 KV - weight capacity up to 1060 lbs./pair, Length 16", model 186LL ANO 16 KV - weight capacity up to 1060 lbs./pair, Length 18", model 186LL ANO 18 KV - weight capacity up to 1060 lbs./pair, Length 20", model 186LL ANO 20 KV - weight capacity up to 1060 lbs./pair, Length 22", model 186LL ANO 22 KV - weight capacity up to 1060 lbs./pair, Length 24", model 186LL ANO 24

    774.24.242 774.24.243 774.24.264 774.24.265 774.24.266 774.24.267 774.24.268 774.24.269 774.24.270

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Shelf Cushion, KV, or 186 and 187 Brackets
  • End Shelf Rest, KV, For 186 and 187 Brackets
  • Center Shelf Rest, KV, for 186 and 187 Brackets
  • Front Shelf Rest, KV, for 186 and 187 Brackets
  • Front Shelf Rest, KV, for 186 and 187 Brackets
