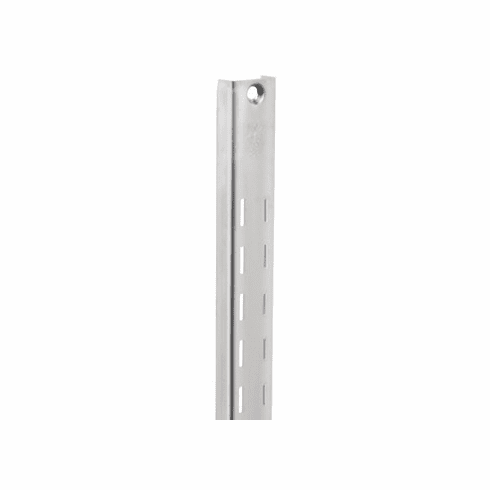

Hafele 774.21.223 85 Series Standards, KV, 1 1/4" x 1/2", 16 ga. Steel

Product Information

• Description

  Manufacturer: Hafele
  Item: 774.21.223

  Product Title: 85 Series Standards, KV, 1 1/4" x 1/2", 16 ga. Steel, Weight capacity up to 680 lbs./pair, Length 36"; model 85 ANO 36

  Category: 85 Series Standards, KV, 1 1/4" x 1/2", 16 ga. Steel, Weight capacity up to 680 lbs./pair

  Item Details …

  - Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele.

  - All KV 1" adjustable brackets can be used with these standards

  - RoHS compliant

  - Screws are not included

  - Double slot design

  - Made in USA

  - Gauge formula : 16.00

  - Load bearing capacity : Pair: Up to 680 lbs

  - Model series : 85

  - Suitable for : Heavy duty

  - Version : Adjustable in 1" incrementsDouble slot design

  - Unique selling points (USP) : Double slot designMade in USA

  - Special notes on usage : Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele. All KV 1" adjustable brackets can be used with these standardsRoHS compliantScrews are not included

  - Adherence to standards : RoHS compliant

  - Width : 31.75 mm

  - Width (inch) : 1 1/4"

  - Depth : 12.70 mm

  - Depth (inch) : 1/2"

  - Material : Steel

  - Finish : Anochrome

  - Note : Screws are not included

  - Load bearing capacity max. : 308.44 kg

  - Note on load bearing capacity : Based on per pair


  Additional Information …

  Screws are not included

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.65



• Specifications

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  185 Series Bracket, KV, for 85 Series Standards (choose one):


  • weight capacity up to 680 lbs./pair, Length 8"; model 185 ANO 8 weight capacity up to 680 lbs./pair, Length 10"; model 185 ANO 10 weight capacity up to 680 lbs./pair, Length 12"; model 185 ANO 12 weight capacity up to 680 lbs./pair, Length 14"; model 185 ANO 14 weight capacity up to 680 lbs./pair, Length 16"; model 185 ANO 16 weight capacity up to 680 lbs./pair, Length 18"; model 185 ANO 18 weight capacity up to 680 lbs./pair, Length 20"; model 185 ANO 20 weight capacity up to 680 lbs./pair, Length 22"; model 185 ANO 22 weight capacity up to 680 lbs./pair, Length 24"; model 185 ANO 24

    774.24.222 774.24.223 774.24.224 774.24.225 774.24.226 774.24.227 774.24.228 774.24.229 774.24.230

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
