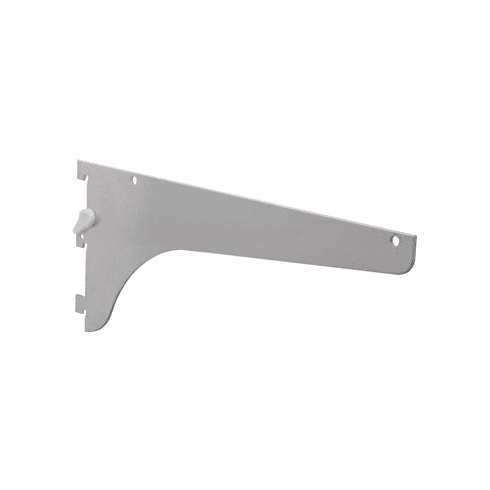

Hafele 774.24.266 186 and 187 Series Bracket, KV, for 86 & 187 Series Standards

Product Information

• Description

  Manufacturer: Hafele
  Item: 774.24.266

  Product Title: 186 and 187 Series Bracket, KV, for 86 & 187 Series Standards, KV - weight capacity up to 1060 lbs./pair, Length 16", model 186LL ANO 16

  Category: 186 and 187 Series Bracket, KV, for 86 & 187 Series Standards, KV - weight capacity up to 1060 lbs./pair

  Item Details …

  - Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele.

  - Nylon cam lock lever allows for easy installation while securing bracket to standard

  - RoHS compliant

  - Nylon cam lock lever allows for easy installation while securing bracket to standard

  - Gauge formula : 12.00

  - Load bearing capacity : Pair: Up to 1060 lbs

  - Model series : 187

  - Suitable for : Super duty

  - Version : Adjustable in 2" incrementsDouble-lug brackets provide strong, secure weight-bearing support and help prevent shelves and contents from falling if bumped

  - Unique selling points (USP) : Nylon cam lock lever allows for easy installation while securing bracket to standard

  - Special notes on usage : Proper installation and mounting required. Tested to meet or exceed ANSI/BHMA 156.9-2003 performance standards. Weight limits are based on standards mounted on 16" centers and are intended for use as general guidelines only. No warranty, expressed or implied, supplied by Häfele.Nylon cam lock lever allows for easy installation while securing bracket to standardRoHS compliant

  - Adherence to standards : RoHS compliant

  - Material : Steel

  - Finish : Anochrome

  - Load bearing capacity max. : 480.81 kg

  - Note on load bearing capacity : Based on per pair

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.66



• Specifications

• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  87 Series Standards, KV, 7/8" x 11/16", 12 ga. Steel (choose one):


  • weight capacity up to 1060 lbs./pair, Length 24"; model 87 ANO 24 weight capacity up to 1060 lbs./pair, Length 36"; model 87 ANO 36 weight capacity up to 1060 lbs./pair, Length 48"; model 87 ANO 48 weight capacity up to 1060 lbs./pair, Length 60"; model 87 ANO 60 weight capacity up to 1060 lbs./pair, Length 72"; model 87 ANO 72 weight capacity up to 1060 lbs./pair, Length 84"; model 87 ANO 84 weight capacity up to 1060 lbs./pair, Length 96"; model 87 ANO 96

    774.20.263 774.20.264 774.20.265 774.20.266 774.20.267 774.20.268 774.20.269

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Zip-R Screw, Pan Head, #2 Phillips Drive
  • Spax® Screw, Flat Countersunk Head with Uni-Drive, Zinc-Plated
  • 87 Series Standards, KV, 7/8" x 11/16", 12 ga. Steel
  • Shelf Cushion, KV, or 186 and 187 Brackets
  • End Shelf Rest, KV, For 186 and 187 Brackets
  • Center Shelf Rest, KV, for 186 and 187 Brackets
  • Front Shelf Rest, KV, for 186 and 187 Brackets
  • Front Shelf Rest, KV, for 186 and 187 Brackets
