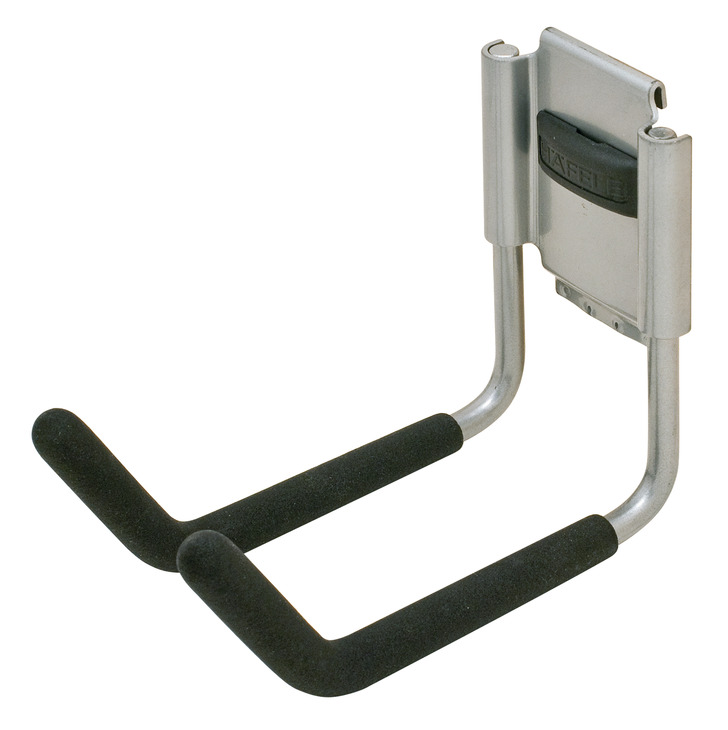

Hafele 792.02.203 Utility Hook, Omni Track For general use

Product Information

• Description

  Manufacturer: Hafele
  Item: 792.02.203

  Product Title: Utility Hook, TAG Omni Track , For general use

  Category: Utility Hook, TAG Omni Track®, For general use

  Item Details …

  - Hooks are used with wall track, 792.00.000

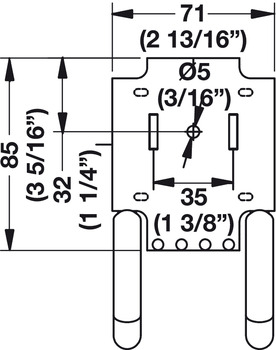

  - If additional strength is required for heavy loads, hole is provided in the center of the base plate to use screw, 792.01.990 to secure hook to the studs behind the dry wall

  - Cover cap, 792.02.349 sold separately, secures the hook to the wall track allowing the hooks to be repositioned horizontally and covers the hole in the base plate

  - Heavy duty

  - Hooks have a rubber non-slip protective coating

  - Color/finish : Black, matt

  - Number of hooks : 2.00

  - Load bearing capacity : 11.00 kg

  - Load bearing capacity : 25 lbs

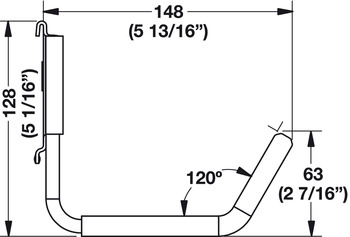

  - Length : 148.00 mm

  - Length (inch) : 5 13/16"

  - Width : 71.00 mm

  - Width (inch) : 2 13/16"

  - Height : 128.00 mm

  - Height (inch) : 5 1/16"

  - Material : Steel, Rubber

  - Suitable for : General use

• Data Sheet

  Detailed Data Sheet

• Product Resources

  792.02.203 Utility Hook Specifications

  TCH_Furniture_Cabinetry_Hardware_2022|PageĀ 4.19

  TCH_Furniture_Cabinetry_Hardware_2022|PageĀ 4.27



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.14-4.15.pdf

  Hafele 792.02.203, 792-02-203, 79202203, 792.02


  Specifications/Hafele Catalog - Page# FC4.12: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Large Cover Cap, TAG Omni Track
  • Wall Track, TAG Omni Track
