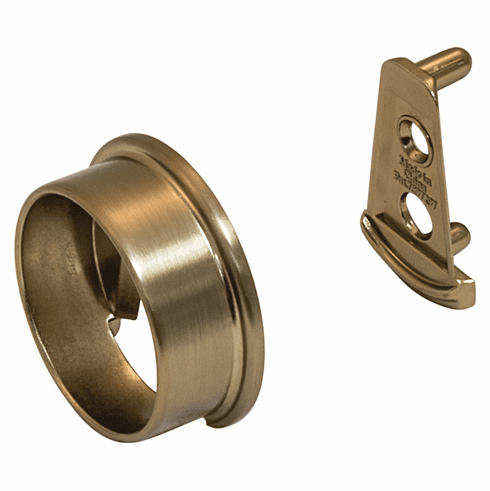

Hafele 803.39.910 Wardrobe Tube End Support, Synergy Elite Collection Matt gold

Product Information

• Description

  Manufacturer: Hafele
  Item: 803.39.910

  Product Title: Wardrobe Tube End Support, TAG Synergy Elite Collection, Matt gold

  Category: Wardrobe Tube End Support, TAG Synergy Elite Collection,

  Item Details …

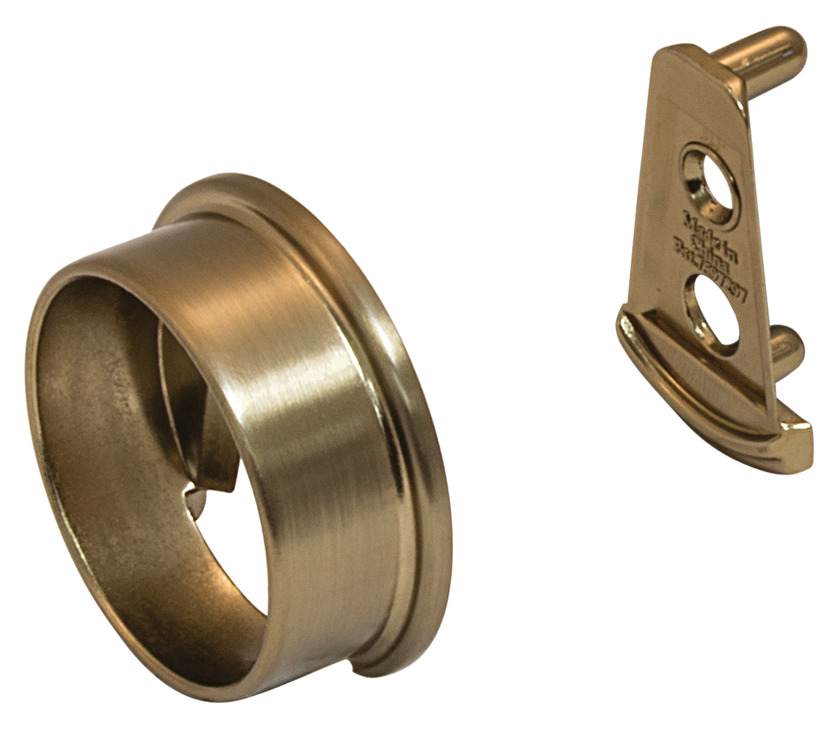

  - Side supports connect to the wedge shaped brackets

  - 32 mm (1 1/4") spacing with an additional screw hole for side panel mounting

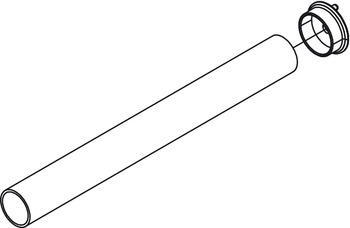

  - Unique two-part design allows the support to fully surround the tube ends

  - With two pins for 5 mm (3/16") holes

  - Diameter (inch) : 1 1/4"

  - Length (inch) : 8'

  - Area of application : TAG Synergy Elite Collection

  - Material : Zinc alloy

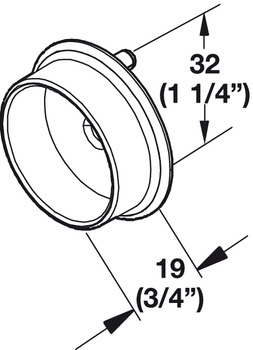

  - Diameter : 32.00 mm

  - Installation : Connect the wedge shaped brackets into line bore holes and side supports onto the end of the tube, then slide supports onto the wedge shaped brackets

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Synergy Elite Wardrobe Tube Product Guide

  TAG Synergy Elite Sell Sheet

  TCH_Furniture_Cabinetry_Hardware_2022|PageĀ 4.91A

  Hafele_Lighting_2024|PageĀ 222



• Required Products & Optional Accessories

  Optional Accessories:



  • Zip-R Screw, Flat Countersunk Head, #2 Phillips, with Nibs
  • Zip-R Screw, Flat Countersunk Head, #2 Phillips Drive
  • Zip-R Screw, Flat Countersunk Head, #2 Square Drive
  • Round Wardrobe Tube, TAG Synergy Elite Collection
