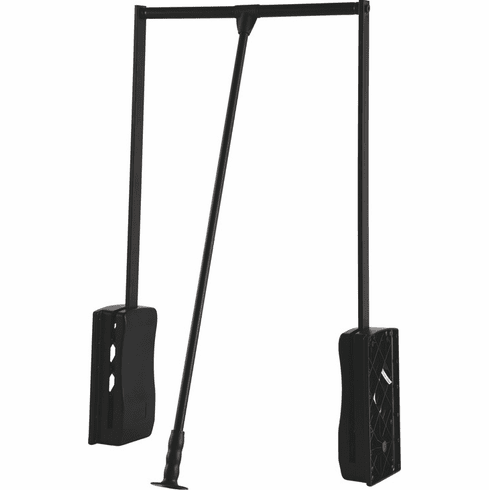

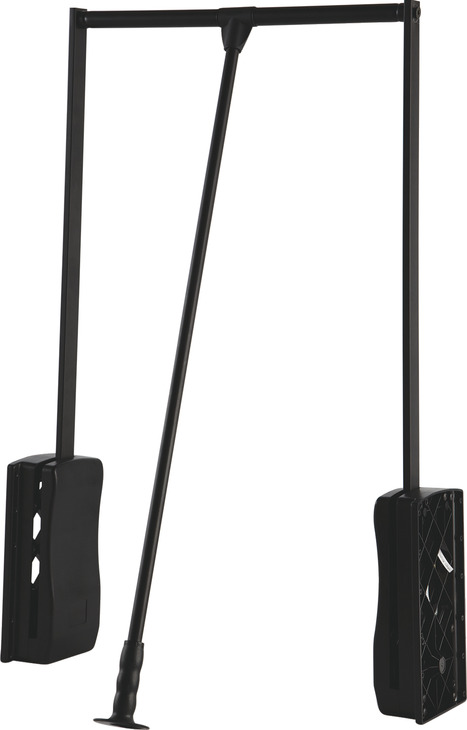

Hafele 805.31.323 Wardrobe Lift, 33 lbs. Weight Capacity For inside closet width: 890 - 1210 mm (35 1/16" - 47 5/8"), Black

Product Information

• Description

  Manufacturer: Hafele
  Item: 805.31.323

  Product Title: Wardrobe Lift, 33 lbs. Weight Capacity, For inside closet width: 890 - 1210 mm (35 1/16" - 47 5/8"), Black

  Category: Wardrobe Lift, 33 lbs. Weight Capacity, For inside closet width: 890 - 1210 mm (35 1/16" - 47 5/8")

  Item Details …

  - Adjustable width

  - Optional poles are available for higher installation

  - Ergonomic handle

  - Reinforced T-bracket

  - Bumpers attached to add protection to the housing when lowering the clothes bar

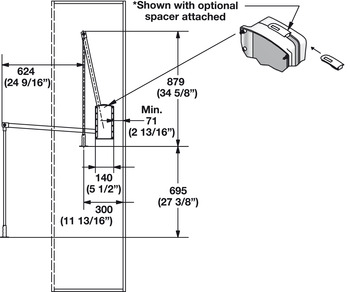

  - Spacers included to provide optional distance between the back wall the hangers

  - For internal cabinet width : 890 – 1,200 mm

  - Load bearing capacity : 15 kg

  - Load bearing capacity : 33 lbs

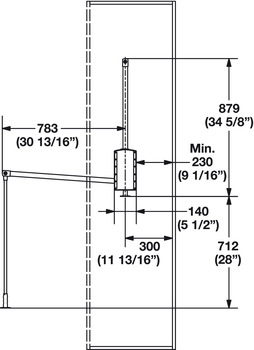

  - Height (inch) : 19 3/8"/9 11/16"

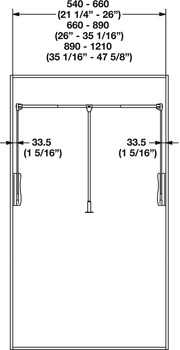

  - For internal cabinet width : 35 1/16" - 47 5/8"

  - Material : Arms and pole: SteelHousing: Plastic

  - Min. installation height : 909.00 mm

  - Installation : For attachment to closet sides with screws.

  - Supplied with:

  - Mounting hardware

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Wardrobe Lift Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 4.149



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_4.96-4.97.pdf

  Hafele 805.31.323, 805-31-323, 80531323, 805.31


  Specifications/Hafele Catalog - Page# FC4.70: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Home & Closet Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Steel Pole, for Wardrobe Lifts
