Hafele 833.72.089 LOOX5, LED2022, 12 volt, 1.5 watt, recessed, round, 5000K, chrome polished

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.089

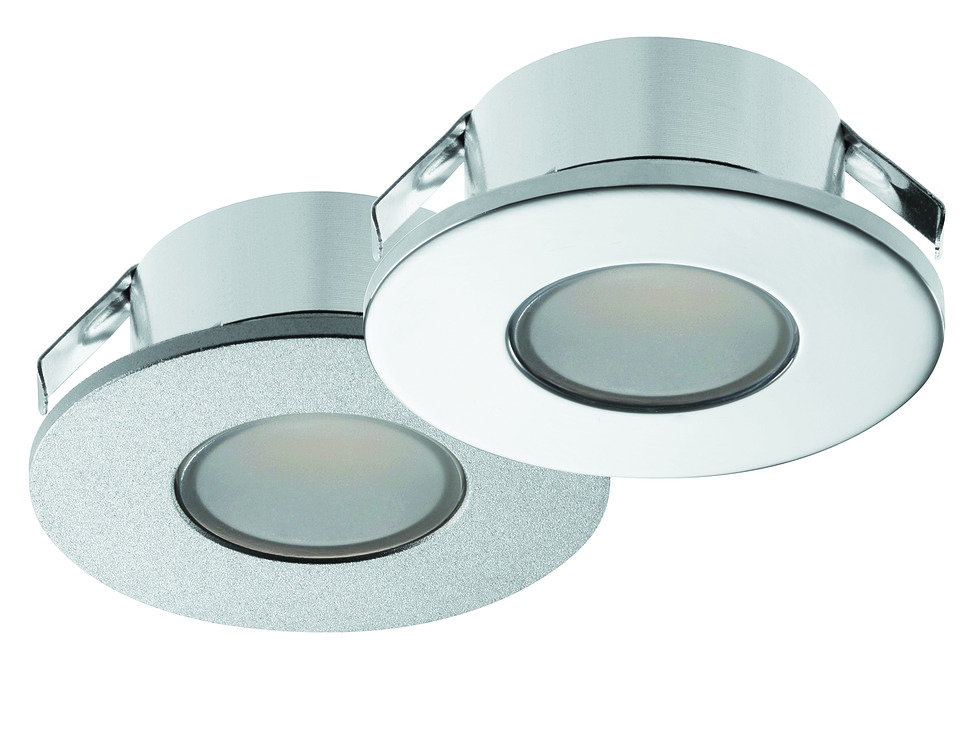

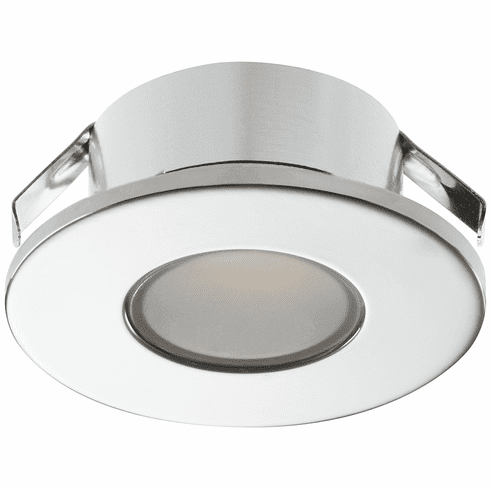

  Product Title: Recess/surface mounted downlight, Häfele Loox5 LED 2022 12 V aluminum, Warm white 3000 K, silver colored anodized, energy efficiency class: A+, Warm white 3000 k, anodized silver

  Category: Recess/surface mounted downlight, Häfele Loox5 LED 2022 12 V aluminum, round

  Item Details …

  - suitable for mini hinge drill hole Ø 26 mm

  - High-quality metal housing

  - Splash proof for use in wet rooms

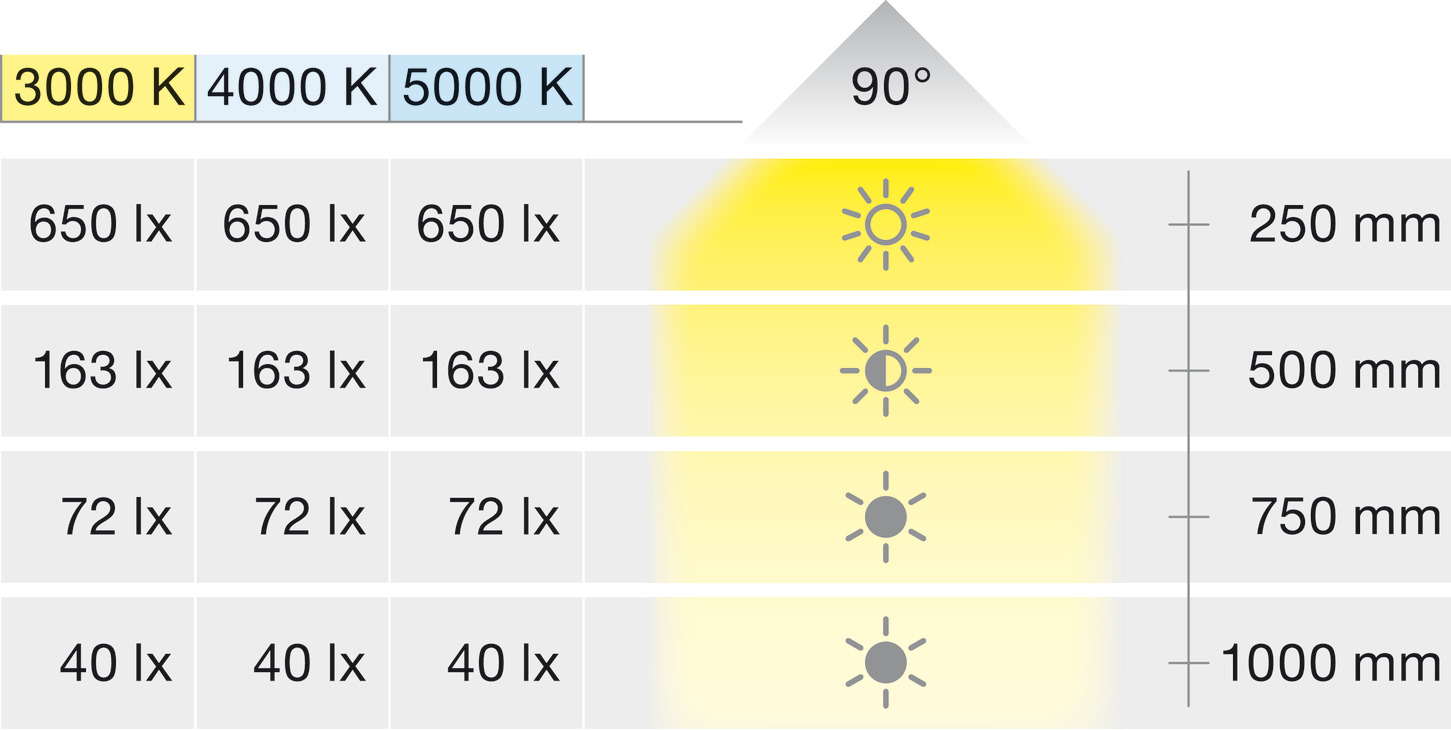

  - Luminous flux : 105 lm

  - Nominal voltage : 12.00 V

  - Wattage : 1.50 W

  - Luminous efficacy : 70 lm/W

  - Drill hole Ø : 26.00 mm

  - Model : LED 2022

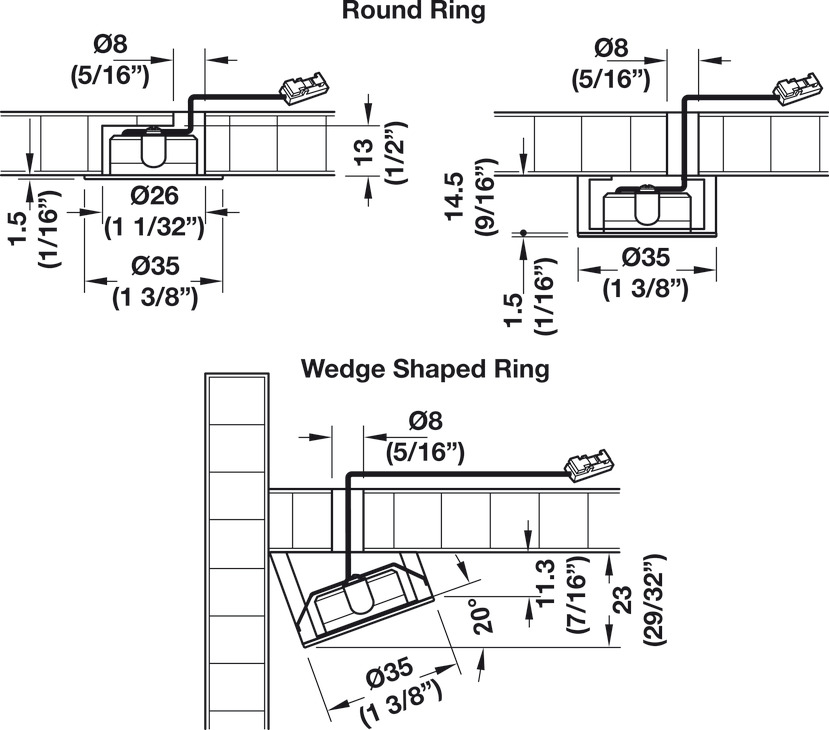

  - Installation : For mounting in drilled hole and for clamp fixing, or for screw fixing

  - Installation reference : suitable for mini hinge drill hole Ø 26 mmHigh-quality metal housingSplash proof for use in wet rooms

  - Version : Suitable for mini hinge drill hole Ø 26 mm

  - Energy efficiency class : G

  - Dimmable : yes

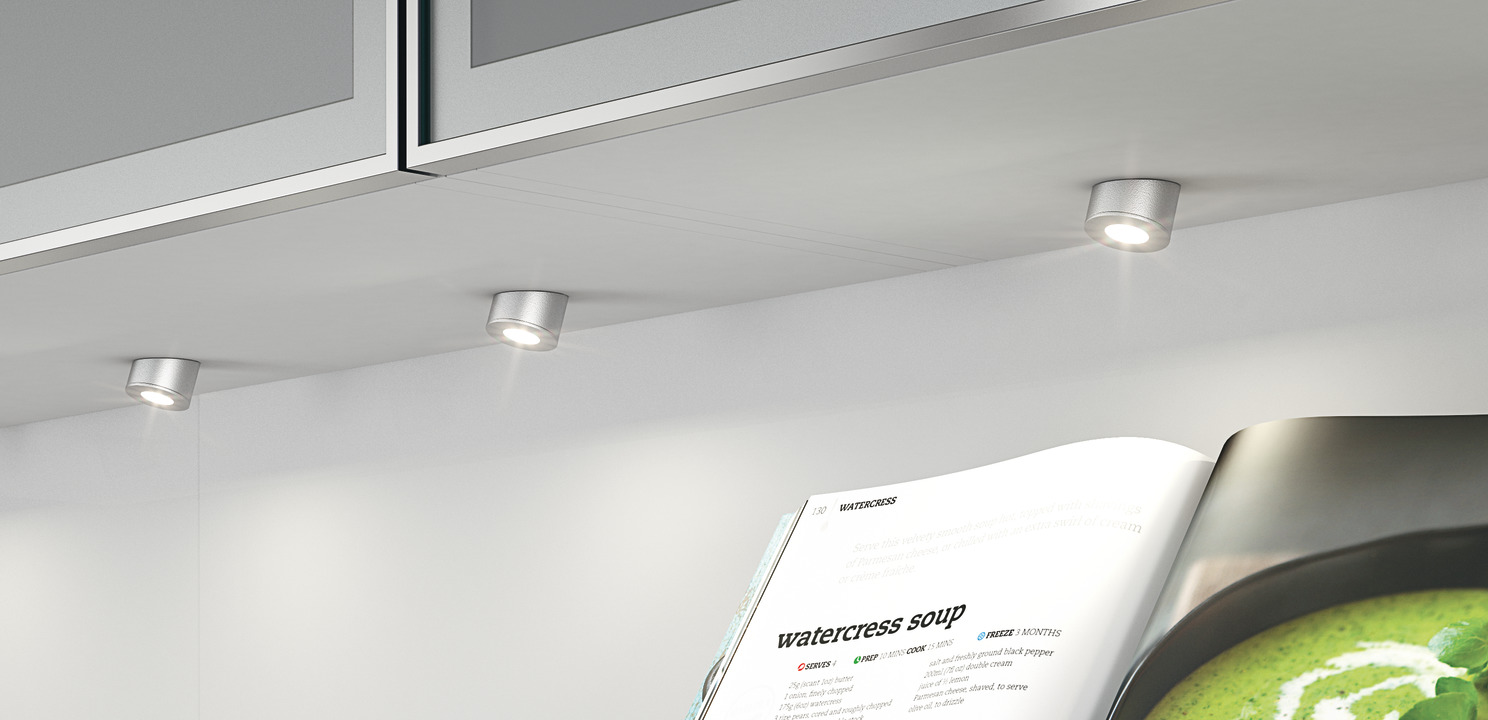

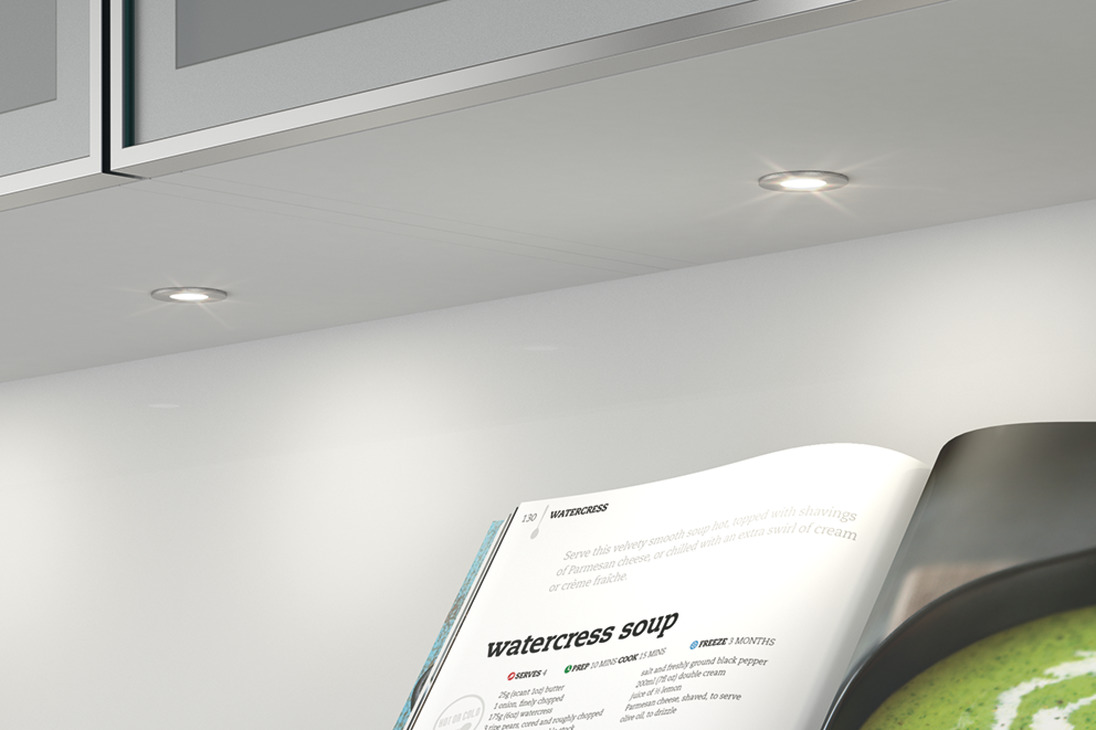

  - Area of application : Shelving units, display cabinets, shelves

  - Housing material : Aluminum

  - Degree of protection : IP44 (recess mounted light); IP20 (surface mounted downlight)

  - Cable length : 2,000.00 mm

  - Supplied with:

  - 1 light with lead


  Additional Information …

  The degree of protection IP44 is reduced to IP20 when surface mounting or recess mounting with through hole.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for LED 2022

  EU Declaration of Conformity

  Hafele_Lighting_2024|Page 52



• Required Products & Optional Accessories

  Optional Accessories:



  • Trim Ring, Surface Mounted, for Häfele Loox LED 2022
  • Trim Ring, Wedged, Surface Mounted, for Häfele Loox LED 2022
  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
