Hafele 833.72.323 Modular Puck Light, Loox, LED 2025, 12 V Cool white 5000 K,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.323

  Product Title: Modular Puck Light, Modular, monochrome, LED 2025, aluminum, 12 V, Drill hole ?: 58 mm (2 5/16"); Compatible with Loox5 lead with snap-in connector, Cool white 5000 K

  Category: Modular Puck Light, Modular, monochrome, LED 2025, aluminum, 12 V, Drill hole ?: 58 mm (2 5/16"); Compatible with Loox5 lead with snap-in connector

  Item Details …

  - CRI 90 lights are Title 24 Compliant

  - CRI 90 lights offer more vibrant, true color rendering than lower CRI products

  - Compatible with Loox and E-series drivers only

  - modular system: wide range of design options with interchangeable housings and leads

  - Light with integrated cable socket for quick conversion

  - high luminous efficiency

  - Nominal voltage : 12.00 V

  - Wattage : 3.80 W

  - Drill hole Ø : 58.00 mm

  - Housing color/finish : silver colored, untreated

  - Model : LED 2025

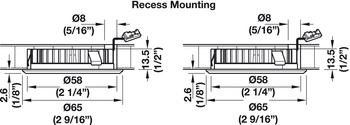

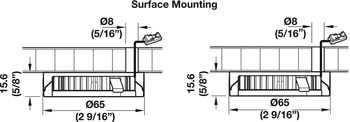

  - Installation : For mounting in drilled hole and for clamp fixing, or for screw fixing

  - Installation reference : modular system: wide range of design options with interchangeable housings and leadsLight with integrated cable socket for quick conversionhigh luminous efficiency

  - Version : Modular design

  - Drill hole Ø : 2 5/16"

  - Height (inch) : 17/32"

  - Height H : 3/5"

  - Dimmable : yes

  - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

  - Material : Aluminum

  - Order reference

  - Please order housing and lead separately.

  - Supplied with:

  - 1 light module


  Additional Information …

  The degree of protection IP44 is reduced to IP20 when surface mounting or recess mounting with through hole.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Loox LED 2025/2026

  EU Declaration of Conformity

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024|Page 44



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Surface Mounted Housing Trim Ring, for Loox LED 2025/2026, 2091/3091, 2092/3092 (choose one):


  • Round, Silver colored Square, Silver colored Round, Black Round, Matt nickel Round, White Square, Black Square, Matt nickel Square, White Round, Bronze brown Round, Anthracite Round, Stainless steel colored Square, Anthracite Square, Bronze brown Square, Stainless steel colored

    833.72.124 833.72.125 833.72.160 833.72.162 833.72.163 833.72.164 833.72.166 833.72.167 833.72.192 833.72.193 833.72.194 833.72.195 833.72.196 833.72.197

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Surface Mount Trim Ring, for Surface Mounted Modular Pucks for Häfele Loox5 (choose one):


  • Round, Silver colored Round, Black Round, White Round, chrome plated, shiny Round, brass colored Round, Copper plated Square, Silver colored Square, Black Square, White Square, chrome plated, shiny Square, brass colored Square, Copper plated drill hole: Ø58 mm (2 5/16"), stainless steel colored nickel plated drill hole: Ø58 mm (2 5/16"), stainless steel colored nickel plated

    833.72.512 833.72.513 833.72.514 833.72.515 833.72.516 833.72.517 833.72.518 833.72.519 833.72.520 833.72.521 833.72.522 833.72.523 833.72.526 833.72.527

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Recess Mounted Housing Trim Ring, for Loox LED 2025/2026 (choose one):


  • round, Silver colored square, silver colored round, Black round, Matt nickel round, White square, black square, matt nickel square, white round, Anthracite round, Brown round, Stainless steel colored square, Anthracite square, Brown square, Stainless steel colored

    833.72.126 833.72.127 833.72.168 833.72.170 833.72.171 833.72.172 833.72.174 833.72.175 833.72.380 833.72.381 833.72.382 833.72.383 833.72.384 833.72.385

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Recess Mount Trim Ring, for Recess Mounted Modular Pucks for Häfele Loox5 (choose one):


  • Round, Silver colored Round, Black Round, White Round, chrome plated, shiny Round, brass colored Round, Copper plated Square, Silver colored Square, Black Square, White Square, chrome plated, shiny Square, brass colored Square, Copper plated drill hole: Ø58 mm (2 5/16"), stainless steel colored nickel plated drill hole: Ø58 mm (2 5/16"), stainless steel colored nickel plated

    833.72.500 833.72.501 833.72.502 833.72.503 833.72.504 833.72.505 833.72.506 833.72.507 833.72.508 833.72.509 833.72.510 833.72.511 833.72.524 833.72.525

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
