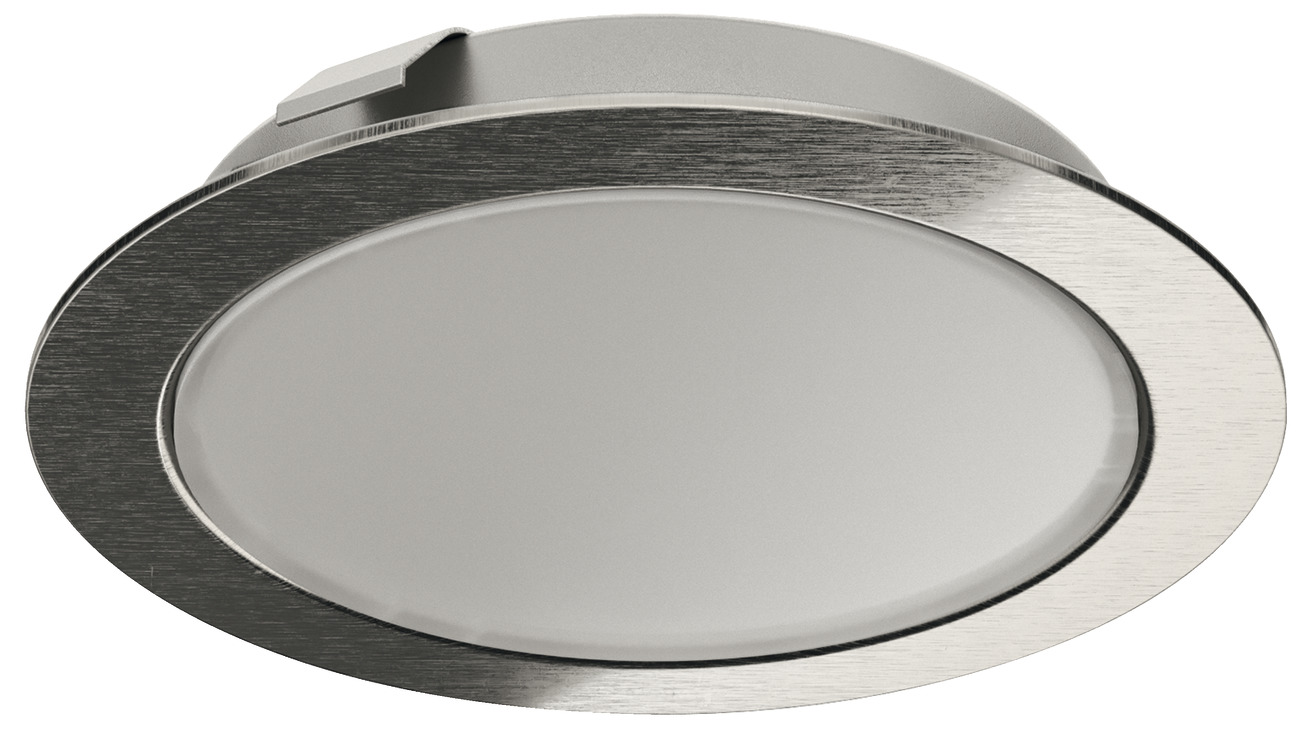

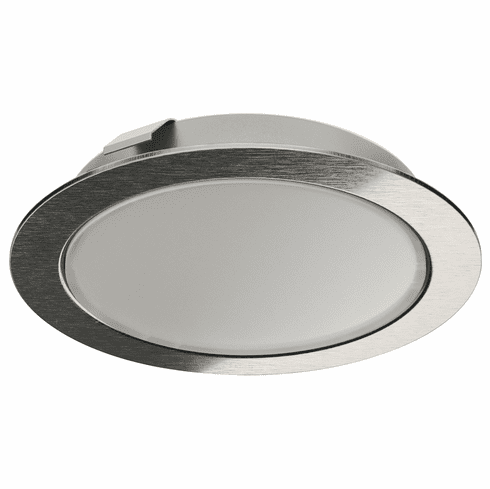

Hafele 833.72.392 Recess/Surface Mounted Downlight, Loox LED 2047, 12 V Cool white 5000 K, stainless steel colored,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.392

  Product Title: Recess/Surface Mounted Downlight, Monochrome, Loox LED 2047, 12 V, Drill hole ?: 55 mm (2 3/16"), Cool white 5000 K, stainless steel colored

  Category: Recess/Surface Mounted Downlight, Monochrome, Loox LED 2047, 12 V, Drill hole ?: 55 mm (2 3/16")

  Item Details …

  - CRI 90 lights are Title 24 Compliant

  - CRI 90 lights offer more vibrant, true color rendering than lower CRI products

  - High-quality metal housing

  - Homogeneous illumination

  - Dimmable

  - With frosted glass cover and steel housing components

  - Optional surface mounted housing provides flexibility in installation

  - Nominal voltage : 12.00 V

  - Wattage : 3.00 W

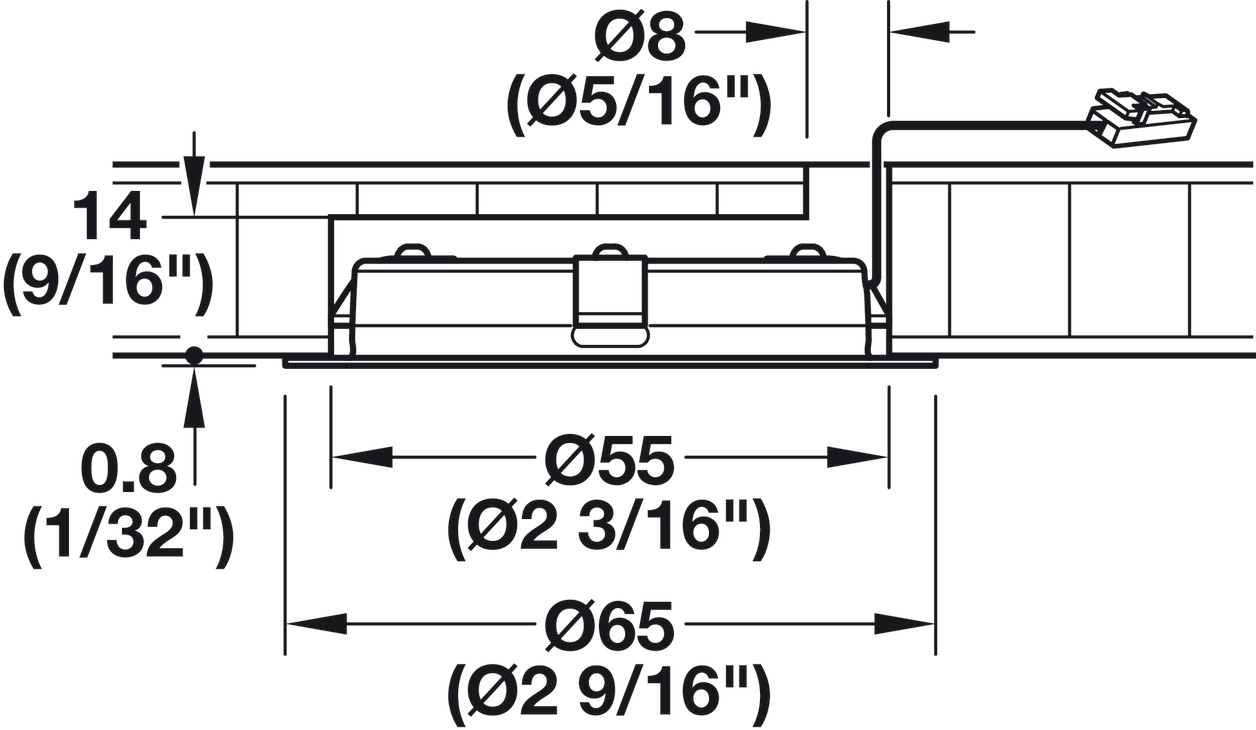

  - Drill hole Ø : 55.00 mm

  - Model : LED 2047

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : High-quality metal housingHomogeneous illuminationDimmableWith frosted glass cover and steel housing componentsOptional surface mounted housing provides flexibility in installation

  - Energy efficiency class : G

  - Drill hole Ø : 2 3/16"

  - Height (inch) : 1/2"

  - Dimmable : yes

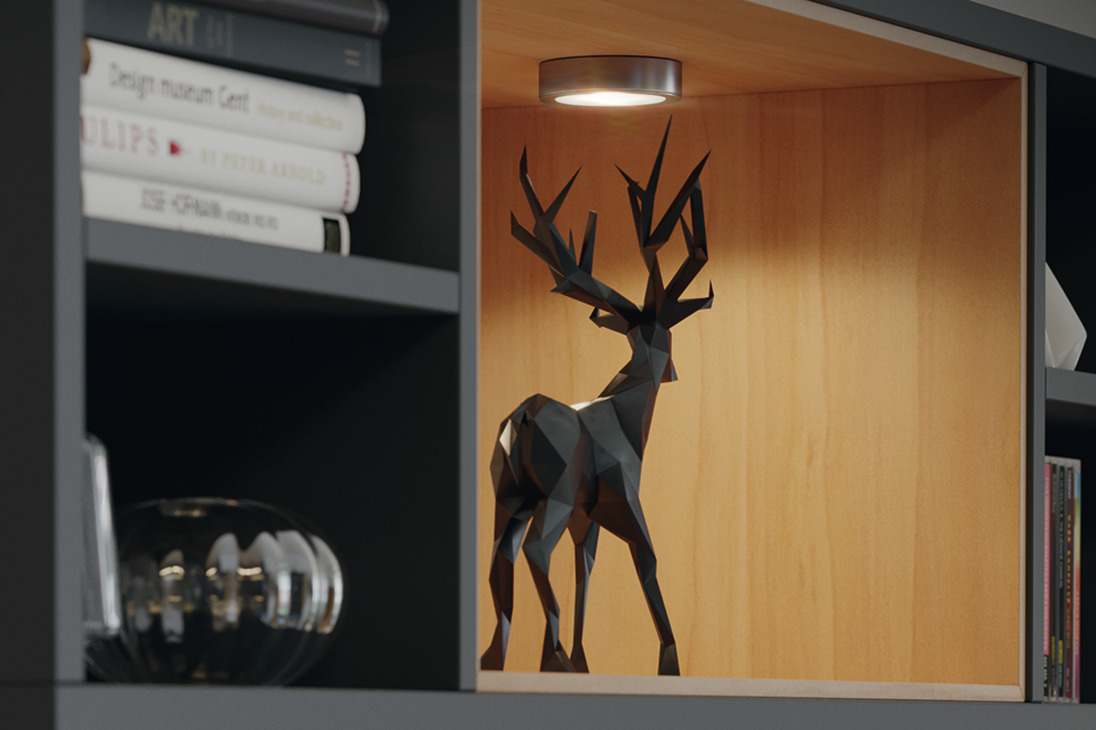

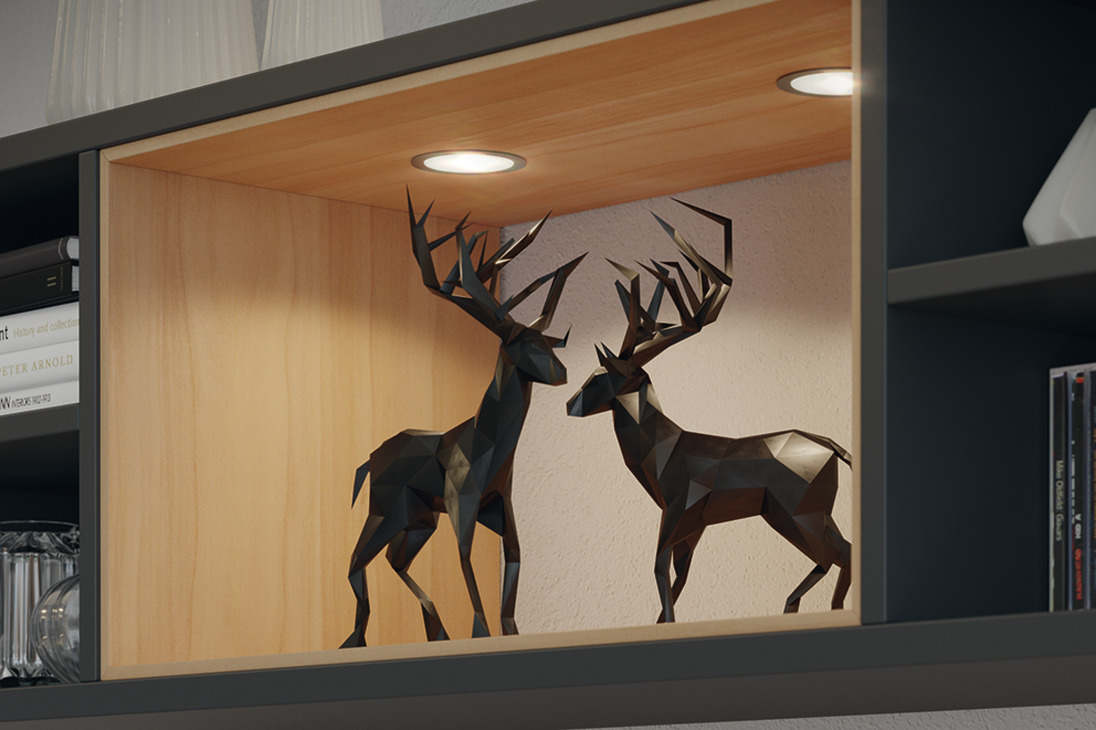

  - Area of application : For display cabinets, shelving units and shelves

  - Housing material : Steel

  - Degree of protection : IP20

  - Cable length : 2,000.00 mm

  - Supplied with:

  - 2m (78 3/4") lead


  Additional Information …

  With surface mount trim rings, the protection is IP 20

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Loox LED 2047

  EU Declaration of Conformity

  Loox – Electrical Code Compliance



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

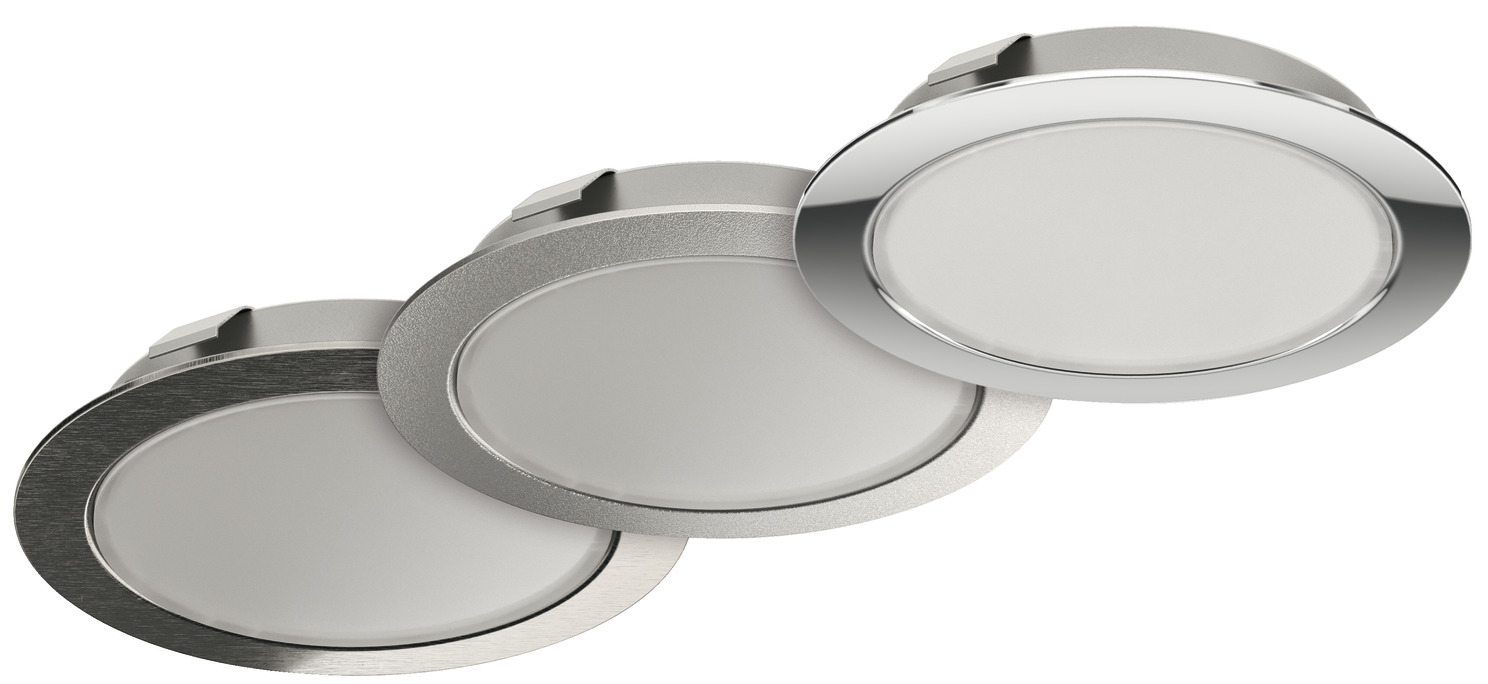

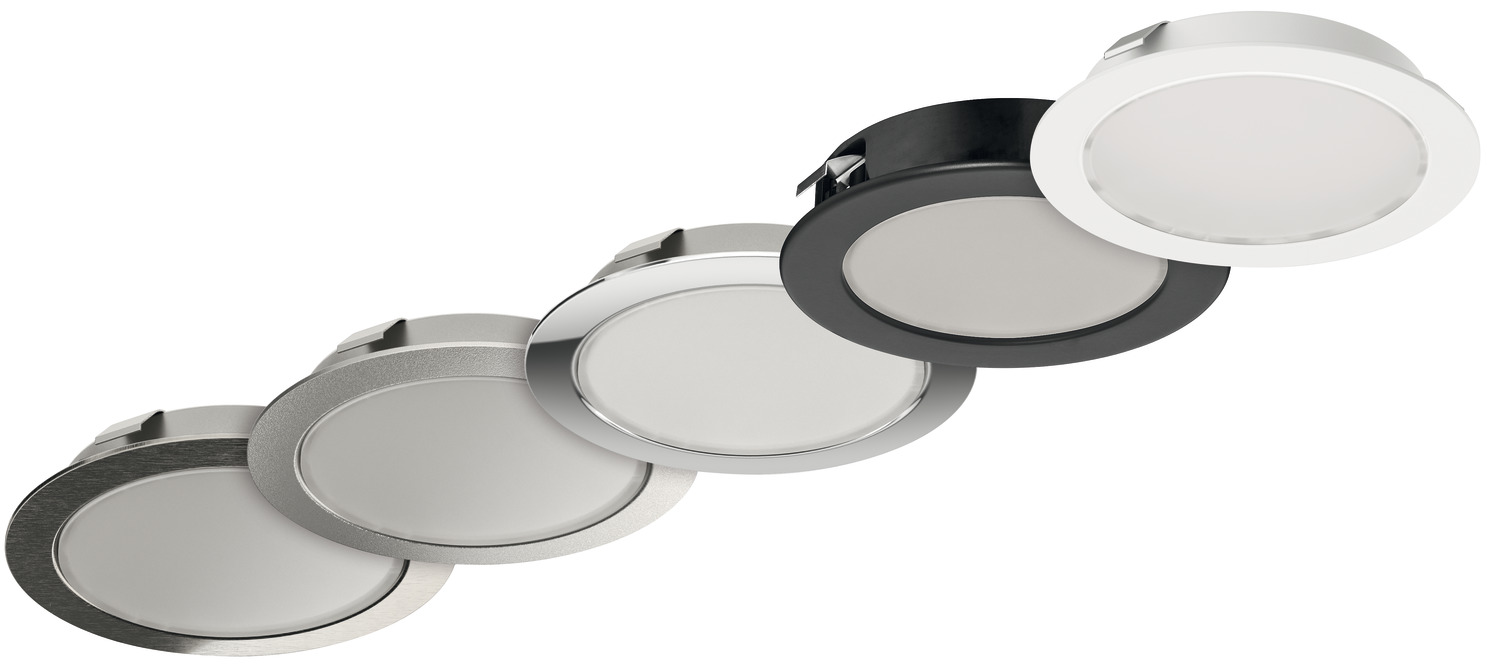

  Surface Mounted Ring, for Loox LED 2020/2047/2048/3038/3039 (choose one):


  • round, Matt nickel round, Black round, Polished chrome round, Silver colored round, Stainless steel

    833.72.800 833.72.801 833.72.802 833.72.803 833.72.804

    Click to order Click to order Click to order Click to order Click to order



  Adapter, Loox device – Loox5 driver (choose one):


  • For connecting to Loox5 driver, Voltage: 12 V, max. connected wattage: 42 W, length 50 mm

    833.95.753

    Click to order



  Optional Accessories:



  • 6 Way Distributor, Häfele Loox5, Box to Box with Switching Function, 12 V
