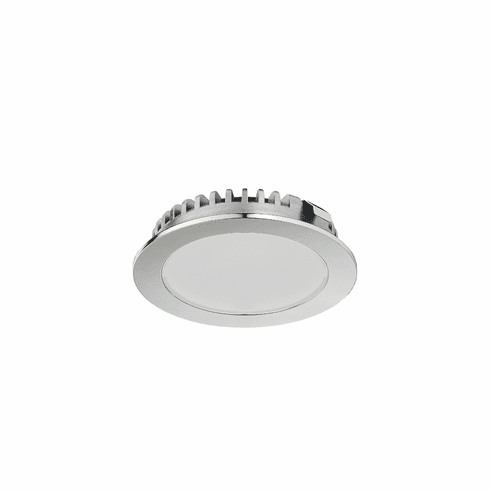

Hafele 833.72.530 LED 2094 12V puck light, 2.5W, CRI90, 2700K, chrome, 2 meter cable

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.530

  Product Title: Recess Mounted Downlight, Round, Häfele Loox LED 2094, zinc alloy, 12 V, Aluminum, Light color: Warm white 2700 K, luminous flux: 135 lm, chrome colored

  Category: Recess Mounted Downlight, Häfele Loox5 LED 2094, 12 V, Aluminum

  Item Details …

  - Large light emission surface, homogeneous appearance

  - Nominal voltage : 12.00 V

  - Wattage : 2.50 W

  - Color rendering index Ra : >90

  - Drill hole Ø : 58.00 mm

  - Number of LEDs : 6

  - Model : LED 2094

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : Drill hole ? from 58 - 60 mm possible.

  - Energy efficiency class : G

  - Drill hole Ø : 2 5/16"

  - Dimmable : yes

  - Area of application : For display cabinets, shelving units and shelves

  - Housing material : Aluminum

  - Diffuser material : Plastic

  - Design : Plastic panel

  - Life time : 30,000 h

  - Color rendering index R9 : >50

  - Degree of protection : IP44 (recess mounted light); IP20 (surface mounted downlight)

  - Cable length : 2,000.00 mm

  - Supplied with:

  - 1 light with 2000 mm (78 3/4") lead

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for LED 2094, LED 3094

  Loox – Electrical Code Compliance

  Hafele_Lighting_2024| Page 54



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome) (choose one):


  • with programmable switching input, Voltage 12 V, max. connected wattage 60 W

    850.00.042

    Click to order



  Optional Accessories:



  • Housing for undermounted light, Round, for Häfele Loox LED 2094/3094
