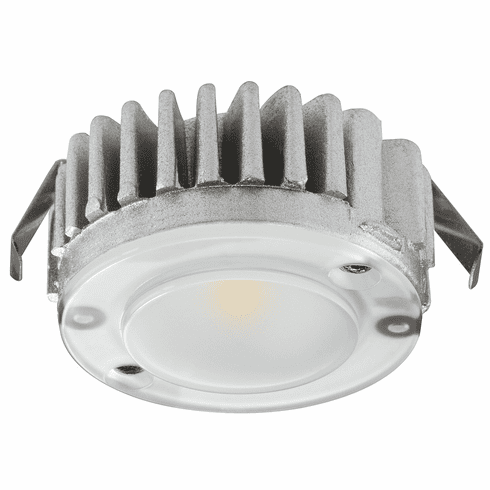

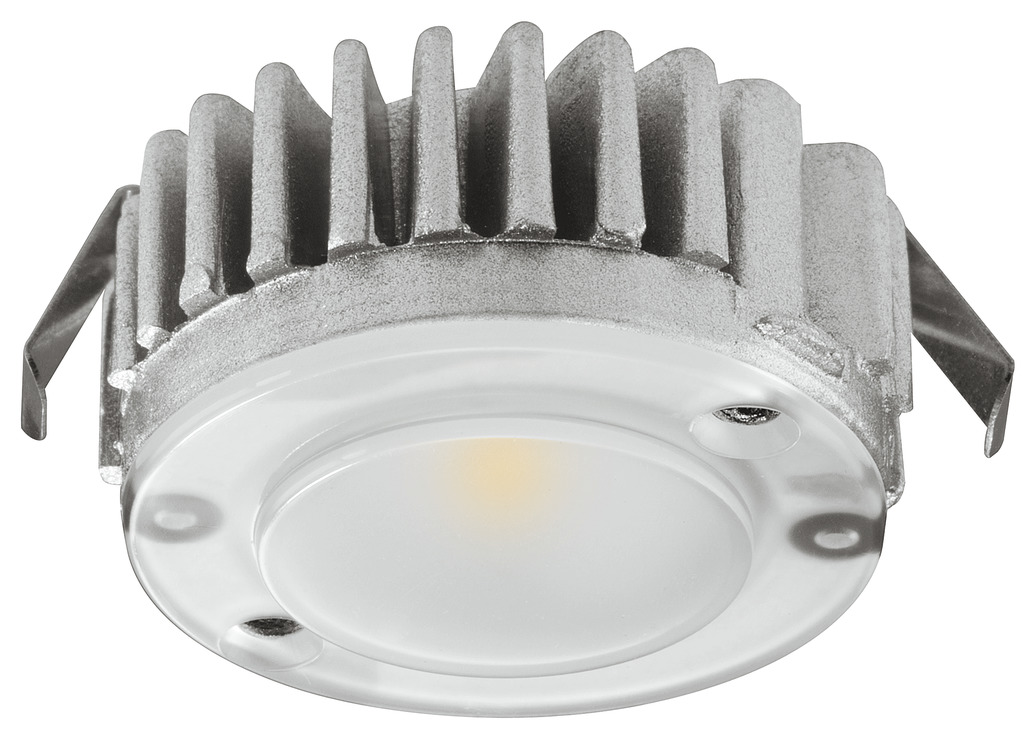

Hafele 833.72.562 LOOX5 LED2040, 12 volt, modular puck light, 1.5 watts, 4000K, aluminum, 35mm, CRI>90

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.562

  Product Title: Modular Puck Light, Häfele Loox5 LED 2040 12 V, 1.5 watts, aluminum, 35mm, CRI>90, IP20/45, Cool white 4000 K

  Category: Modular Puck Light, Häfele Loox5 LED 2040 12 V, 1.5 watts, aluminum, 35mm, CRI>90, IP20/45

  Item Details …

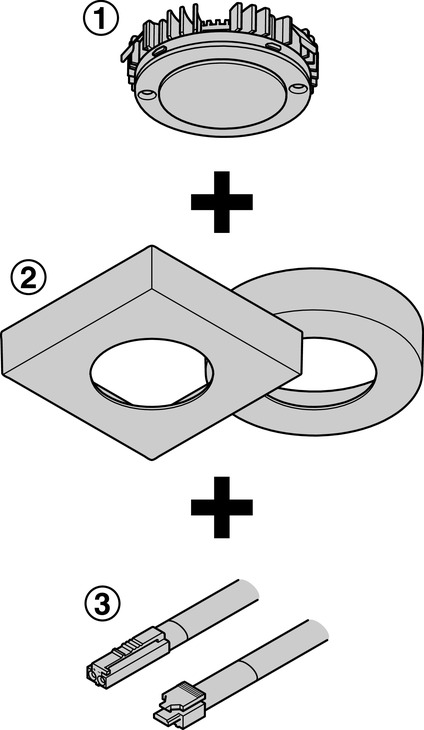

  - modular system: wide range of design options with interchangeable housings and leads

  - Light with integrated cable socket for quick conversion

  - Suitable for concealed hinge drill hole

  - Nominal voltage : 12.00 V

  - Wattage : 1.50 W

  - Drill hole Ø : 35.00 mm

  - Housing color/finish : silver colored

  - Model : LED 2040

  - Installation : For mounting in drilled hole and for clamp fixing, or for screw fixing

  - Version : With snap-in connector

  - Energy efficiency class : G

  - Dimmable : yes

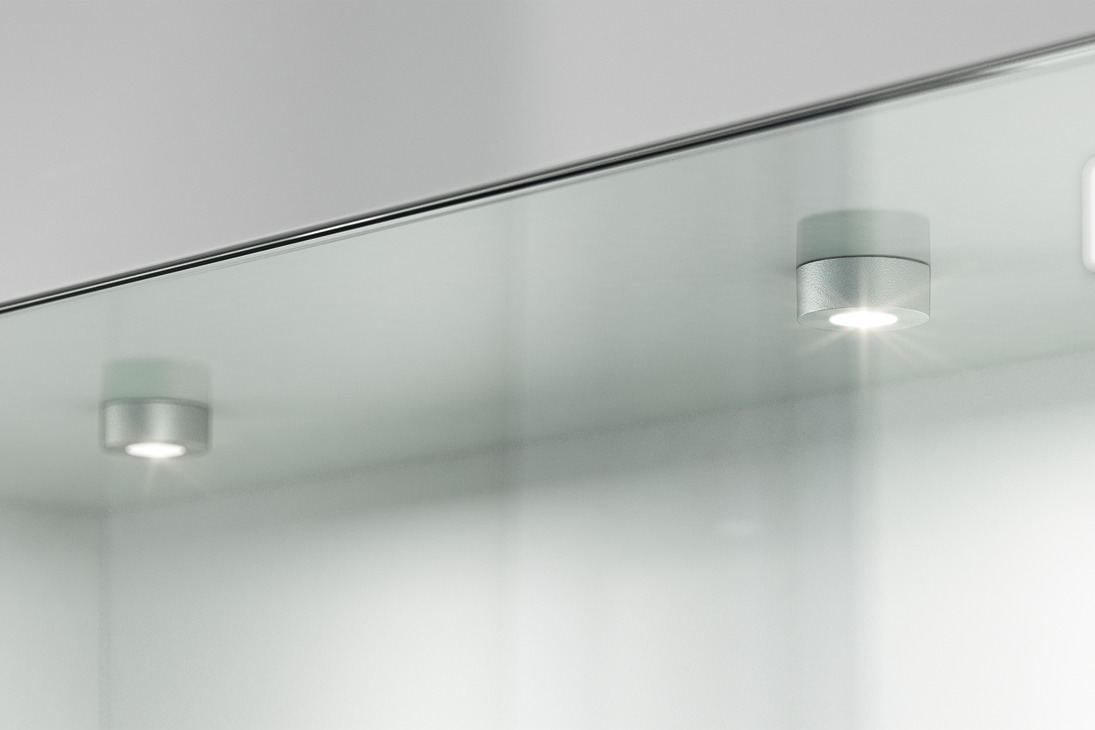

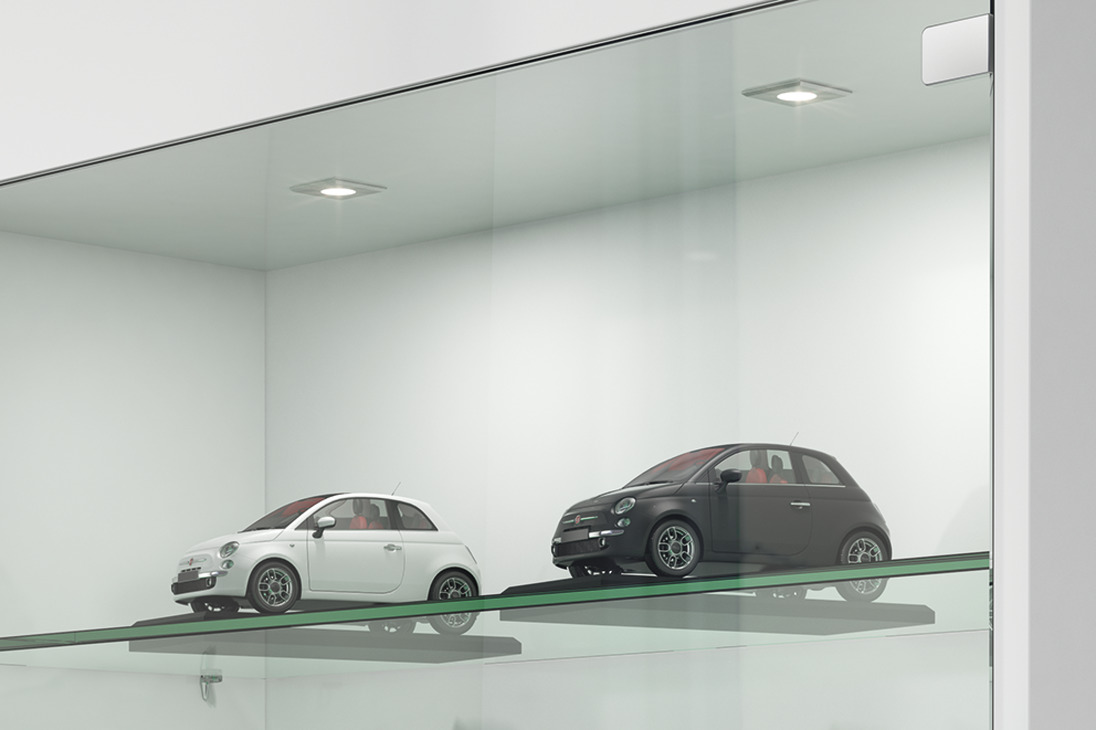

  - Area of application : Kitchen and living room furniture, display cabinets

  - Housing material : Aluminum

  - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

  - Order reference

  - Please order housing and lead separately.

  - Supplied with:

  - 1 light module


  Additional Information …

  The degree of protection IP45 is reduced to IP20 when surface mounting or recess mounting with through hole.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Loox LED 2040 Mounting Instructions

  Installation instructions for LED 2040/3008

  Certificate

  Hafele_Lighting_2024|Page 48



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Housing for LED light, for Häfele Loox and Häfele Loox5 LED drill hole ? 35 mm (choose one):


  • round, Silver colored square, Silver round, Black round, Matt nickel round, White square, Black square, Matt nickel square, White

    833.72.145 833.72.146 833.72.184 833.72.186 833.72.187 833.72.188 833.72.190 833.72.191

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Housing for LED light, for Häfele Loox and Häfele Loox5 LED drill hole ? 35 mm (choose one):


  • round, Silver colored square, Silver colored round, Black round, Matt nickel round, White square, Black square, Matt nickel square, White

    833.72.143 833.72.144 833.72.176 833.72.178 833.72.179 833.72.180 833.72.182 833.72.183

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
