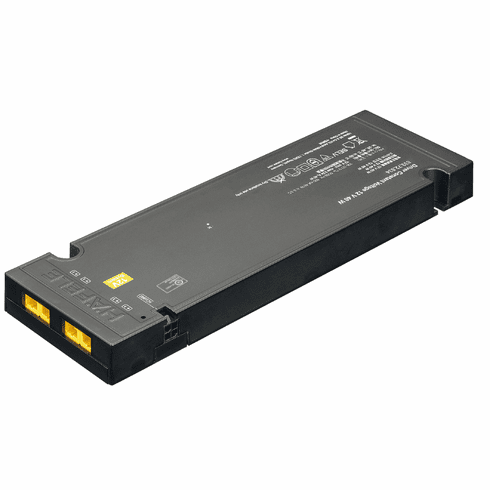

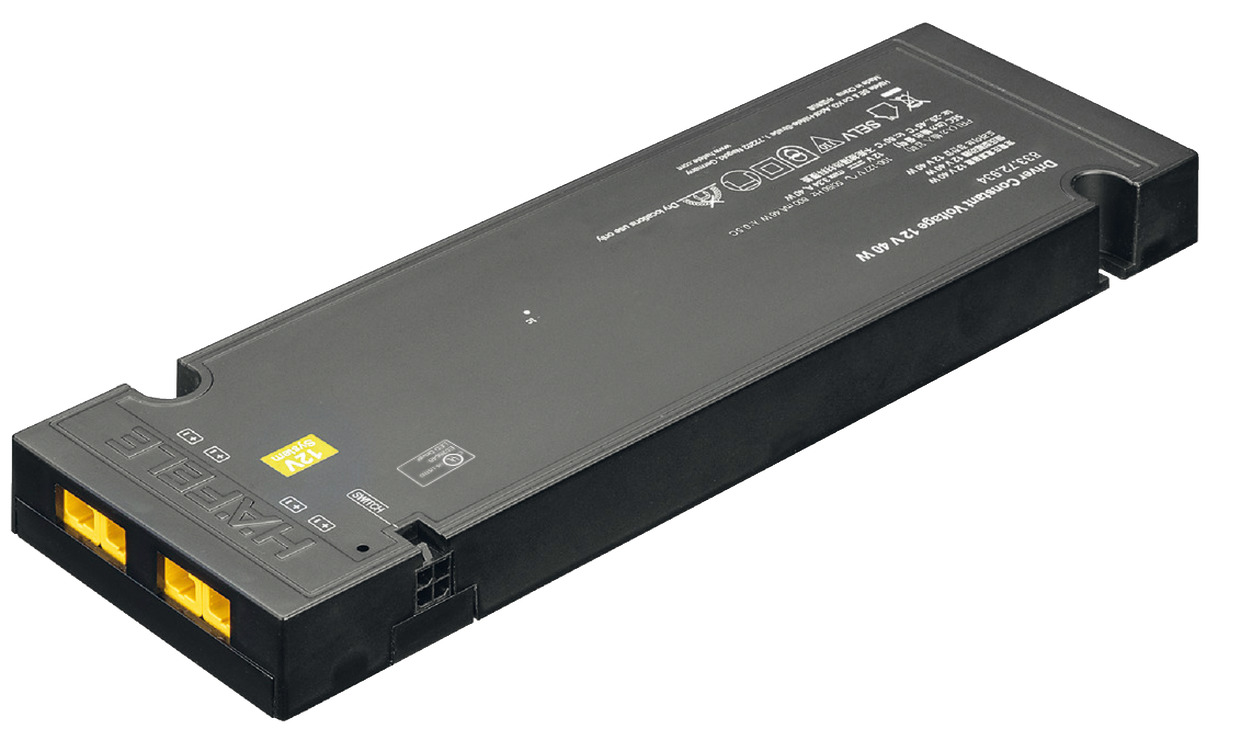

Hafele 833.72.934 Loox5 ECO Driver with switch port, 100-120V, 12V, 40W

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.934

  Product Title: Driver, Häfele Loox5 4-Port Series 12 V, With switching function, 40 W

  Category: Driver, Häfele Loox5 4-Port Series 12 V, With switching function

  Item Details …

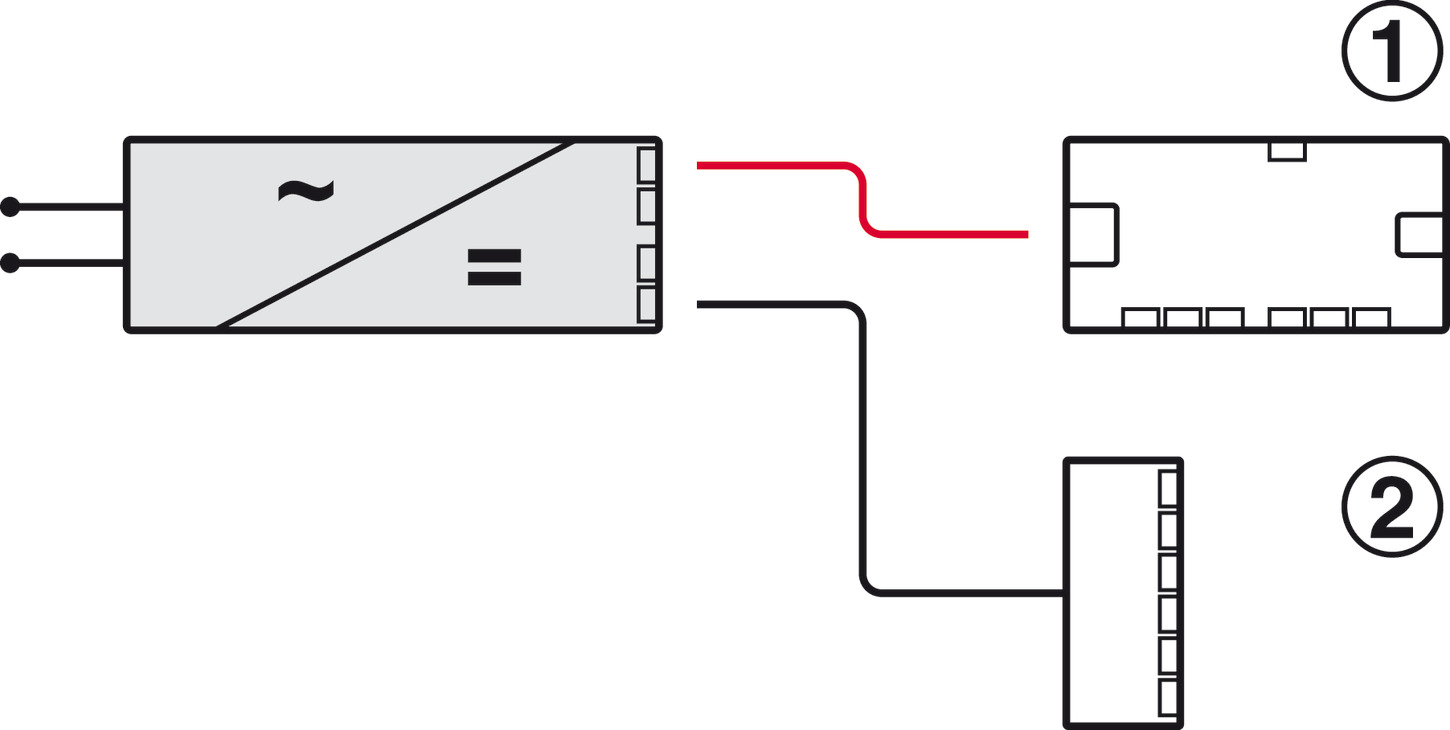

  - Four Loox5 output ports

  - Switch port

  - Mains voltage : 100?–?127 V

  - Mains frequency : 50?–?60 Hz

  - With switching function : Yes

  - Ambient temperature : -25–45 °C

  - Number of switch connections : 1.00

  - Height (inch) : 5/8"

  - Output voltage : DC

  - Area of application : Ideal for smaller installations

  - Version : 4-Port Series

  - Material : Plastic

  - Color/finish : Black

  - Connected output ports : 4 x sockets, Loox5 2-pin 12 V

  - Control input ports : 1 x socket, Loox switch

  - Life time : 30,000 hours

  - Installation : for glue fixing, With screws

  - Installation reference : Ensure that there is a sufficient air supply and circulation at the mounting location.

  - Order reference

  - Please order extension leads separately.

  - Supplied with:

  - 1 driver with mounting accessories

  - 1 US power cord


  Additional Information …

  For applications that require continuous operation, please use Loox5 power supplies with a service life of 50,000 H. Maximum lead length from the Loox5 driver to the device is 10,000 mm (393 11/16"). Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver. (12 V or 24 V).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Loox5 ECO drivers

  Hafele_Lighting_2024|Page 285



• Required Products & Optional Accessories

  Optional Accessories:



  • Extension lead, Häfele Loox5 monochrome, 12 V, 18 AWG
