Hafele 833.74.190 LED2042 12 volt direct current, 4.8watts per meter, blue, 15 meter roll, 26 x 26 x 3 centimeters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.190

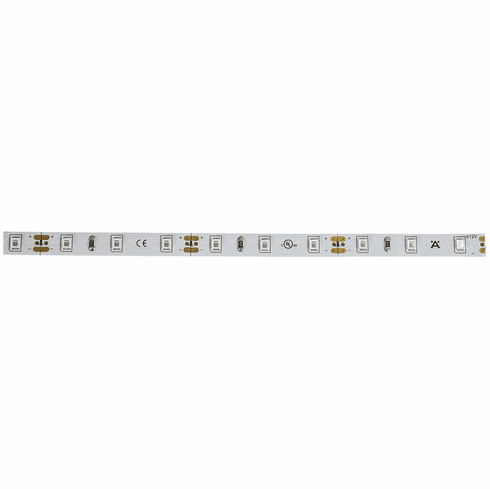

  Product Title: Flexible LED strip light, Häfele Loox5 LED 2042, 12 V, Single Color, (5/16") 8 mm, 60 LEDs/m, 4.8 W/m, blue

  Category: Flexible LED strip light, Häfele Loox5 LED 2042, 12 V, Single Color, (5/16") 8 mm, 60 LEDs/m, 4.8 W/m

  Item Details …

  - Nominal voltage : 12.00 V

  - Wattage/m : 4.80 W

  - Height (inch) : 1/16"

  - Length (inch) : 590 9/16"

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Strip height : 1.30 mm

  - Number of LEDs/m : 60

  - Life time : 20,000 h

  - Energy efficiency class : A+

  - Degree of protection : IP20

  - Installation reference : Self-adhesive with aluminum profile or cooling strip.

  - Order reference

  - Please order lead separately.

  - Aluminum profile recommended from 9.6 W/m.

  - Consider the width of clip connector when choosing an aluminum profile (see drawing).

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for LED 2042 coloured

  Loox – Electrical Code Compliance



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), AWG 18 (choose one):


  • Also for constant current strip lights, Length: 100 mm (4"), 5 A/18, 12V Also for constant current strip lights, Length: 2000 mm (78 3/4"), 5 A/18, 12V Also for constant current strip lights, Length: 500 mm (19 11/16"), 5 A/18

    833.93.736 833.95.700 833.95.701

    Click to order Click to order Click to order



  Interconnecting lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16") (choose one):


  • 5 A, 18 AWG, clip width 10 mm, also for constant current strip lights, Length: (2") 50 mm 5 A, 18 AWG, clip width 10 mm, also for constant current strip lights, Length: (19 11/16") 500 mm 5 A, 18 AWG, clip width 10 mm, also for constant current strip lights, Length: (78 3/4") 2,000 mm

    833.89.191 833.89.192 833.89.193

    Click to order Click to order Click to order



  Optional Accessories:



  • Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Corner connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
