Hafele 833.74.328 LED2061 12 volts direct current 9.6 watts per meter 2700K CRI90 5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.328

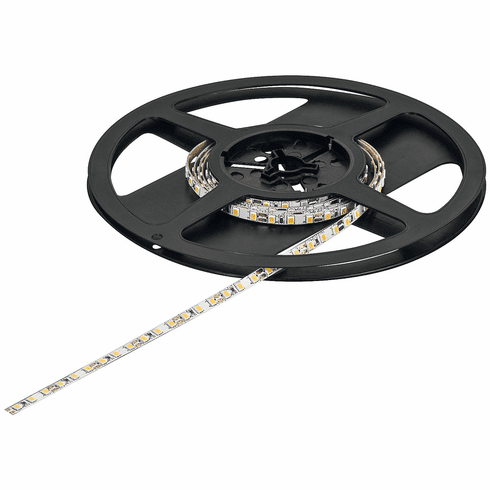

  Product Title: Flexible Strip Light, Häfele Loox5 LED 2061, 12 V, monochrome, (3/16") 5 mm, 120 LEDs/m, 9.6 W/m, Warm white 2700 K, (196 7/8") 5 m available length

  Category: Flexible Strip Light, Häfele Loox5 LED 2061, 12 V, monochrome, (3/16") 5 mm, 120 LEDs/m, 9.6 W/m

  Item Details …

  - Extremely narrow – width 5 mm

  - Nominal voltage : 12.00 V

  - Wattage/m : 9.60 W

  - Max. strip length (visual) : 3.00 m

  - Height (inch) : 1/16"

  - Width (inch) : 3/16"

  - Dimmable : yes

  - Area of application : Shelves, Shelving units, Display cabinets

  - Material : Plastic

  - Color : White

  - Strip width : 5.00 mm

  - Contact surface length : 3.00 mm

  - Life time : L80/B10: >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 2060 / 2061 / 3040 / 3041

  Safety Notes for LED Strip Lights

  UL Certificate E473379 - US

  Loox – Electrical Code Compliance



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5 for LED strip light monochrome 5 mm (3/16"), 12 V (choose one):


  • 3.5 A, 20 AWG, Length: 100 mm (4") 3.5 A, 20 AWG, Length: 2,000 mm (78 3/4")

    833.93.740 833.95.705

    Click to order Click to order



  Optional Accessories:



  • Interconnecting lead, Häfele Loox5 for LED strip light monochrome 5 mm (3/16')
  • Clip connector, Häfele Loox5 for LED strip light monochrome 5 mm (3/16")
  • Corner connector, Häfele Loox5 for LED strip light monochrome 5 mm (3/16")
  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
