Hafele 833.74.435 LED2089 12V, 9.6 Watts per meter, 2-Wire Multi-white, 2700-5000K, Silicon, 15 meters
Product Information
Description
Manufacturer: Hafele
Item: 833.74.435
Product Title: LED strip light, Häfele Loox5 LED 2089 Silicone, 12 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m, 15 m
Category: LED strip light, Häfele Loox5 LED 2089 Silicone, 12 V, Tunable White, 2-wire, (5/16") 8 mm, 2 x 120 LEDs/m, 9.6 W/m
Item Details …
- Tunable color temperature (2700K-5000K) without flickering
- Uses 2-Wire Cables; no adapters needed
- Color temperature : 2700?–?5,000 K
- Light color : Warm white to cool white
- Nominal voltage : 12.00 V
- Wattage/m : 9.60 W
- Luminous flux/m : 825?–?930 lm
- Luminous efficacy : 86?–?97 lm/W
- Max. strip length (visual) : 8.50 m
- Height (inch) : 1/16"
- Width (inch) : 5/16"
- Dimmable : yes
- Area of application : Store fixtures, Storage spaces, Working areas, Reading areas
- Version : 2-Wire Multi-white
- Material : Plastic
- Color : White
- Silicone tube width : 10.00 mm
- Silicone hose height : 4.80 mm
- Strip width : 8.00 mm
- Strip height : 1.30 mm
- Section length : 25.00 mm
- Contact surface length : 4.00 mm
- Number of LEDs/m : 120
- Life time : L80/B10 >50,000 h
- Color rendering index Ra : >90
- Color rendering index R9 : > 50
- Degree of protection : IP44
- Installation : Self-adhesive

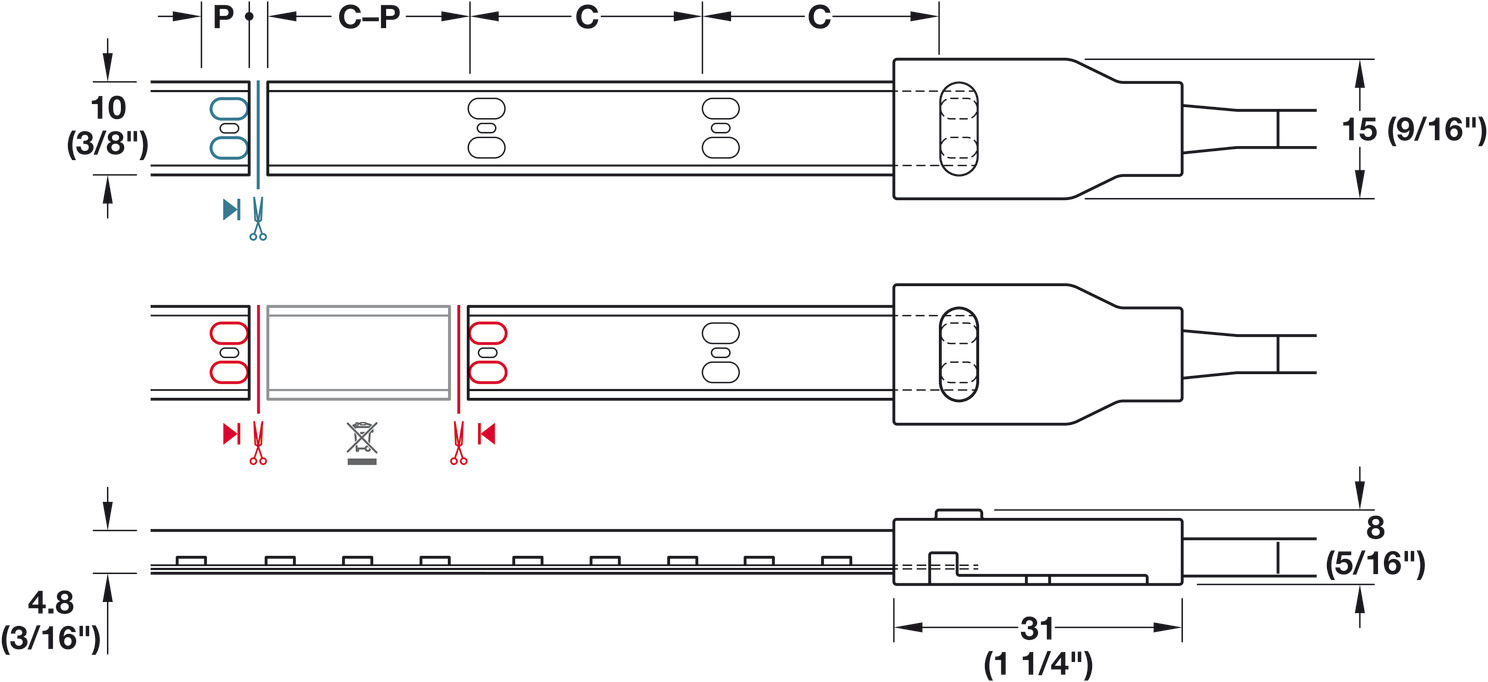

- Installation reference : Optimized light mixtureCool white and warm white LEDs in the smallest of spacesOptimal light mixture without flickeringCut LED strip light to length (one contact side remains on the remainderpiece; reusable). Connect LED strip lights (two contact sides required).C = section length P = length of contact surface
- Order reference
- Please order leads separately. Color control via Häfele Connect Mesh 4-way distributor 850.00.922. Please order separately.
- Color temperature can only be controlled via Häfele Connect Mesh 4-way
- distributor (850.00.912) and remote control or smartphone; or with 6-way
- distributor with manual 2-wire tunable white control (833.95.894). Please
- order separately.
Additional Information …
Maximum visual strip length applies to an imperceptible drop in luminous flux of max. 30%. Maximum wattage-dependent strip length on the driver, see technical data for LED strip lights. Remote control only via Häfele Connect Mesh 6-way distributor with multi-white adapter and remote control or smartphone.Data Sheet
