Hafele 833.74.460 LED 2068 12V, 9.6 W/m, Blue, 5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.74.460

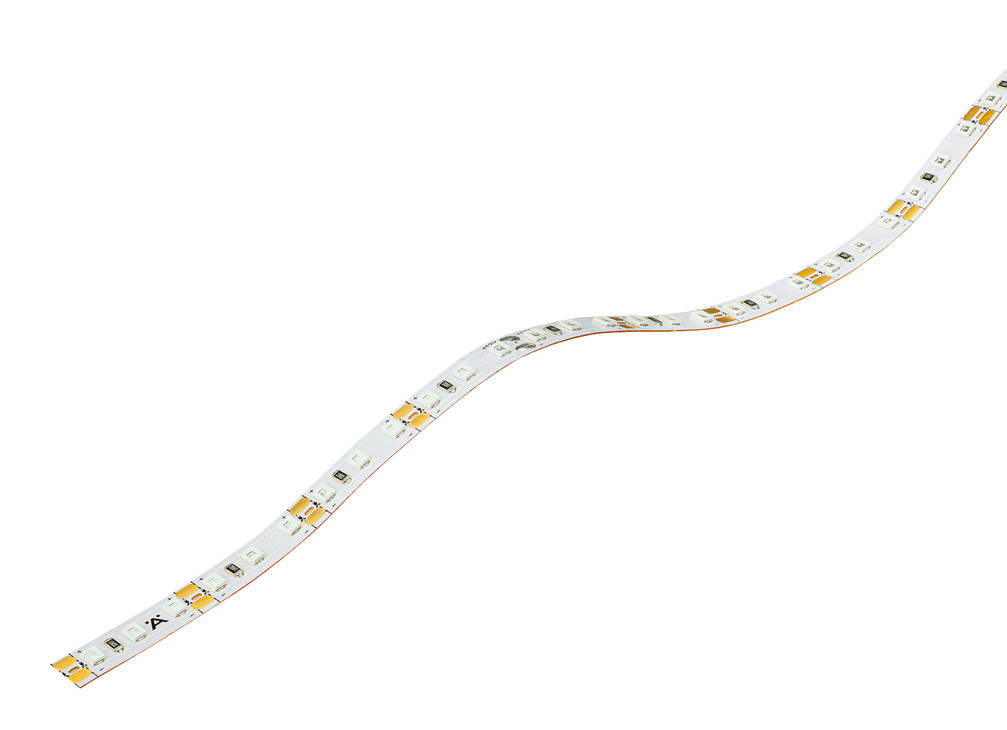

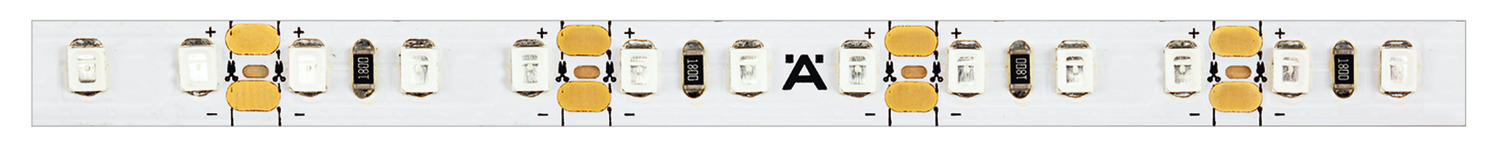

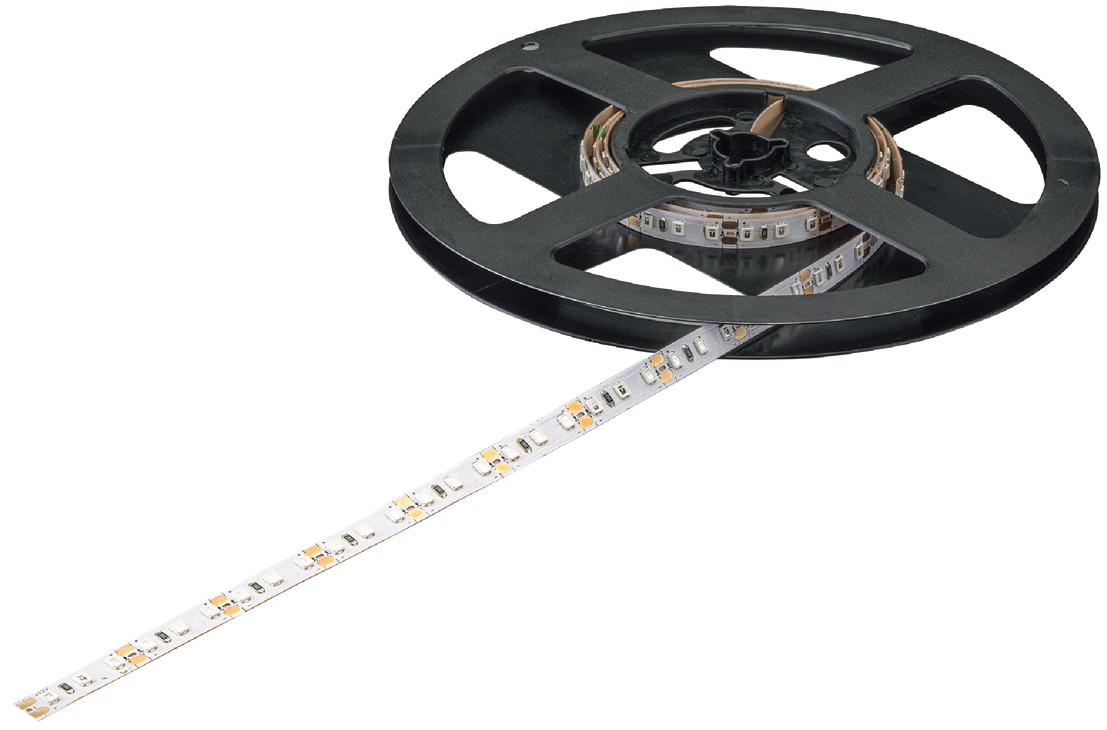

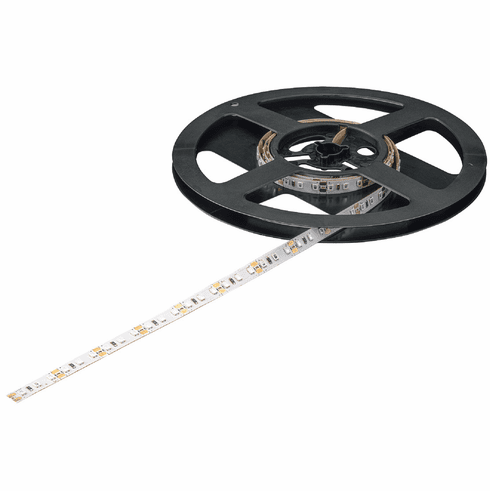

  Product Title: Flexible Strip Light, Häfele Loox5 LED 2068, 12 V, Colored, 8 mm, 120 LEDs/ m, 9.6 W/ m, Blue 2700 K, supplied length 5 m

  Category: Flexible Strip Light, Häfele Loox5 LED 2068, 12 V, Colored, 8 mm, 120 LEDs/ m, 9.6 W/ m

  Item Details …

  - Nominal voltage : 12.00 V

  - Wattage/m : 9.60 W

  - Max. strip length (visual) : 3.50 m

  - Strip length : 5.00 m

  - Dimmable : yes

  - Area of application : All furnishings, Ambient light, Bars

  - Material : Plastic

  - Strip width : 8.00 mm

  - Strip height : 1.30 mm

  - Section length : 25.00 mm

  - Contact surface length : 4.00 mm

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Area of application : ---For universal use in furniture

  - Order reference

  - Please order lead separately.

  - Aluminum profile is recommended from 9.6 W/ m.


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Loox Strip Lights Mounting Instructions

  Safety Notes for LED Strip Lights

  Hafele_Lighting_2024|Page 25

  Hafele_Lighting_2024|Page 35



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), AWG 18 (choose one):


  • Also for constant current strip lights, Length: 100 mm (4"), 5 A/18, 12V Also for constant current strip lights, Length: 2000 mm (78 3/4"), 5 A/18, 12V Also for constant current strip lights, Length: 500 mm (19 11/16"), 5 A/18

    833.93.736 833.95.700 833.95.701

    Click to order Click to order Click to order



  Optional Accessories:



  • Interconnecting lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Corner connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16")
  • Remote control, Häfele Connect Mesh
  • Wall mounted push button, Häfele Connect Mesh
  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
