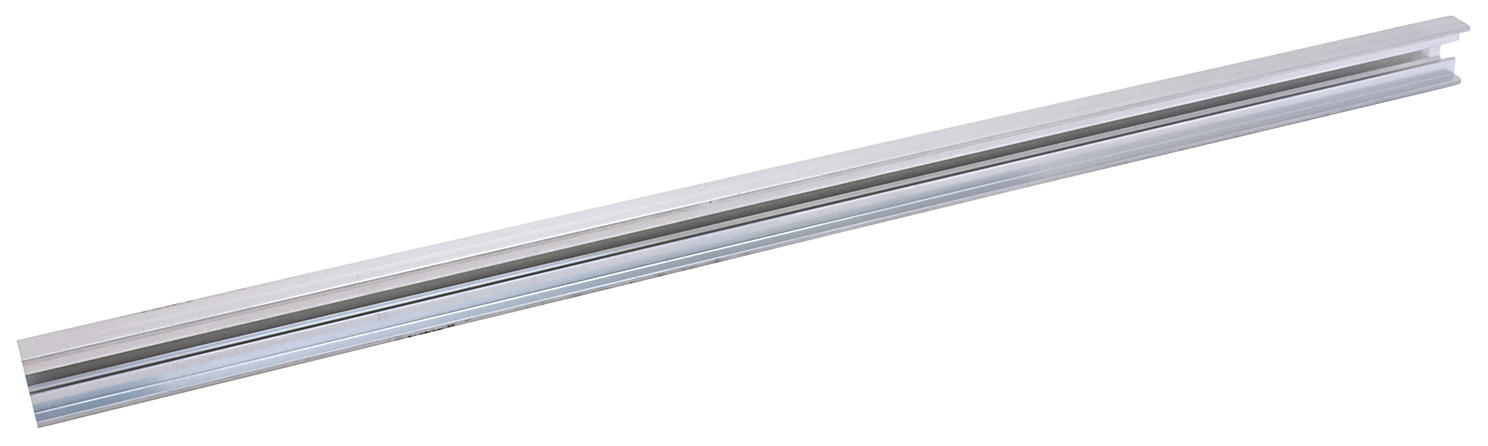

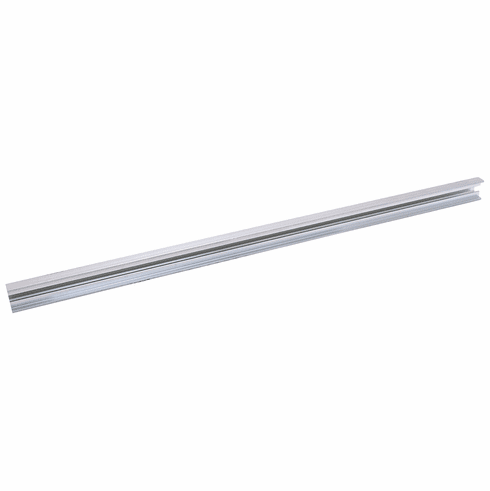

Hafele 833.74.894 Floating Shelf Extrusion, for 283.33.941
, 83374894, 833-74-894 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 833.74.894
Product Title: Floating Shelf Extrusion, for 283.33.941,
Category: Floating Shelf Extrusion, for 283.33.941,
Item Details …
- Proper routing for the shelf support and rail on rear edge of the panel will serve as an anti-tip feature when shelf is mounted. Applying a small amount of silicone adhesive will help secure the shelf support to the panel.
- Provides strength and stability over long spans

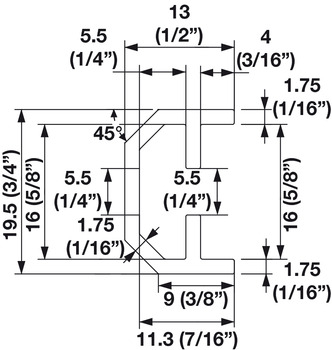

- Height : 19.50 mm
- Load bearing capacity : 110 lbs.
- Installation : Screw mounted
- Area of application : Ideal for floating shelves combined with shelf support
- Width : 13.00 mm
- Installation reference : Attaches to stud walls with #10 Pan head screwCan be cut and drilledData Sheet
Product Resources
Required Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:
Shelf Support, with Inclination Adjustment (choose one):undefined 283.33.941 Click to order
Hardware, for Floating Shelf System (choose one):undefined 020.92.761 Click to order
