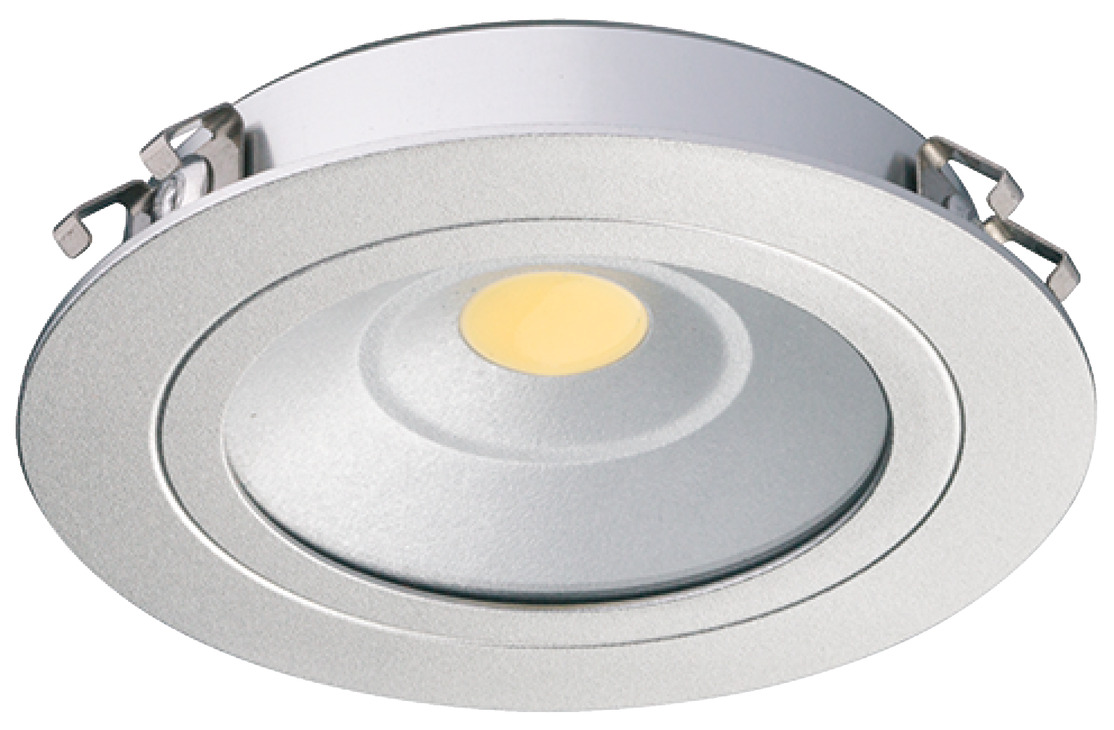

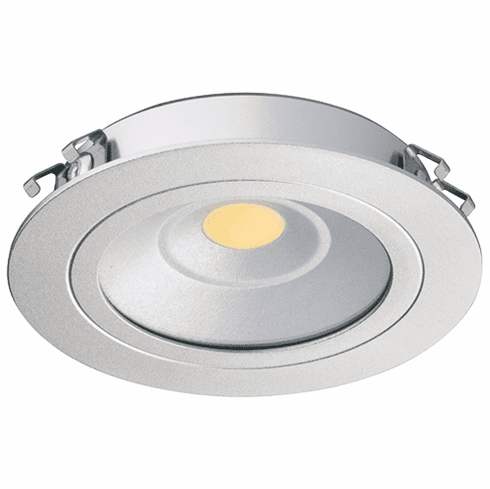

Hafele 833.75.064 LOOX LED 24 volt 3010 CRI 90 round recessed 3.25 watt 4000K aluminum silver anodized 65 x 12mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.75.064

  Product Title: Recess/Surface Mounted Down Light, Loox LED 3010, 24 V, Drill hole ?: (2 3/8") 60, Light color: Cool white 4000 K

  Category: Recess/Surface Mounted Down Light, Loox LED 3010, 24 V, Drill hole ?: (2 3/8") 60

  Item Details …

  - Dimmable only with Loox driver

  - Bright, even luminosity

  - 3 installation options

  - CRI 90 lights are Title 24 Compliant

  - CRI 90 lights offer more vibrant, true color rendering than lower CRI products

  - Nominal voltage : 24.00 V

  - Wattage : 3.25 W

  - Drill hole ุ : 60.00 mm

  - Housing color/finish : silver colored, anodized

  - Model : LED 3010

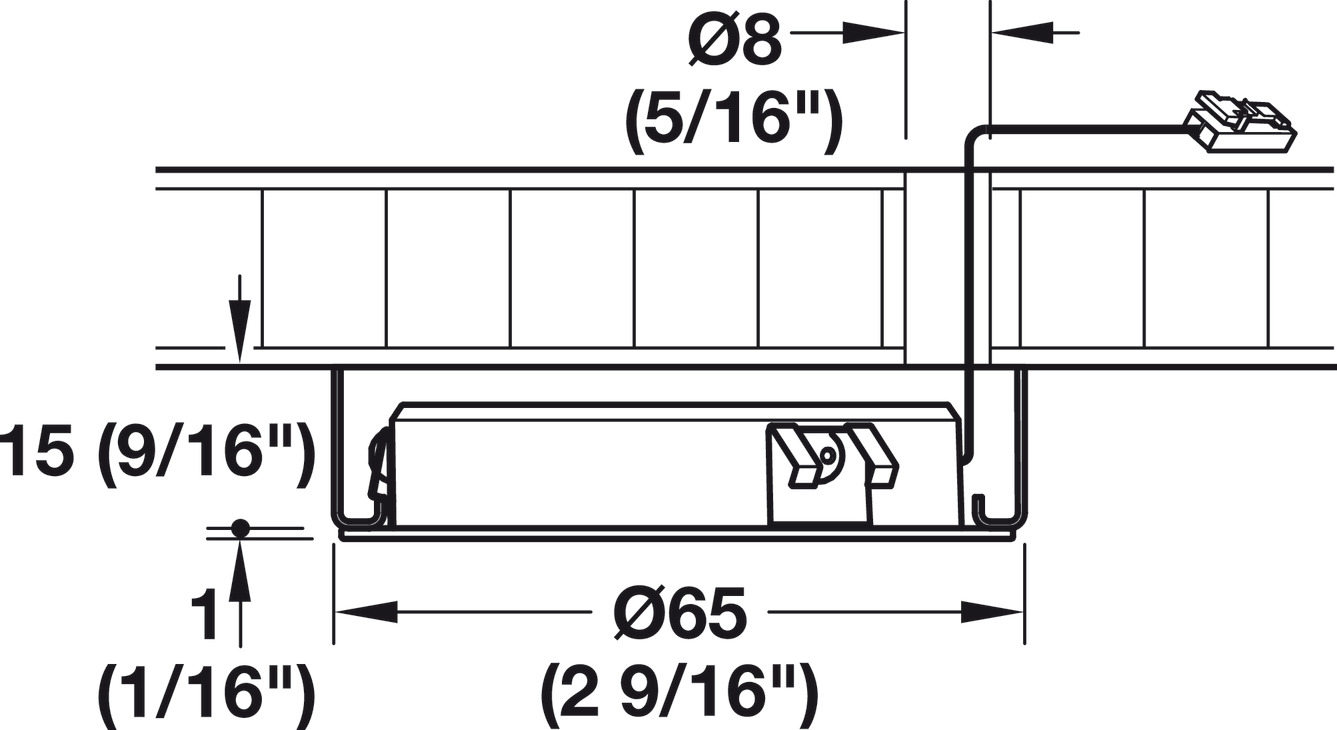

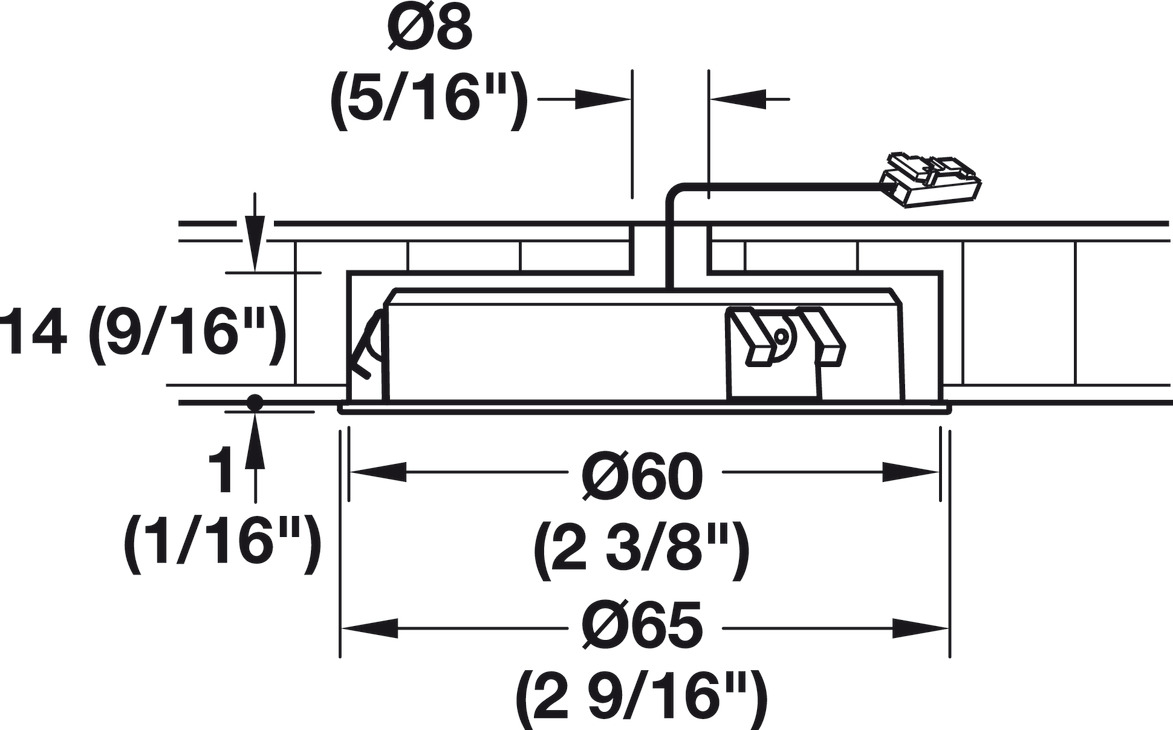

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : Cannot be dimmed

  - Version : High light intensityHomogeneous illuminationWith frosted replacement glass

  - Energy efficiency class :

  - Drill hole ุ : 2 3/8"

  - Height (inch) : 17/32"

  - Cable length : 78 3/4"

  - Dimmable : yes

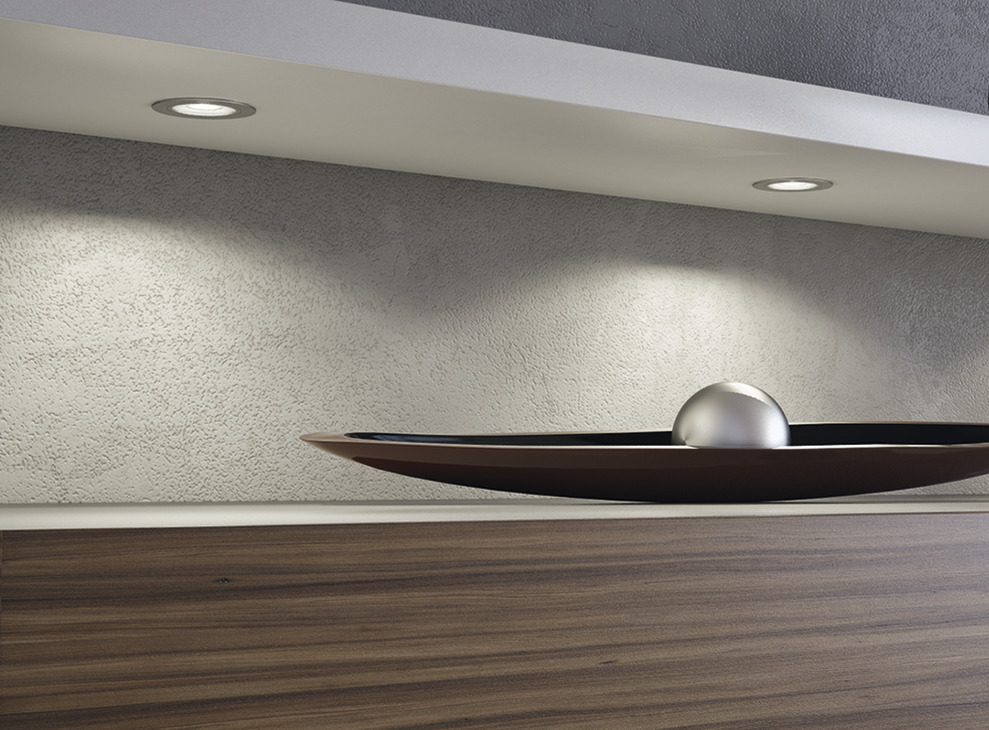

  - Area of application : For display cabinets, shelving units and shelves

  - Housing material : Aluminum

  - Diffuser material : Glass

  - Diffuser color/finish : clear, matt

  - Energy efficiency class : A+

  - Degree of protection : IP20

  - Cable length : 2,000.00 mm


  Additional Information …

  Cannot be dimmed

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Loox – Electrical Code Compliance



• Required Products & Optional Accessories

  Optional Accessories:



  • Surface Mounted Ring, for Loox LED 3010
  • Housing, for Surface Mounting
  • Distributor, Hไfele Connect Mesh 24 V 2-pin (monochrome)
