Hafele 833.75.131 LOOX LED 3039, 24V, 3W, puck light, 2700-5000K, multi-white,65mm x 12mm, silver, 83375131, 833-75-131Zoom

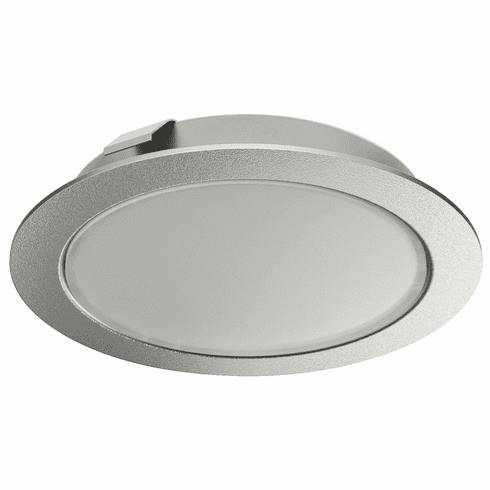

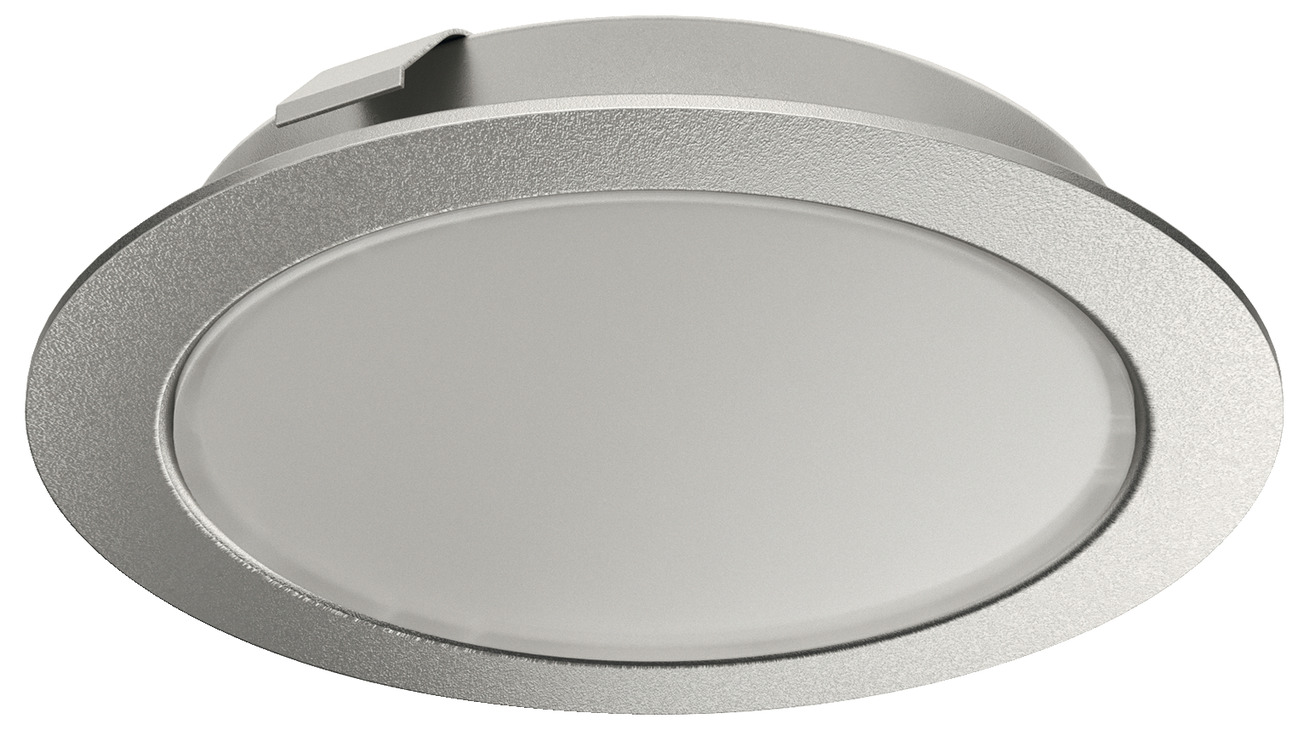

Hafele 833.75.131 Recess/Surface Mounted Downlight, Round, Multi-White, Loox LED 3039, 24 V Silver, light color: Warm white 2700 K to cool white 5000 K,

$27.70$34.62You Save: $6.92 (20%)
Item# Hafele-833-75-131
Availability: in stock

Product Information

  • Description

    Manufacturer: Hafele
    Item: 833.75.131

    Product Title: Recess/Surface Mounted Downlight, Round, Multi-White, Loox LED 3039, 24 V, Drill hole ?: 55 mm (2 3/16"), Silver, light color: Warm white 2700 K to cool white 5000 K

    Category: Recess/Surface Mounted Downlight, Round, Multi-White, Loox LED 3039, 24 V, Drill hole ?: 55 mm (2 3/16"), Energy efficiency class G

    Item Details …

    -     The light color can be adjusted continuously from warm white to cool white

    - High-quality metal housing

    - Color temperature : 2700?–?5,000 K

    - Light color : Warm white to cool white

    - Luminous flux : 258 lm

    - Nominal voltage : 24.00 V

    - Wattage : 3.00 W

    - Luminous efficacy : 85 lm/W

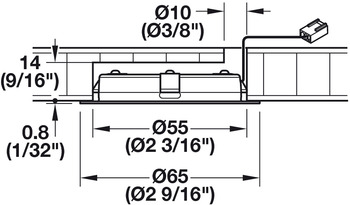

    - Drill hole Ø : 55.00 mm

    - Model : LED 3039

    - Installation : For mounting in drilled hole and for clamp fixing

    - Installation reference : The light color can be adjusted continuously from warm white to cool whiteHigh-quality metal housing

    - Version : Round, multi-white

    - Energy efficiency class : G

    - Drill hole Ø : 2 3/16"

    - Dimmable : yes

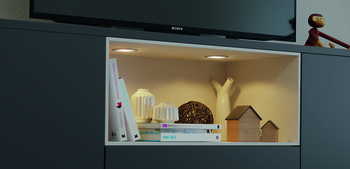

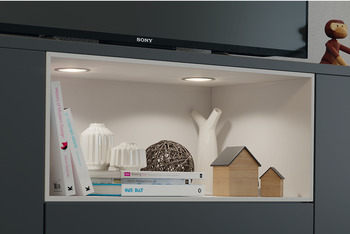

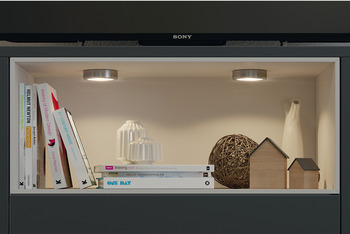

    - Area of application : As ambient light in furniture

    - Housing material : Steel

    - Weighted energy consumption : 3.00 kWh/1000 h

    - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

    - Cable length : 2,000.00 mm

    - Order reference

    - Color control via 6-way distributor Häfele Connect Mesh with multi-white adapter and remote control or smartphone. Please order separately.

    - Installation of the free Häfele Connect Mesh app is required.

    - Supplied with:

    - 2 m (78 3/4”) lead


    Additional Information …

    Color temperature can be adjusted with multi-white color mixer with remote control. Max. 10 color mixers can be freely combined with 1–10 remote controls within a range of 15 m per installation.The light is connected to the Loox multi-white mixer 24 V with a multi-white lead. The lead of the multi-white mixer can be extended with standard Loox leads.It is not recommended to control multi-white LEDs and multi-white silicone strip lights jointly with one multi-white color mixer as the light colors vary slightly due to the silicone coating.Alternative control: Häfele Connect with BLE box and app

  • Data Sheet

  • Product Resources

  • Required Products & Optional Accessories

    Note: Add the current product in cart before ordering required products below ...

    Required Products:

    Adapter, Häfele Loox5, multi-white, for Häfele Connect Mesh 6-way distributor (choose one):
    • For Häfele Connect Mesh 6-way distributor, Voltage 24 V, max. connected wattage 90 W833.77.830Click to order


    Optional Accessories:

    • Surface Mounted Ring, for Loox LED 2020/2047/2048/3038/3039
    • Remote control, Häfele Connect Mesh
    • Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome)
