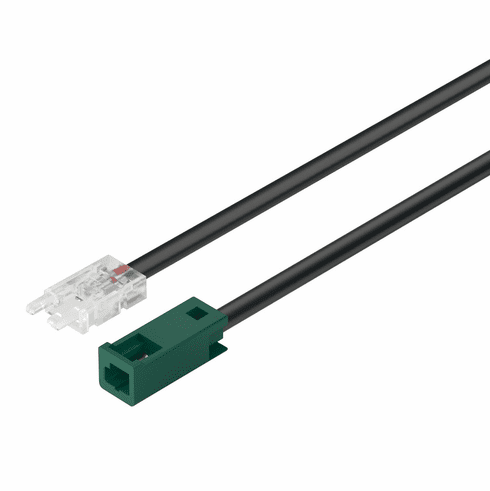

Hafele 833.75.748 Loox5 Lead ribbon, female, 8 mm, 24 volts, 0.1 m
Product Information
Description
Manufacturer: Hafele
Item: 833.75.748
Product Title: Extension lead, Häfele Loox5 from LED-Band monochrome 8 mm 12 V, AWG 18, Clip width 10 mm, Length: 100 mm
Category: Extension lead, Häfele Loox5 from LED-Band monochrome 8 mm 12 V, AWG 18, Clip width 10 mm, Length: 100 mm
Item Details …
- Allows connection of several linear lights during final assembly
- Color system : monochrome or MW 2-wire-Technology
- Input ports : 1 x Clip, Loox5 LED strip light 8 mm monochrome
- Connections : 1 x socket, Loox5 2-pin 24 V
- Nominal voltage : 24.00 V
- Cable length : 100.00 mm
- Clip width : 10.00 mm
- Current carrying capacity : 5.00 A
- Wire cross section AWG : 18.00
- Material : Plastic
- Number of leads : 2.00
- Socket drill hole Ø : 13.00 mm
- Clip drill hole Ø : 12.00 mm
- Installation reference : Conceal cable guide in the furniture or in a cable channel!
- Area of application : Production of an LED strip light with a connecting socket at the end of the strip, e.g. with individually manufactured linear lights in an aluminium profile. The combination of several lights into a combined switched strip light takes place using the practical plug-in connection during final assembly of the furniture.
- Supplied with:
- 1 extension lead socket/clip
Additional Information …
The length of the extension cable is always 100 mm. Please vary the lead length as required.Data Sheet
